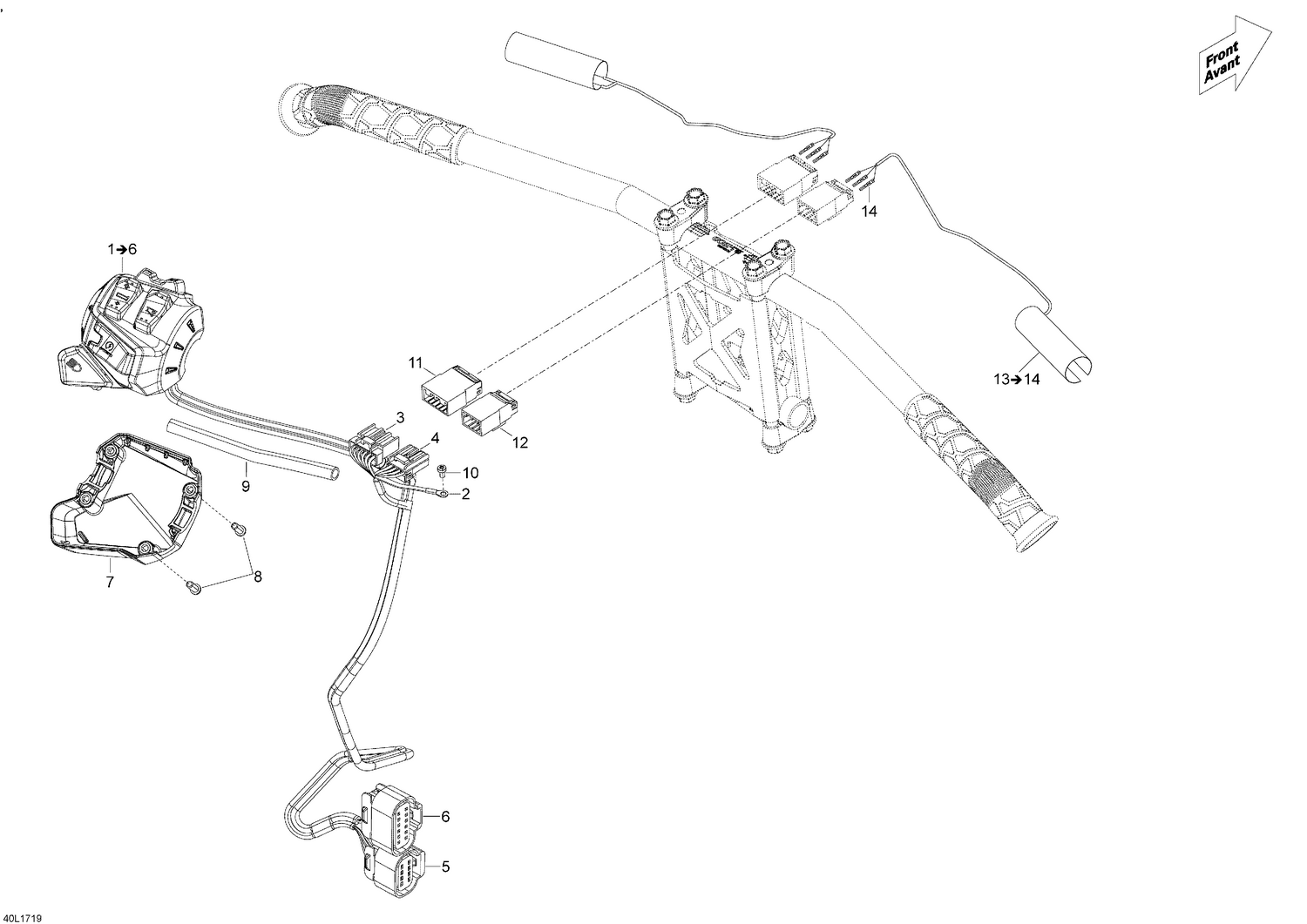

10- Steering Wiring Harness
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 515175504 | Ring Terminal |
| 3 | 515175231 | Female Terminal |
| 3 | 515175543 | Female Housing, 6 Circuits |
| 4 | 515175231 | Female Terminal |
| 4 | 515175845 | Female Housing, 4 Circuits |
| 5 | 710001928 | Female Housing, 8 Circuits |
| 6 | 710001930 | Female Housing, 12 Circuits |
| 7 | 515177147 | Housing Plate |
| 8 | 250000671 | Torx Screw |
| 9 | 415129879 | Protector Tube |
| 10 | 250000690 | Forming Screw M5 x 10 |
| 11 | 515175662 | Male Housing, 6 Circuits |
| 12 | 515175846 | Male Housing, 4 Circuits |
