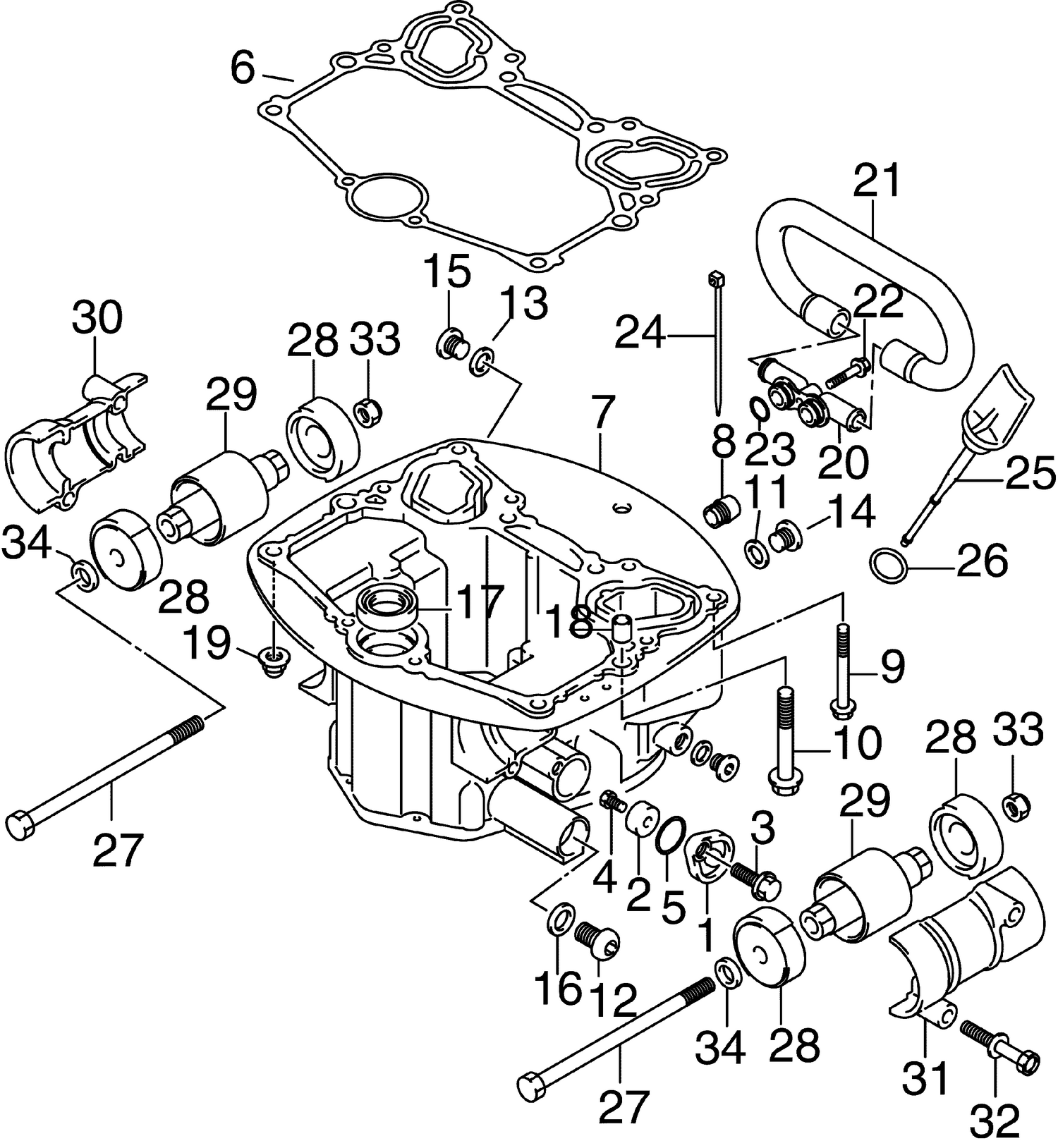

| Ref | Part Number | Description |
|---|
| 1 |
5034866 |
ANODE COVER |
| 3 |
5033472 |
BOLT (8X25mm) |
| 5 |
5035305 |
O RING |
| 7 |
5036936 |
PAN, Oil |
| 9 |
5034781 |
BOLT, Cylinder head set (8X65) |
| 10 |
5034785 |
BOLT, ENG SET NO,1 (L:70mm) |
| 11 |
5036937 |
GASKET, Water plug |
| 12 |
5034438 |
PLUG This part replaces 5034465. |
| 13 |
5031863 |
GASKET |
| 14 |
5030525 |
PLUG |
| 15 |
5030525 |
PLUG |
| 16 |
5030465 |
GASKET |
| 17 |
5036938 |
SEAL, Driveshaft upper oil |
| 18 |
5034136 |
PIN |
| 19 |
5036939 |
NUT, Crankcase stud bolt |
| 20 |
5036940 |
PIPE, Exhaust |
| 21 |
5036941 |
HOSE, Exhaust |
| 22 |
5036942 |
BOLT (6X30) |
| 23 |
5030538 |
O RING |
| 25 |
5036943 |
GAUGE, Oil level |
| 26 |
5036944 |
O RING, Oil level gauge |
| 27 |
5037142 |
BOLT, Upper mount |
| 28 |
5037143 |
MOUNT, Upper thrust |
| 29 |
5037144 |
MOUNT, Upper |
| 30 |
5037145 |
COVER, Upper mount - Stbd |
| 31 |
5037146 |
COVER, Upper mount - Port |
| 32 |
5037147 |
BOLT, Upper mount cover |
| 33 |
*5030054 |
NUT |
