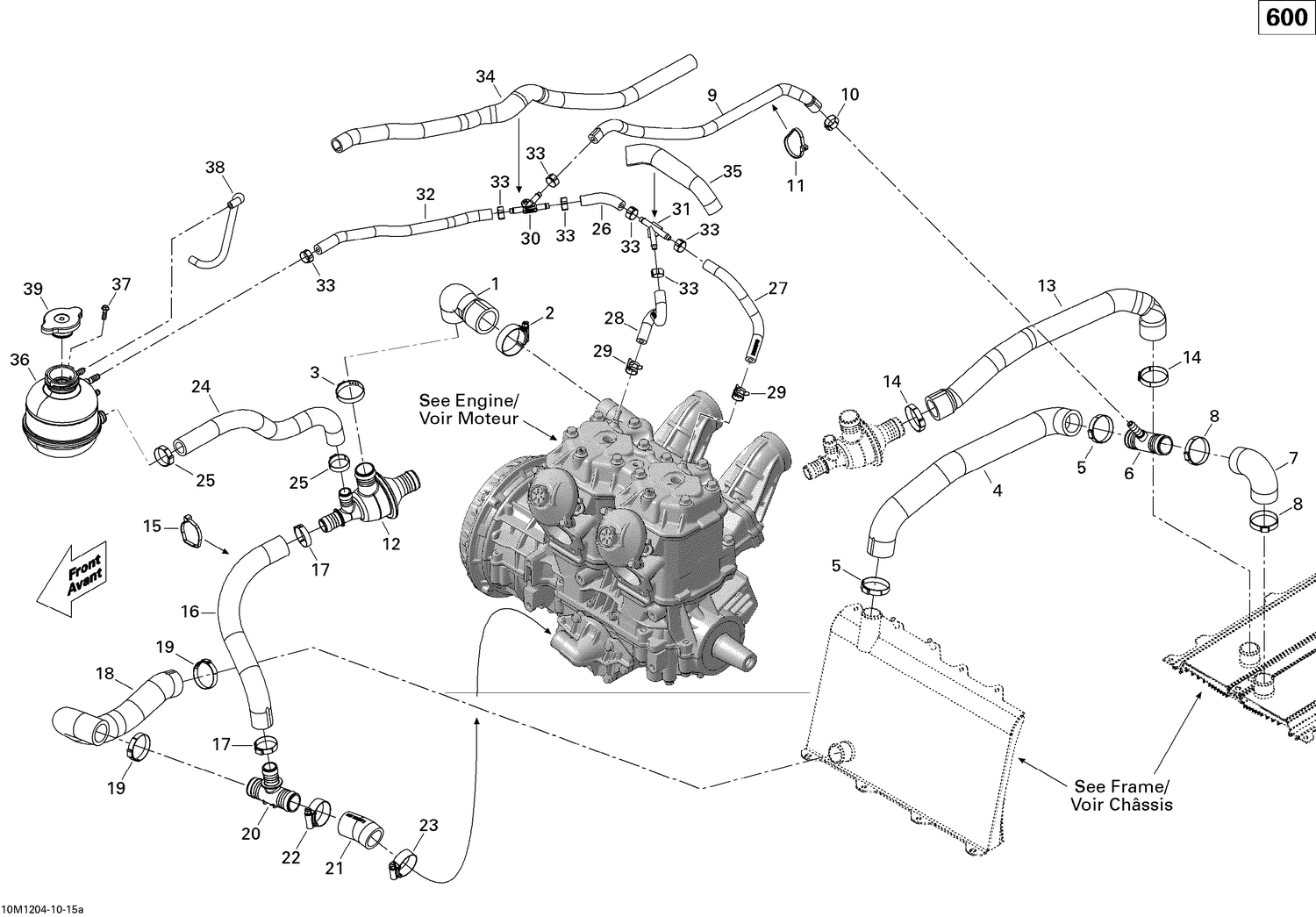

| Ref | Part Number | Description |
|---|
| 1 |
509000678 |
Engine Outlet Hose |
| 2 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 3 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 4 |
509000670 |
Radiator Hose |
| 5 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 6 |
509000510 |
T-Fitting |
| 7 |
509001066 |
Radiator Hose This part replaces 509000671. |
| 8 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 9 |
509000502 |
Bleeder Hose |
| 10 |
293650047 |
Crimp Clamp, 15.3-706R |
| 11 |
414115200 |
Tie-Rap 180 mm |
| 12 |
509000499 |
Thermostat Housing |
| 13 |
509000679 |
Thermostat Outlet Hose |
| 14 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 15 |
293750008 |
Tie Wrap 368 mm |
| 16 |
509000672 |
Bypass Hose |
| 17 |
293650099 |
Crimp Clamp |
| 18 |
509000673 |
Radiator Hose |
| 19 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 20 |
509000372 |
T-Fitting |
| 21 |
509001067 |
Engine Inlet Hose This part replaces 509000675. |
| 22 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 23 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 24 |
509000676 |
Filling Hose |
| 25 |
509000442 |
Oeticker Gear Clamp, 25.6-706R |
| 26 |
509000775 |
Hose |
| 27 |
509000769 |
Bleeder Hose |
| 28 |
509000768 |
Bleeder Hose |
| 29 |
293650210 |
Spring Clamp |
| 30 |
293710140 |
Y-Fitting |
| 31 |
293710059 |
Y-Fitting |
| 32 |
219704416 |
Was 415129508 Bleeder Hose |
| 33 |
293650046 |
Oetiker Clamp |
| 34 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 35 |
513033231 |
Protector Tube, 16 mm |
| 36 |
509000368 |
Coolant Tank |
| 37 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 38 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
