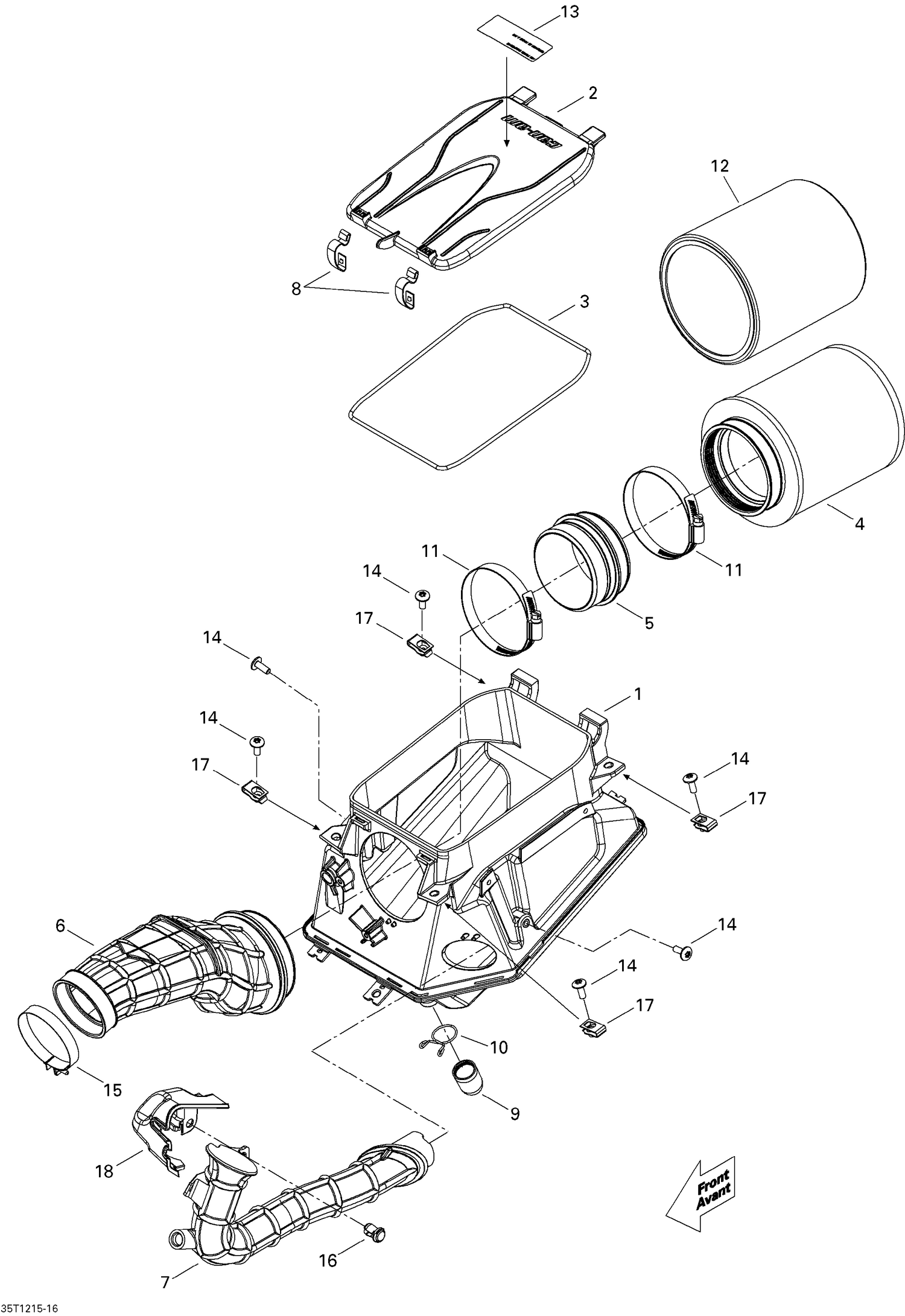

| Ref | Part Number | Description |
|---|
| 1 |
707800242 |
AIR SILENCER - Call your local BRP dealership |
| 2 |
707800215 |
Air Box Cover |
| 3 |
707800240 |
GASKET - Call your local BRP dealership |
| 4 |
707800216 |
Air Filter |
| 5 |
707800257 |
ADAPTOR - Call your local BRP dealership |
| 6 |
707800218 |
INTAKE ADAPTOR - Call your local BRP dealership |
| 7 |
707800258 |
FRONT AIR INTAKE - Call your local BRP dealership |
| 8 |
707800249 |
Cover Bracket |
| 9 |
707800080 |
Drain Tube |
| 10 |
707800278 |
Retainer Clip |
| 11 |
204000079 |
Tridon Clamp |
| 12 |
707800293 |
INTAKE PRE-FILTER - Call your local BRP dealership |
| 13 |
707800373 |
Air Filter Maintenance Decal |
| 14 |
250000223 |
Torx Screw M6 X 16 |
| 15 |
293650159 |
GEMI CLAMP - Call your local BRP dealership |
| 16 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 17 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
