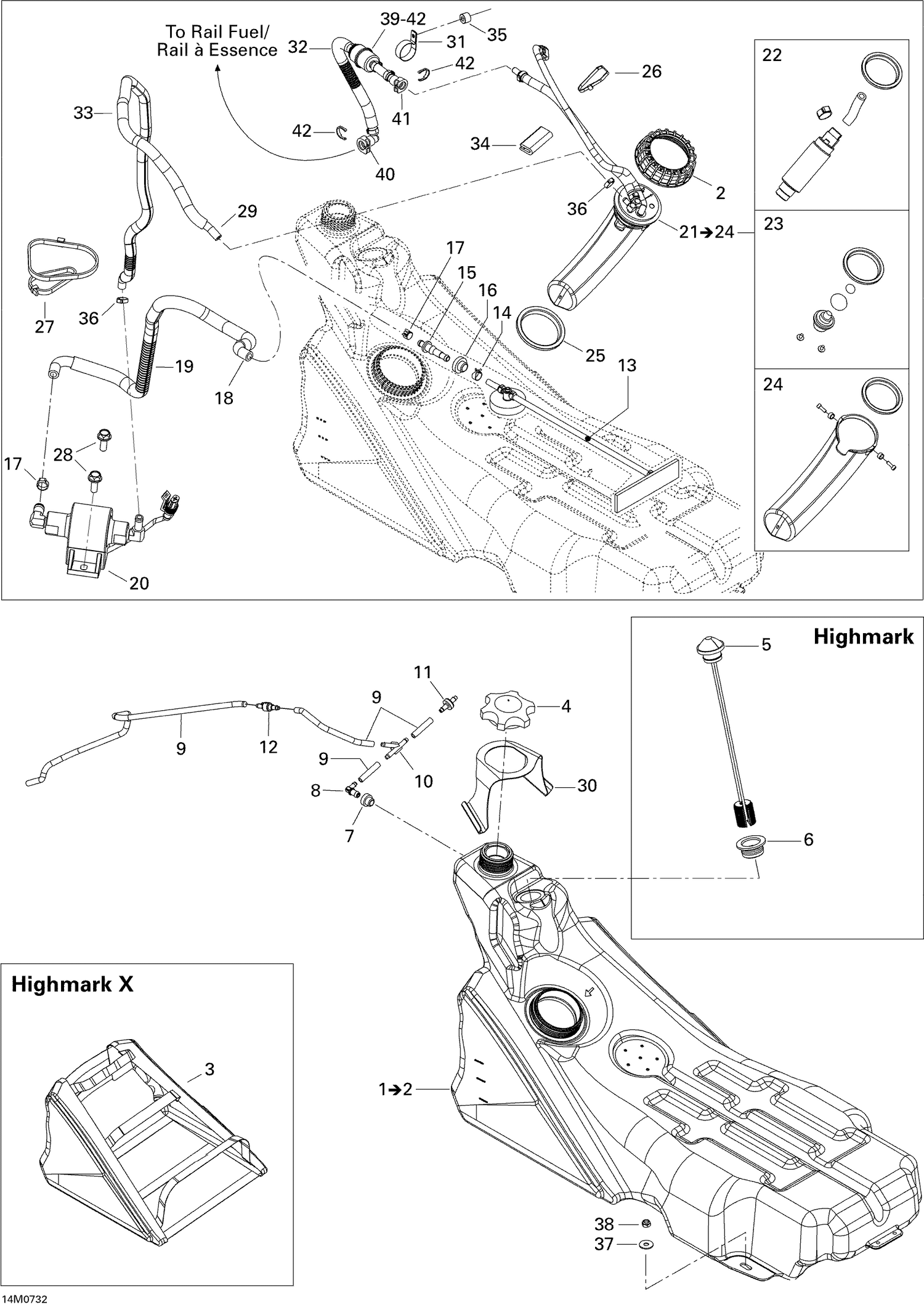

02- Fuel System
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 513033040 | Nut, Fuel Pump Module |
| 4 | 513033722 | Fuel Tank Cap 91 Octane This part replaces 513033024. |
| 7 | 513032908 | Grommet |
| 8 | 414580700 | Male Connector |
| 9 | 219704410 | Polyurethane Hose 10000Mm Long |
| 10 | 293710059 | Y-Fitting |
| 11 | 275500398 | Check Valve |
| 12 | 275500505 | Check Valve |
| 13 | 513033172 | FUEL HOSE ASS. - Call your local BRP dealership |
| 14 | 513033010 | Norma Spring Clamp |
| 15 | 414872700 | Male Connector |
| 16 | 707800347 | Grommet This part replaces 570273900. |
| 17 | 293650053 | Crimp Clamp |
| 18 | 513033148 | Hose |
| 19 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 20 | 513033328 | FUEL PUMP - Call your local BRP dealership |
| 22 | 861302700 | PUMP KIT - Call your local BRP dealership |
| 23 | 861302100 | REGULATOR KIT - Call your local BRP dealership |
| 24 | 861302800 | Réservoir Kit |
| 25 | 513033039 | SEAL - Call your local BRP dealership |
| 26 | 414115200 | Tie-Rap 180 mm |
| 27 | 293750008 | Tie Wrap 368 mm |
| 28 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 29 | 219704422 | HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership |
| 30 | 513033066 | SUPPORT - Call your local BRP dealership |
| 31 | 513033047 | Open Clamp |
| 32 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 33 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 34 | 219704353 | Was 271000110 Protection Trim |
| 35 | 503189448 | SPACER - Call your local BRP dealership |
| 36 | 293650047 | Crimp Clamp, 15.3-706R |
| 37 | 234082410 | Flat Washer 8 mm |
| 38 | 232581414 | Hex. Elastic Stop Nut M8 |
| 40 | 415128965 | Quick Fitting 90° Ass'y |
| 41 | 709000125 | Female Quick Fitting Ass'y |
