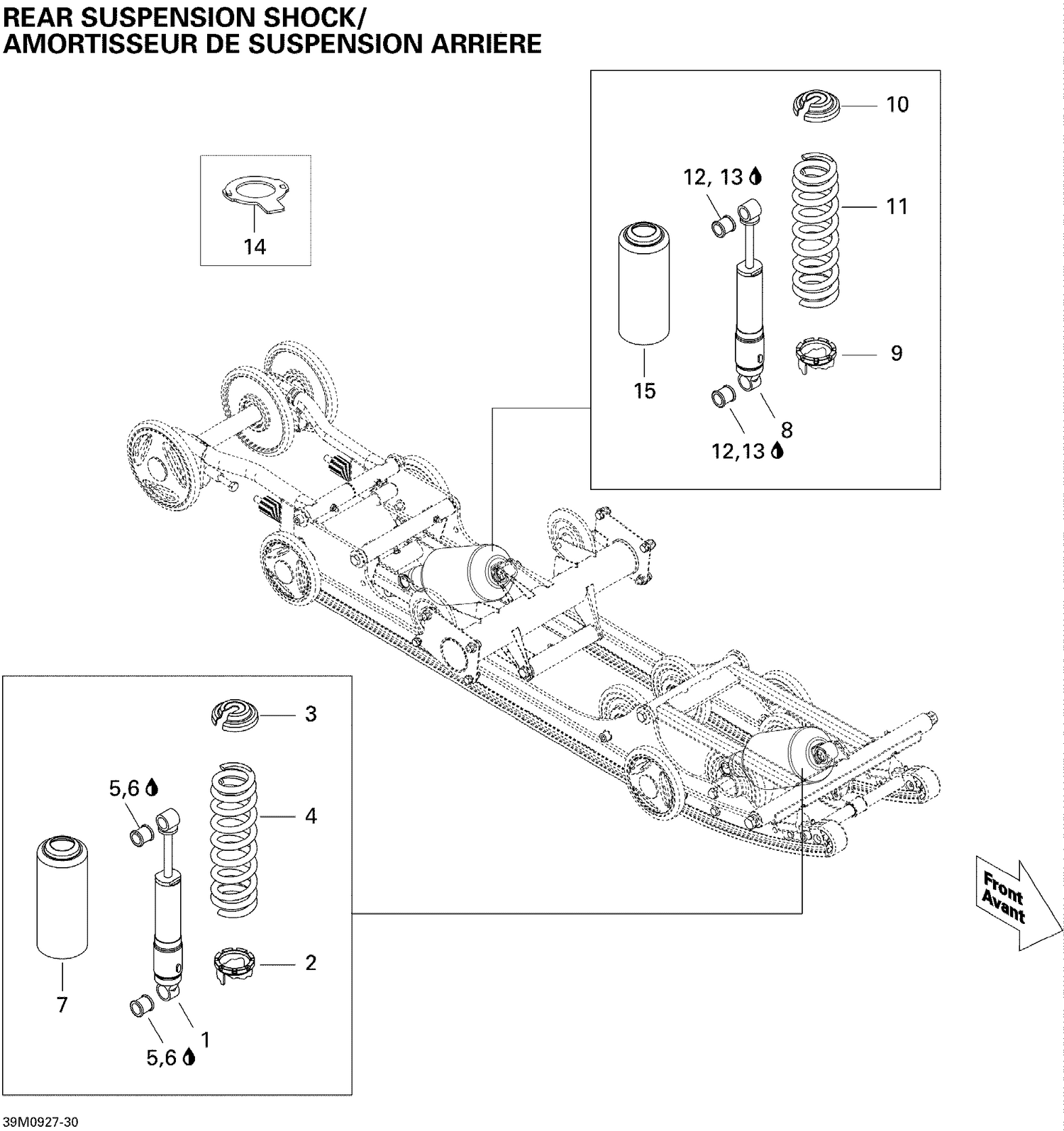

| Ref | Part Number | Description |
|---|
| 1 |
605623015 |
Front Shock Ass'y |
| 2 |
M230078 |
CAM - Call your local BRP dealership |
| 3 |
230076 |
Guide spring This part replaces M230076. |
| 4 |
605625010 |
Spring |
| 5 |
31094 |
Cushion This part replaces M31094. |
| 6 |
M32161 |
Glue Loctite 641/ 50ml |
| 7 |
M5346754 |
Shock Protector |
| 8 |
605623016 |
Rear Shock Ass'y |
| 9 |
M230078 |
CAM - Call your local BRP dealership |
| 10 |
230076 |
Guide spring This part replaces M230076. |
| 11 |
605625013 |
Rear Spring |
| 12 |
31094 |
Cushion This part replaces M31094. |
| 13 |
M32161 |
Glue Loctite 641/ 50ml |
| 14 |
605348748 |
ARM ADJUSTING ASS'Y - Call your local BRP dealership |
