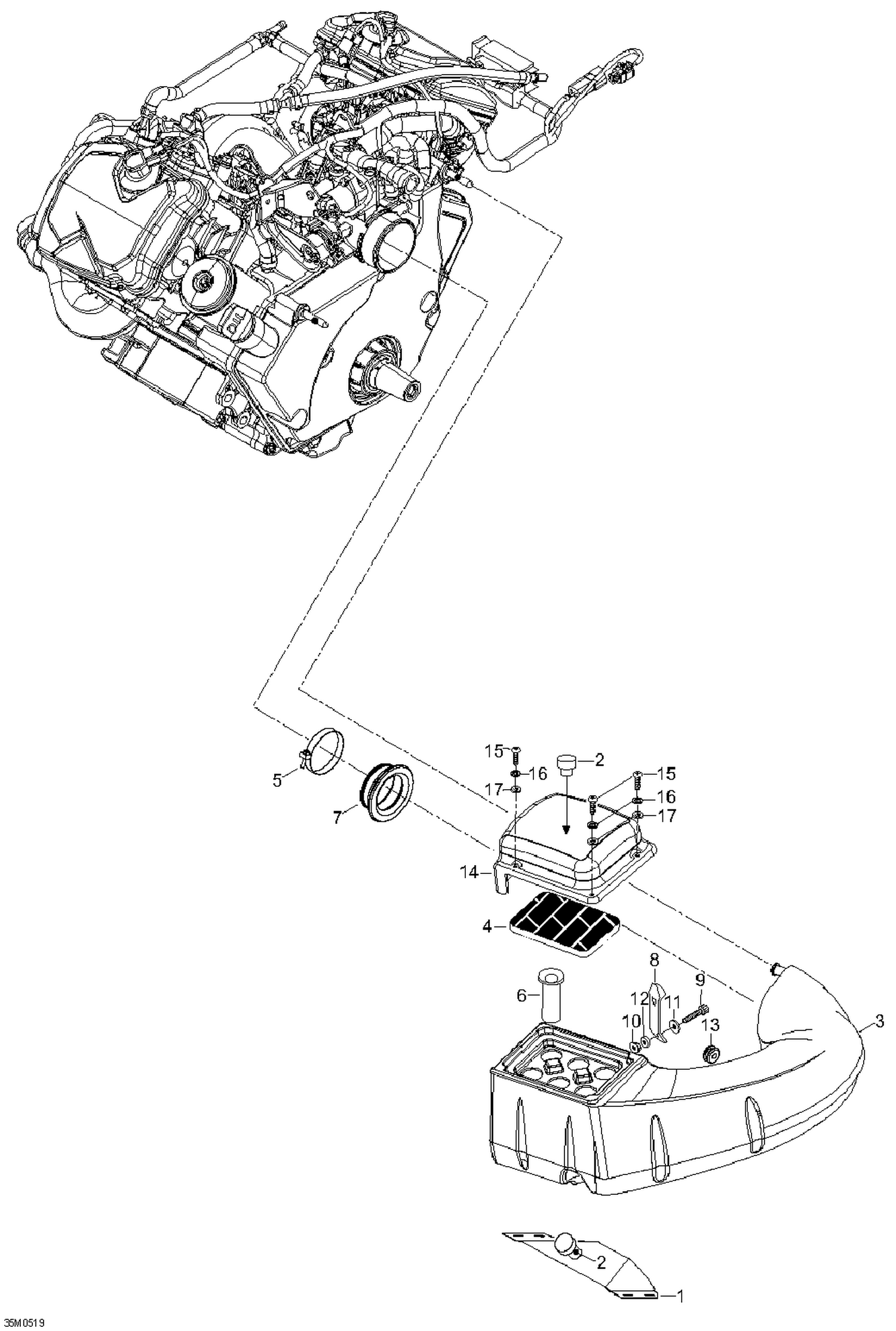

02- Air Intake System
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605351370 | Air Intake Support |
| 2 | 570044700 | Rubber Bumper |
| 3 | 605150516 | Air Intake |
| 4 | 605350180 | Filter |
| 5 | 508000382 | GEMI CLAMP - Call your local BRP dealership |
| 6 | 5444445 | INLET TUBE - Call your local BRP dealership This part replaces M5444445. |
| 7 | 508000254 | INTAKE ADAPTATOR - Call your local BRP dealership |
| 8 | M531955 | Hood Latch |
| 9 | 207162544 | Hex. Screw M6 X 25 |
| 10 | 232561414 | Elastic Stop Nut M6 |
| 11 | M543392 | Washer |
| 12 | M543417 | Sleeve |
| 13 | 570065500 | GROMMET - Call your local BRP dealership |
| 14 | 605250565 | AIR INTAKE COVER - Call your local BRP dealership |
| 15 | M40070 | Screw |
| 16 | M20013 | Lock Washer |
