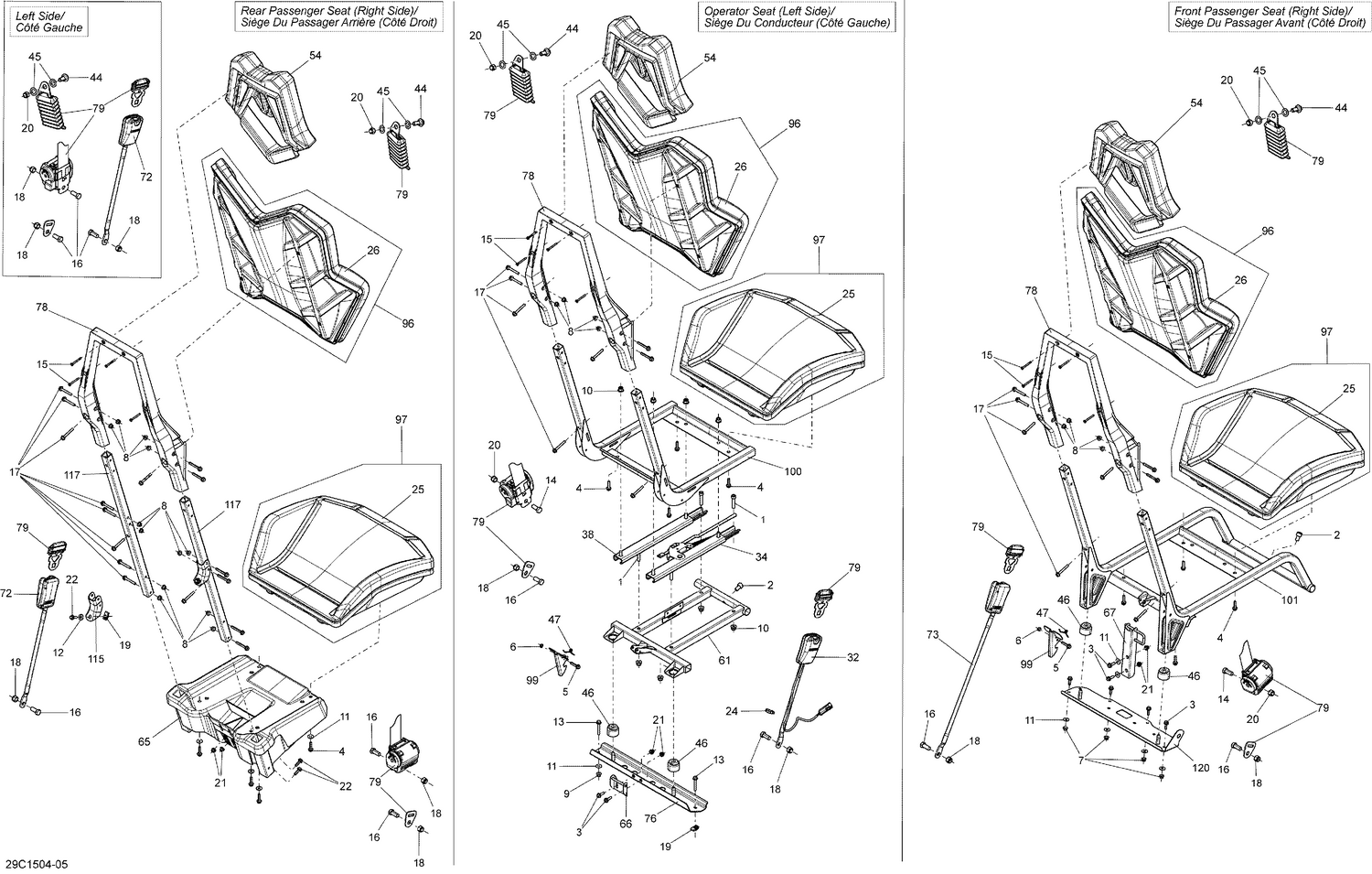

09- Seat _29C1504
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 2 | 205501644 | Socket Screw M10 X 16 |
| 3 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 4 | 207562544 | Hex. Flange Screw M6 X 25 |
| 5 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 6 | 232561600 | Hex. Elastic Stop Nut M6 |
| 7 | 233061414 | Hex. Flange Nut M6 |
| 8 | 233161464 | Hex. Elastic Flange Nut M6 |
| 9 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 |
| 11 | 234062670 | Stainless Steel Flat Washer |
| 12 | 234281474 | Conical Spring Washer M8 |
| 13 | 250000213 | Hex. Flange Screw M6 X 1.0 X 45 |
| 14 | 250000521 | Hex. Cap Screw 7/16'' X 1'' |
| 15 | 250000490 | HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership This part replaces 250000490. |
| 16 | 250000521 | Hex. Cap Screw 7/16'' X 1'' |
| 17 | 250000672 | Hex. Flange Screw M6 |
| 18 | 250100135 | Nylon Insert Hex. Lock Nut 7/16-20 |
| 19 | 250100171 | Panel Nut M6 X 1.0 |
| 20 | 250100135 | Nylon Insert Hex. Lock Nut 7/16-20 |
| 21 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 22 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 25 | 708001103 | Seat Cover |
| 26 | 708000675 | Backrest Cover |
| 34 | 708001739 | RH Rail |
| 38 | 708000848 | LH Rail |
| 44 | 708000890 | Safety Belt Screw |
| 45 | 708000891 | Position Washer |
| 46 | 708001671 | Rubber Bumper |
| 47 | 708000921 | Spring |
| 54 | 708001074 | Head Rest |
| 61 | 708001174 | Seat Member |
| 65 | 708001198 | Seat Support |
| 66 | 708001212 | Anchor |
| 67 | 708001213 | Anchor |
| 72 | 708002063 | Rear Passenger Buckle Side This part replaces 708001205. |
| 73 | 708001206 | Passenger Buckle Side |
| 76 | 708001214 | Seat Support |
| 78 | 708001245 | Seat Support |
| 96 | 703500945 | Backrest Ass'y This part replaces 708001316. |
| 97 | 703500943 | Cushion Ass'y This part replaces 708001318. |
| 99 | 708001355 | Seat Latch |
| 100 | 708001356 | Operator Seat Frame |
| 101 | 708001357 | Passenger Seat Frame |
| 115 | 708001474 | Rear Anchor |
| 117 | 708001476 | Side Tube |
