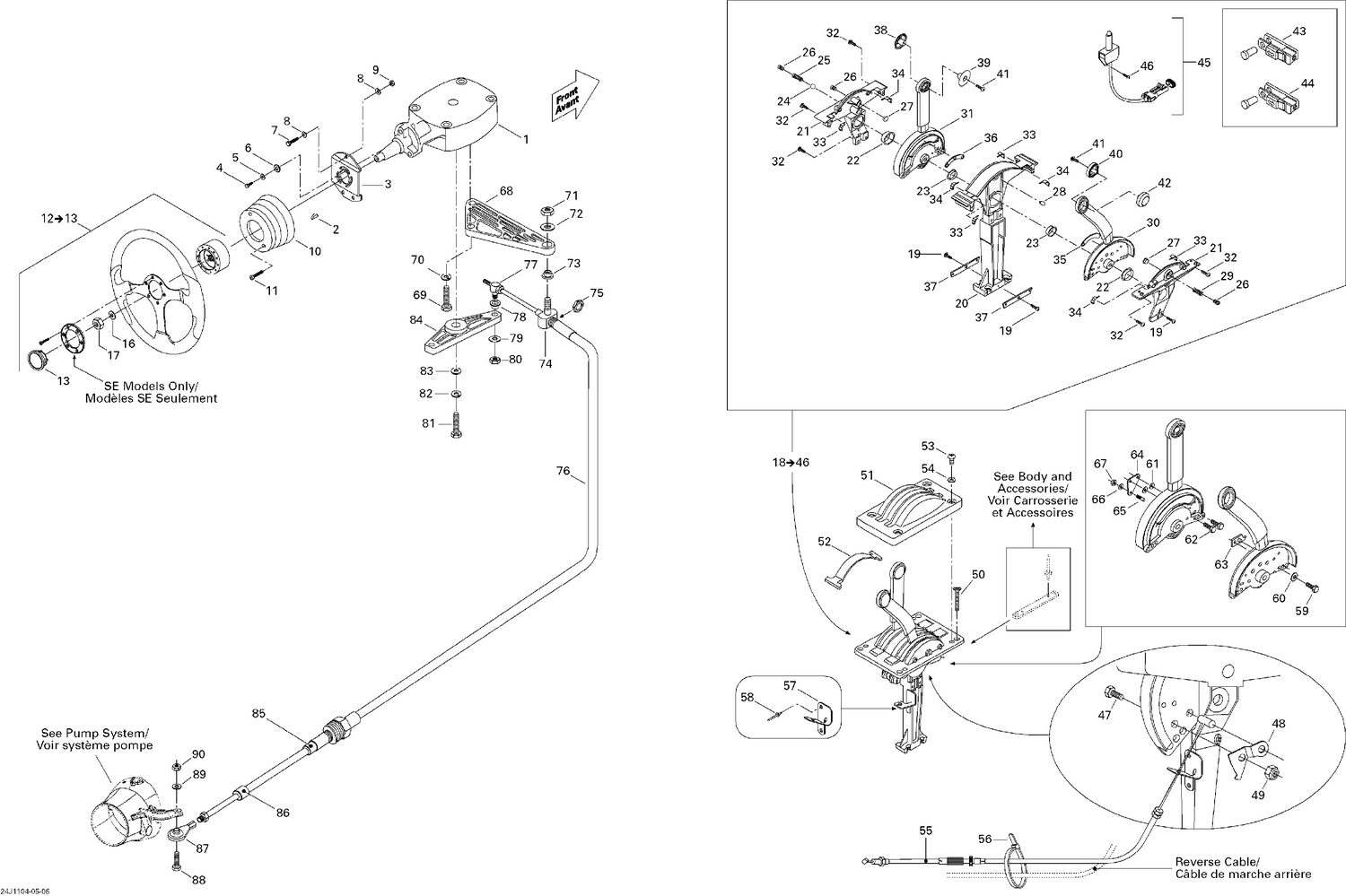

| Ref | Part Number | Description |
|---|
| 1 |
204390244 |
HELM ASS'Y - Call your local BRP dealership |
| 2 |
277000384 |
WOODRUFF KEY - Call your local BRP dealership |
| 3 |
277000383 |
Support |
| 4 |
211000050 |
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership |
| 5 |
234062600 |
Flat Washer M6, Stainless |
| 6 |
234481608 |
Serrated Lock Washer 8 mm |
| 7 |
207164060 |
Hex. Screw M6 X 40 |
| 8 |
234061600 |
Stainless Flat Washer M6 |
| 9 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 10 |
204390030 |
COLLAR, BLACK - Call your local BRP dealership |
| 11 |
204390059 |
SCREW 8-32 X 1-1/4 - Call your local BRP dealership |
| 13 |
204390549 |
CENTER CAP - Call your local BRP dealership |
| 16 |
211200006 |
FLAT WASHER, STAINLESS - Call your local BRP dealership |
| 17 |
211100021 |
LOCK NUT 1/2-20 - Call your local BRP dealership |
| 19 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership |
| 20 |
Not |
Available As Spare Part - LH Frame |
| 21 |
Not |
Available As Spare Part - Half-Case |
| 22 |
277000397 |
BUSHING - Call your local BRP dealership |
| 23 |
277000398 |
BUSHING - Call your local BRP dealership |
| 24 |
277000399 |
BALL - Call your local BRP dealership |
| 25 |
277000400 |
SPRING - Call your local BRP dealership |
| 26 |
277000402 |
CAP SCREW - Call your local BRP dealership |
| 27 |
277000403 |
FRICTION INSERT - Call your local BRP dealership |
| 28 |
277000404 |
BLOCKING PIVOT - Call your local BRP dealership |
| 29 |
277000401 |
SPRING - Call your local BRP dealership |
| 30 |
277000655 |
THROTTLE LEVER - Call your local BRP dealership |
| 31 |
277000414 |
SHIFT LEVER - Call your local BRP dealership |
| 32 |
204100016 |
SCREW M5 X 20 - Call your local BRP dealership |
| 33 |
Not |
Available As Spare Part - RH Water Seal |
| 34 |
277000424 |
LH Water Seal |
| 35 |
277000659 |
THROTTLE LEVER SPACER - Call your local BRP dealership |
| 36 |
277000408 |
Shift Lever Spacer |
| 37 |
204390227 |
RETAINING PLATE - Call your local BRP dealership |
| 38 |
277000417 |
HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership |
| 39 |
277000418 |
HALF-SHIFT HANDLE - Call your local BRP dealership |
| 40 |
277000416 |
HALF-THROTTLE HANDLE - Call your local BRP dealership |
| 41 |
277000419 |
SCREW M3.5 X 25 - Call your local BRP dealership |
| 42 |
277000415 |
HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership |
| 43 |
204390226 |
CLEVIS L26 - Call your local BRP dealership |
| 44 |
204390225 |
CLEVIS L25 - Call your local BRP dealership |
| 45 |
278001195 |
NEUTRAL SWITCH ASS'Y - Call your local BRP dealership |
| 46 |
208630660 |
SCREW M3 X 6 - Call your local BRP dealership |
| 47 |
207151660 |
HEX. SCREW M5 X 16 - Call your local BRP dealership |
| 48 |
204390045 |
THROTTLE LINK - Call your local BRP dealership |
| 49 |
232551600 |
Hex. Elastic Nut M5 |
| 50 |
208453060 |
PHILLIPS SCREW M5 X 30 - Call your local BRP dealership |
| 51 |
277001759 |
PLATE CONTROL - Call your local BRP dealership |
| 52 |
277001760 |
CONTROL PLATE INSERT - Call your local BRP dealership |
| 53 |
208641060 |
Phillips Screw M4 X 10 |
| 54 |
234040600 |
Flat Washer 4 mm |
| 55 |
204390576 |
RH THROTTLE CABLE - Call your local BRP dealership |
| 56 |
414115200 |
Tie-Rap 180 mm |
| 57 |
277000504 |
CABLE SUPPORT - Call your local BRP dealership |
| 58 |
293150026 |
RIVET_POP 1/8 - Call your local BRP dealership |
| 59 |
207161260 |
Hex. Cap Screw M6 X 12 |
| 60 |
211200025 |
Lock Washer 1/4” |
| 61 |
211200025 |
Lock Washer 1/4” |
| 62 |
207161260 |
Hex. Cap Screw M6 X 12 |
| 63 |
204390373 |
REVERSE CATCH - Call your local BRP dealership |
| 64 |
204390369 |
STOP-REVERSE - Call your local BRP dealership |
| 65 |
204390370 |
REVERSE PIN - Call your local BRP dealership |
| 66 |
211200025 |
Lock Washer 1/4” |
| 67 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 68 |
277000458 |
CABLE SUPPORT - Call your local BRP dealership |
| 69 |
211000050 |
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership |
| 70 |
211200025 |
Lock Washer 1/4” |
| 71 |
211100024 |
LOCK NUT - Call your local BRP dealership |
| 72 |
234001600 |
Flat Washer 10 mm, Stainless |
| 73 |
293350014 |
Flanged Bushing |
| 74 |
277000461 |
PIVOT 3/8? - Call your local BRP dealership |
| 75 |
204390053 |
HEX. JAM NUT 5/8-18 - Call your local BRP dealership |
| 76 |
277001766 |
CABLE STEERING - Call your local BRP dealership |
| 77 |
277000456 |
PIVOT - Call your local BRP dealership |
| 78 |
204130095 |
BUSHING - Call your local BRP dealership |
| 79 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 80 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 81 |
211000054 |
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership |
| 82 |
211200025 |
Lock Washer 1/4” |
| 83 |
234062600 |
Flat Washer M6, Stainless |
| 84 |
204390040 |
ARM - Call your local BRP dealership |
| 85 |
277000440 |
SEAL SWIVEL - Call your local BRP dealership |
| 86 |
277000441 |
TERMINAL WIPER - Call your local BRP dealership |
| 87 |
204120074 |
BALL JOINT - Call your local BRP dealership |
| 88 |
207063560 |
Hex. Screw M6 X 35 |
| 89 |
234061600 |
Stainless Flat Washer M6 |
