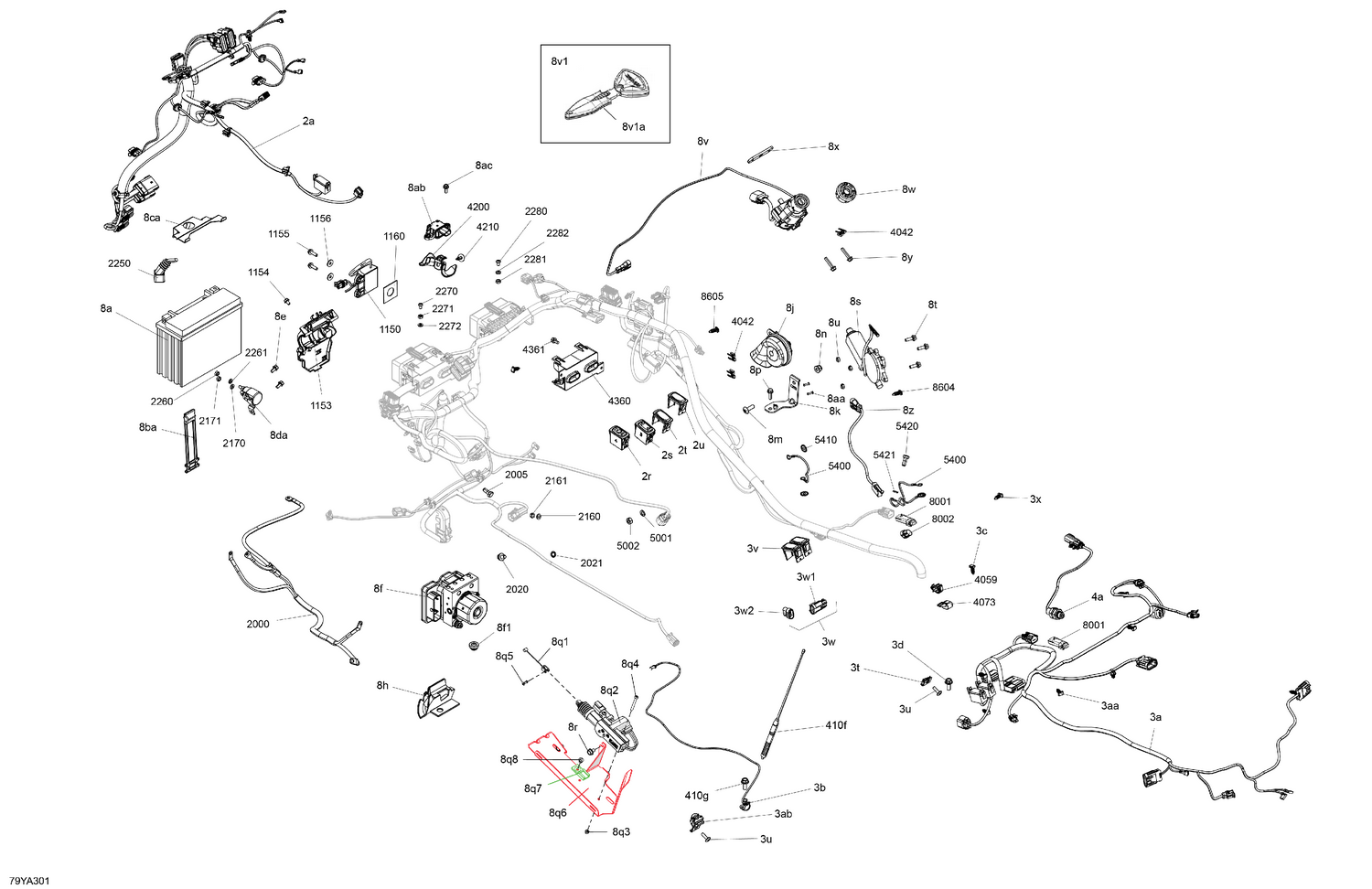

| Ref | Part Number | Description |
|---|
| 2a |
710007710 |
Wiring Harness Console |
| 2r |
710006530 |
Windshield Switch |
| 2s |
710007706 |
Heated Grip Switch This part replaces 710006528. |
| 2t |
517306808 |
Switch Hole Cap |
| 2u |
517306808 |
Switch Hole Cap |
| 3a |
710006508 |
Side Cargo Harness |
| 3aa |
710002033 |
Connector Holder |
| 3ab |
708301797 |
Antenna Support |
| 3b |
710006811 |
Antenna Cable |
| 3c |
710002033 |
Connector Holder |
| 3d |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 3t |
250100208 |
Panel Nut M6 X 1.0 |
| 3u |
250000722 |
Torx Screw M6 X 20 |
| 3v |
517306808 |
Switch Hole Cap |
| 3w |
710007723 |
Plug Connector |
| 3w1 |
710002593 |
Housing |
| 3w2 |
710001225 |
Cap |
| 3x |
710002033 |
Connector Holder |
| 4a |
219800558 |
Switch Brake Kit This part replaces 710005480. |
| 8a |
410922962 |
Battery YUASA YTX24-HL |
| 8aa |
293150150 |
Pop Rivet |
| 8ab |
710005658 |
Yaw Rate Sensor |
| 8ac |
210261650 |
Hex. Flange Screw M6 X 16 |
| 8ba |
520000528 |
Latch |
| 8ca |
710002893 |
Battery Holder |
| 8da |
710007777 |
Starter Relay |
| 8e |
210261250 |
Hex. Flange Screw M6 X 12 |
| 8f |
219800502 |
VCM Wet Prog & Grommet Module Kit This part replaces 219800488. |
| 8f1 |
710003279 |
Shock Damper |
| 8h |
710003996 |
VCM Harness Protector |
| 8j |
710004940 |
Horn |
| 8k |
710005769 |
Horn Support |
| 8m |
250000874 |
Torx Truss M8 X 25 |
| 8n |
233281414 |
Hex. Flange Elastic Nut M8 |
| 8p |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 8q1 |
710002889 |
Reverse Cable |
| 8q2 |
710011269 |
Actuator |
| 8q3 |
232541414 |
Elastic Stop Nut M4 |
| 8q4 |
205444056 |
Socket Head Screw M4 X 40 |
| 8q5 |
390403000 |
Pop Rivet 5/32 |
| 8q6 |
710005642 |
Reverse Actuator Support |
| 8q7 |
270000141 |
Clip |
| 8q8 |
390402400 |
Pop Rivet 3/16" |
| 8r |
210261250 |
Hex. Flange Screw M6 X 12 |
| 8s |
710007256 |
Actuator Motor |
| 8t |
207662054 |
Hex. Flange Screw M6 X 20 |
| 8u |
232561434 |
Elastic Stop Nut M6 |
| 8v |
710007316 |
Ignition Switch |
| 8v1 |
710004408 |
Ignition Key Kit |
| 8v1a |
710003597 |
Key Sleeve |
| 8w |
710003594 |
Switch Cover |
| 8x |
710001365 |
Switch Support |
| 8y |
207563044 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 8z |
710001379 |
Brake Pressure Switch Ass'y |
| 410f |
710005434 |
Antenna |
| 410g |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 1150 |
710004916 |
Dess Module |
| 1153 |
710004308 |
Wire Support |
| 1154 |
210261050 |
Hex. Forming Screw M6 X 10 |
| 1155 |
210262050 |
Hexagonal Head Screw |
| 1156 |
234062410 |
Flat Washer 6 mm |
| 1160 |
293830091 |
Rubber Bumper |
| 2000 |
710006399 |
Starter Cable Ass'y |
| 2005 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 2020 |
207581244 |
Hex. Flange Screw M8 X 12, Scotch Grip |
| 2021 |
234481608 |
Serrated Lock Washer 8 mm |
| 2160 |
234061600 |
Stainless Flat Washer M6 |
| 2161 |
232561434 |
Elastic Stop Nut M6 |
| 2170 |
234161601 |
Lock Washer Helical M6 |
| 2171 |
232061600 |
Hex. Nut M6 |
| 2250 |
710005026 |
Pos Cable |
| 2260 |
232061600 |
Hex. Nut M6 |
| 2261 |
234161601 |
Lock Washer Helical M6 |
| 2270 |
205961060 |
Socket Head Screw M6 X 10, Scotch Grip |
| 2271 |
232061600 |
Hex. Nut M6 |
| 2272 |
234161601 |
Lock Washer Helical M6 |
| 2280 |
205961060 |
Socket Head Screw M6 X 10, Scotch Grip |
| 2281 |
232061600 |
Hex. Nut M6 |
| 2282 |
234161601 |
Lock Washer Helical M6 |
| 4042 |
710001222 |
Lock |
| 4059 |
710004903 |
Connector Plug |
| 4073 |
710004902 |
Connector Plug |
| 4200 |
710004931 |
Harness Holder |
| 4210 |
414745900 |
Tuflock Phillips Plastic Screw |
| 4360 |
710004472 |
Fuse Holder Support |
| 4361 |
210261250 |
Hex. Flange Screw M6 X 12 |
| 5001 |
234181601 |
Lock Washer 8 mm, Stainless |
| 5002 |
232081414 |
Hex. Nut M8 |
| 5400 |
710004849 |
Tank Cable |
| 5410 |
250200041 |
Lock Washer Serrated M6 |
| 5420 |
207382060 |
Hex. Screw M8 X 20, Scotch Grip |
| 5421 |
250200111 |
Washer |
| 8001 |
710007512 |
Connector Plug |
| 8002 |
710004906 |
Connector Plug |
| 8604 |
710002033 |
Connector Holder |
