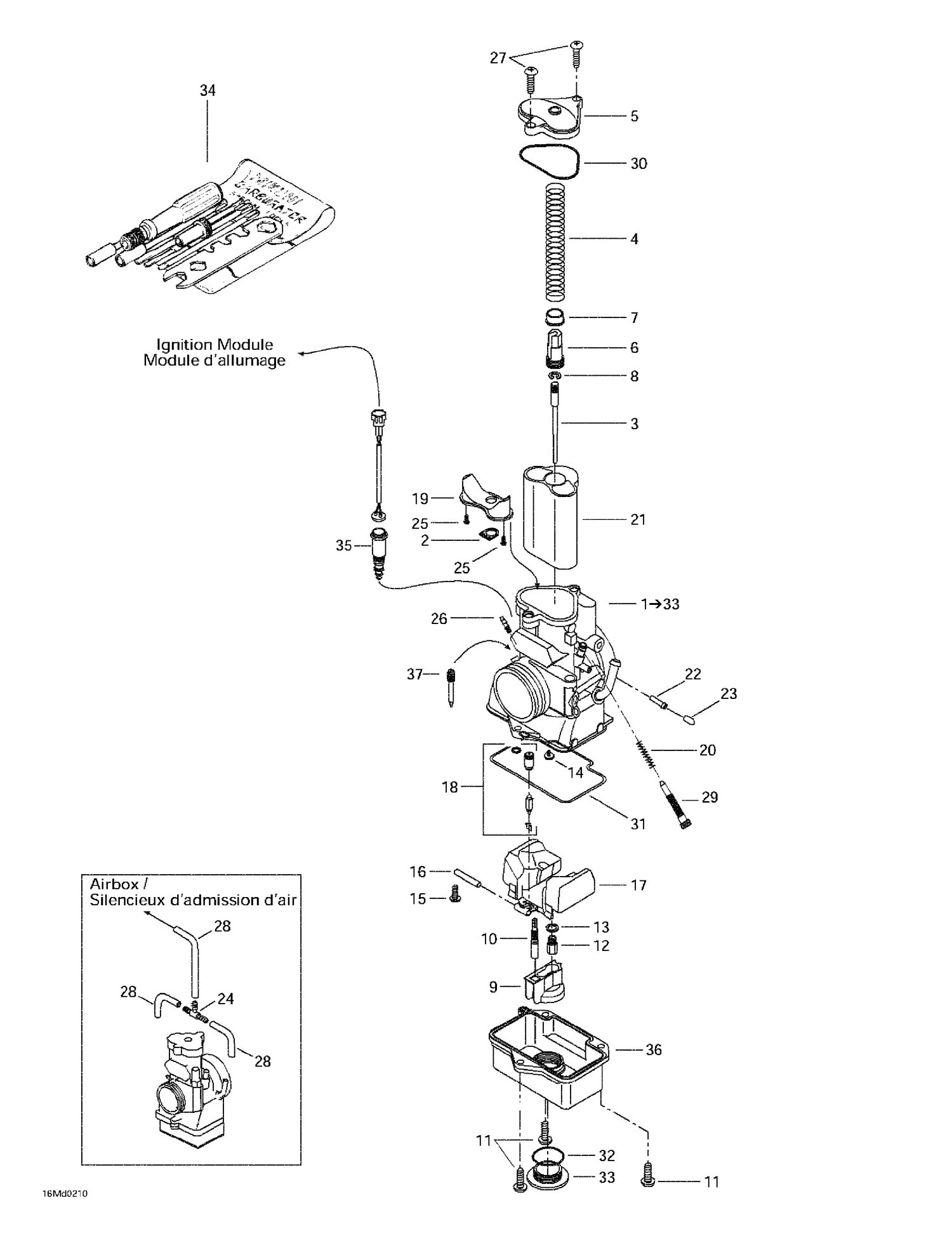

02- Carburetors
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 404161865 | Packing |
| 3 | 404161999 | Needle Jet J8-6FIY04 |
| 4 | 404161864 | SPRING - Call your local BRP dealership |
| 5 | 404161857 | TOP CAP - Call your local BRP dealership |
| 6 | 404161856 | GUIDE HOLDER - Call your local BRP dealership |
| 7 | 404161863 | RING - Call your local BRP dealership |
| 8 | 404152200 | E-Ring |
| 9 | 404161855 | HOLDER - Call your local BRP dealership |
| 10 | 404161870 | PILOT JET 25 - Call your local BRP dealership |
| 11 | 404161848 | SCREW - Call your local BRP dealership |
| 12 | 404100600 | Main Jet 260 |
| 13 | 404161862 | WASHER - Call your local BRP dealership |
| 14 | 404161861 | SCREW - Call your local BRP dealership |
| 15 | 404138600 | SCREW - Call your local BRP dealership |
| 16 | 404161860 | PIN - Call your local BRP dealership |
| 17 | 404161859 | FLOAT - Call your local BRP dealership |
| 18 | 404161868 | Needle Valve 1.5 |
| 19 | 404161974 | VENTURI - Call your local BRP dealership |
| 20 | 404161849 | SPRING - Call your local BRP dealership |
| 21 | 404161867 | PISTON VALVE 4.0 - Call your local BRP dealership |
| 22 | 404161997 | Pilot Jet |
| 23 | 404156600 | Cap |
| 24 | 270500347 | T Fitting |
| 25 | 404161852 | SCREW - Call your local BRP dealership |
| 26 | 404153400 | Nipple |
| 27 | 404138700 | Screw |
| 28 | 404161821 | HOSE - Call your local BRP dealership |
| 29 | 404161850 | ADJUSTER - Call your local BRP dealership |
| 30 | Not | Available As Spare Part - O-Ring |
| 31 | 404161993 | O-Ring |
| 32 | 404107300 | O-Ring |
| 33 | 404107400 | Drain Plug Screw |
| 34 | 404112000 | TOOL KIT - Call your local BRP dealership |
| 35 | 404161998 | SELENOID - Call your local BRP dealership |
| 36 | 404161994 | Body Float |
| 403138708 | Carburateur | TMX-34 (MAG) 403138708 |
| 403138708 | Carburator | TMX-34 (MAG) 403138708 |
| 404100300 | GICLEUR | MJ 250 404100300 |
| 404100300 | Main | Jet MJ 250 404100300 |
