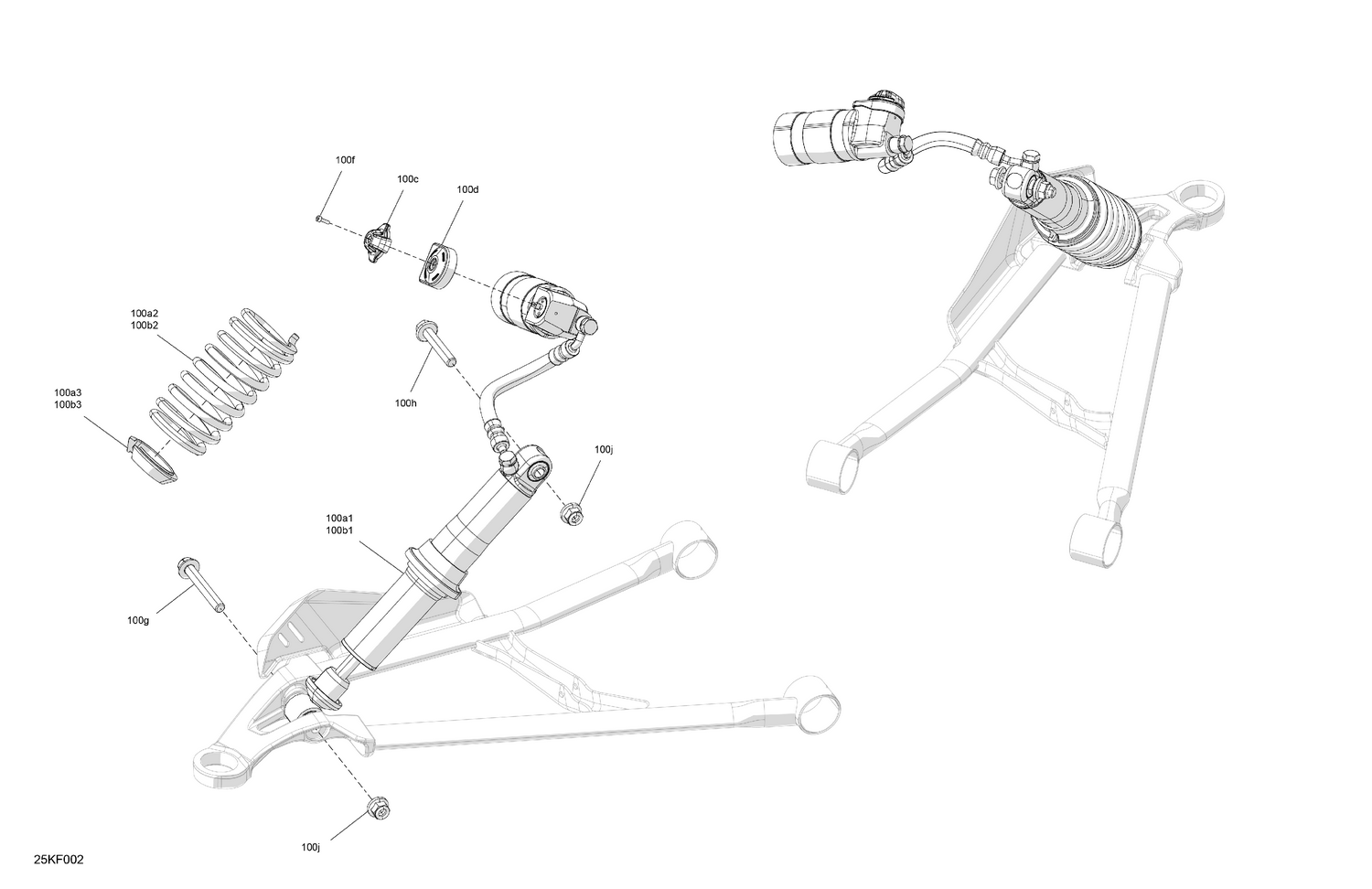

05- Suspension - Front Shocks
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 100a1 | 706004338 | LH Front Adjustable Shock Absorber |
| 100a2 | 706204736 | Front Compression Spring |
| 100a3 | 503195241 | Spring Stopper |
| 100b1 | 706004512 | RH Front Adjustable Shock Absorber |
| 100b2 | 706204736 | Front Compression Spring |
| 100b3 | 503195241 | Spring Stopper |
| 100c | 706004415 | Adjustment Button |
| 100d | 706004533 | Gauge |
| 100f | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 100g | 207607056 | Hex. Flange Screw M10 X 70 |
| 100h | 207605554 | Hex. Flange Screw M10 X 55 |
