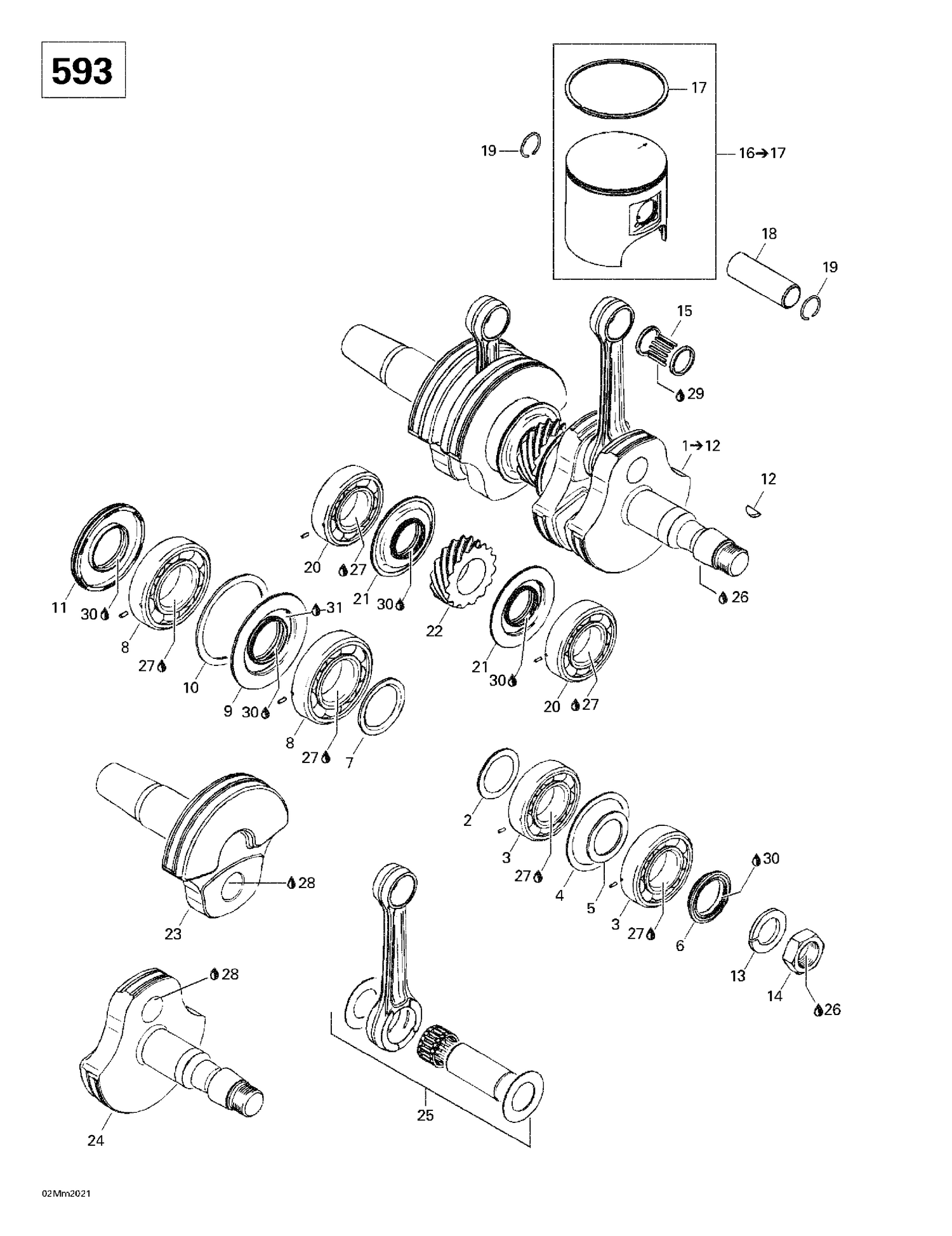

| Ref | Part Number | Description |
|---|
| 1 |
421000563 |
REBUILD-CRANKSHAFT 593 2000 - Call your local BRP dealership |
| 2 |
420827445 |
DISTANCE RING - Call your local BRP dealership |
| 3 |
420832590 |
Ball Bearing 6206 |
| 4 |
420827050 |
RETAINING DISK - Call your local BRP dealership |
| 5 |
420427684 |
ADJUSTMENT WASHER - Call your local BRP dealership |
| 6 |
420931795 |
Oil Seal This part replaces 420931790. |
| 7 |
420827760 |
DISTANCE RING - Call your local BRP dealership |
| 8 |
420832575 |
Ball Bearing 6207 |
| 9 |
420931455 |
Oil Seal |
| 10 |
420927710 |
Retaining Disk |
| 11 |
420831952 |
Oil Seal This part replaces 420831950. |
| 12 |
420246015 |
Woodruff Key |
| 13 |
420945759 |
Lock Washer, 22 mm |
| 14 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 15 |
420832445 |
Needle Bearing This part replaces 420832425. |
| 17 |
420815155 |
Semi-Trapez Ring, Standard This part replaces 420815150. |
| 18 |
420916412 |
Piston Pin This part replaces 420916410. |
| 19 |
420845102 |
PISTON CIRCLIP - Call your local BRP dealership |
| 20 |
420832590 |
Ball Bearing 6206 |
| 21 |
420931940 |
Oil Seal |
| 22 |
420834350 |
Central Gear, 15 Teeth |
| 23 |
420818665 |
CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818664. |
| 24 |
420818697 |
Crankshaft This part replaces 420818693. |
| 25 |
420890973 |
Rod Repair Kit, MAG Side This part replaces 420888253. |
| 26 |
293800060 |
Loctite 243, 10 ml |
| 27 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 28 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 29 |
779119 |
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900. |
| 30 |
420899271 |
Petamo Grease, GHY133N, 400 g |
| 420815156 |
Segment |
Semi-Trapézoïdal, 1er This part replaces 420815151. 420815156 |
| 420815156 |
Semi-Trapez |
Ring, 1st This part replaces 420815151. 420815156 |
| 420889174 |
Piston |
Ass’y, 76.13 mm, Oversize This part replaces 420886688. 420889174 |
| 420890974 |
Ens. |
Tige Réparation, Côté PDM This part replaces 420888254. 420890974 |
| 420890974 |
Rod |
Repair Kit, PTO Side This part replaces 420888254. 420890974 |
