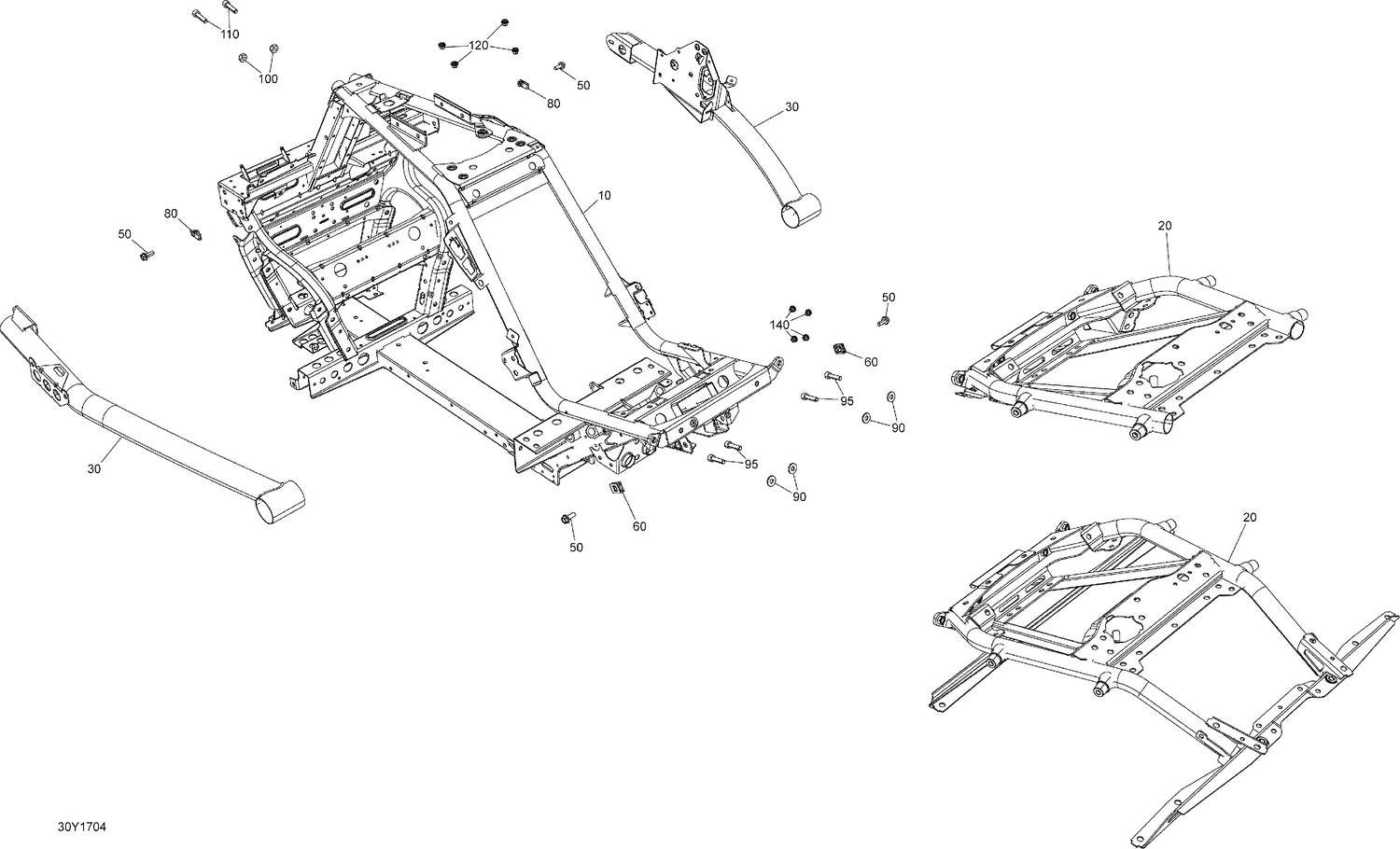

09- Frame - All Models
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 50 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 60 | 250100069 | Panel Nut M8 X 1.25 |
| 80 | 250100118 | Panel Nut M8 X 1.25 |
| 90 | 234001410 | Flat Washer 10 mm |
| 95 | 207103586 | Hex. Screw M10 X 35 |
| 100 | 232500416 | Elastic Stop Nut M10 |
| 110 | 207583086 | Hex. Flange Screw M8 X 30, Scotch Grip |
| 120 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450232. |
