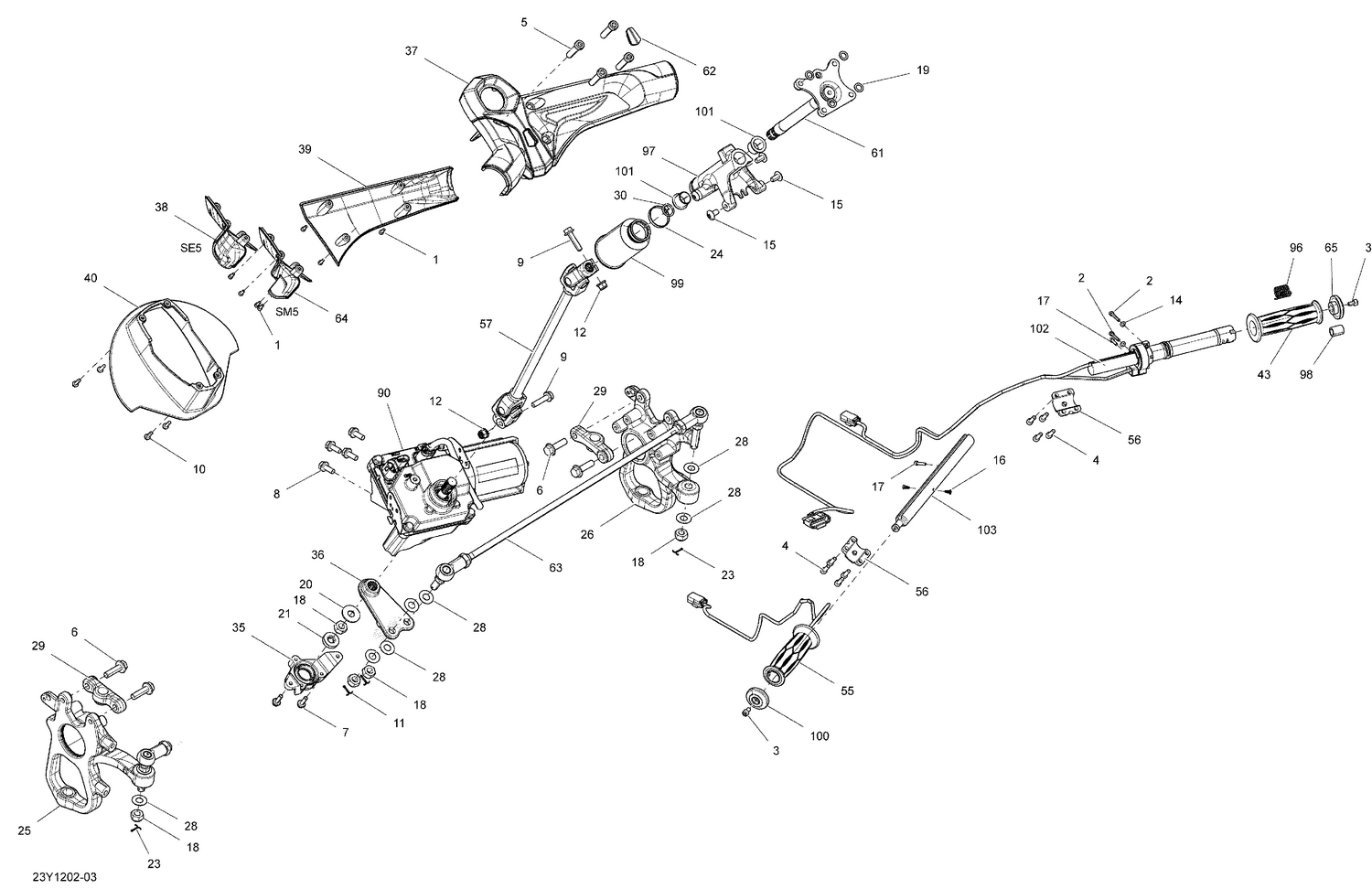

| Ref | Part Number | Description |
|---|
| 1 |
205041054 |
Screw-Socket Hd.DIN.912 This part replaces 205041094. |
| 2 |
205042594 |
Socket Screw, M4 X 25 |
| 3 |
205061054 |
Screw-Socket Hd.Din.912 This part replaces 205061094. |
| 4 |
205061644 |
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 5 |
250000456 |
Thin Socket Screw M10 X 40, Scotch Grip |
| 6 |
207503534 |
SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership |
| 7 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 8 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 10 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 11 |
250400034 |
Cotter Pin |
| 12 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 14 |
234040600 |
Flat Washer 4 mm |
| 15 |
250000746 |
Torx Truss Screw M8 X 16 This part replaces 250000198. |
| 16 |
250000453 |
Torx Cutting Screw, M4 X 10 |
| 17 |
250000494 |
Socket Screw, M4 X 16 Scotch Grip |
| 18 |
250100089 |
Hex. Elastic Hex. Nut M12 |
| 19 |
250200105 |
Stainless Flat Washer, 10 mm |
| 20 |
250200113 |
Flat Washer, 12 mm |
| 21 |
293200113 |
Seal Ring |
| 23 |
371800700 |
Cotter Pin |
| 24 |
414115200 |
Tie-Rap 180 mm |
| 25 |
505071709 |
KNUCKLE LH - Call your local BRP dealership |
| 26 |
505071711 |
KNUCKLE RH - Call your local BRP dealership |
| 28 |
706200281 |
Hardened Washer This part replaces 250200086. |
| 29 |
706200528 |
UPPER SUPPORT - Call your local BRP dealership |
| 30 |
709000089 |
O-Ring |
| 35 |
709400455 |
SENSOR SUPPORT - Call your local BRP dealership |
| 36 |
709401417 |
PITMAN ARM - Call your local BRP dealership This part replaces 709400922. |
| 37 |
709400907 |
CRYSTAL SILVER HANDLEBAR - Call your local BRP dealership |
| 39 |
709400578 |
RH Steering Cover |
| 40 |
709400579 |
Handlebar Central Cover |
| 43 |
709402720 |
Heated Throttle Grip This part replaces 709400929. |
| 55 |
709400625 |
Heating Handle Grip |
| 56 |
709400631 |
Handlebar Clamp |
| 57 |
709400658 |
Lower Steering Column |
| 61 |
709401682 |
Steering Colum, Black This part replaces 709400774. |
| 62 |
709400680 |
CRYSTAL SILVER CAP - Call your local BRP dealership |
| 63 |
709400727 |
ROD_TIE ASSY - Call your local BRP dealership |
| 65 |
219800381 |
Bushing End Piece Kit This part replaces 709400765. |
| 90 |
219800296 |
Ens Dps *Dps Kit Rt This part replaces 709401051. |
| 96 |
709401937 |
Spring This part replaces 709400773. |
| 98 |
219800381 |
Bushing End Piece Kit This part replaces 709400782. |
| 99 |
709400790 |
Bellows |
| 100 |
709400793 |
Handlebar End Piece LH |
| 101 |
Not |
Available As Spare Part - Cushion |
| 102 |
709401150 |
RH HANDLEBARS - Call your local BRP dealership |
