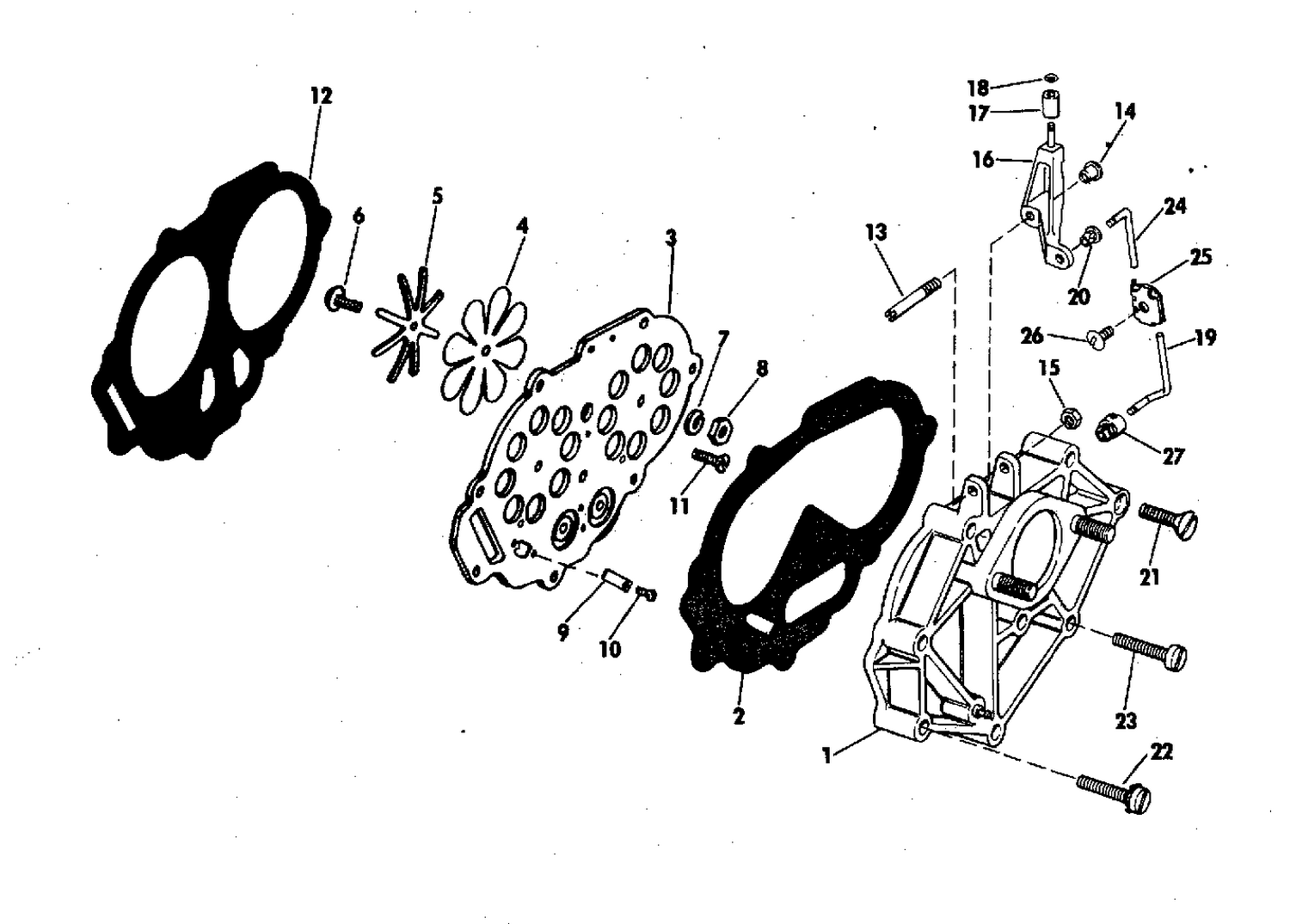

| Ref | Part Number | Description |
|---|
| 1 |
0384696 |
MANIFOLD, Intake |
| 2 |
0315991 |
GASKET, Lead plate to manifold |
| 4 |
0314648 |
LEAF |
| 10 |
0303761 |
SCREW |
| 12 |
0316540 |
GASKET, Leaf plate to c' case |
| 13 |
0316606 |
PIN |
| 14 |
0316607 |
BUSHING |
| 16 |
0384697 |
CAM FOLLOWER |
| 17 |
0305232 |
ROLLER, Cam foller |
| 18 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
| 19 |
0318438 |
LINK, Throttle lever, lower |
| 20 |
0204708 |
RETAINER |
| 21 |
0304294 |
SCREW Manifold to crankcase |
| 22 |
0312189 |
SCREW, Manfold to crankcase |
| 23 |
0314514 |
SCREW, Manifold lower |
| 24 |
0318437 |
LINK, Throttle lever, upper |
| 25 |
0318974 |
FASTENER, Cable clamp |
| 26 |
0303686 |
SCREW, Fastener |
| 0279214 |
0279214 |
LEADF PLATE ASSY |
