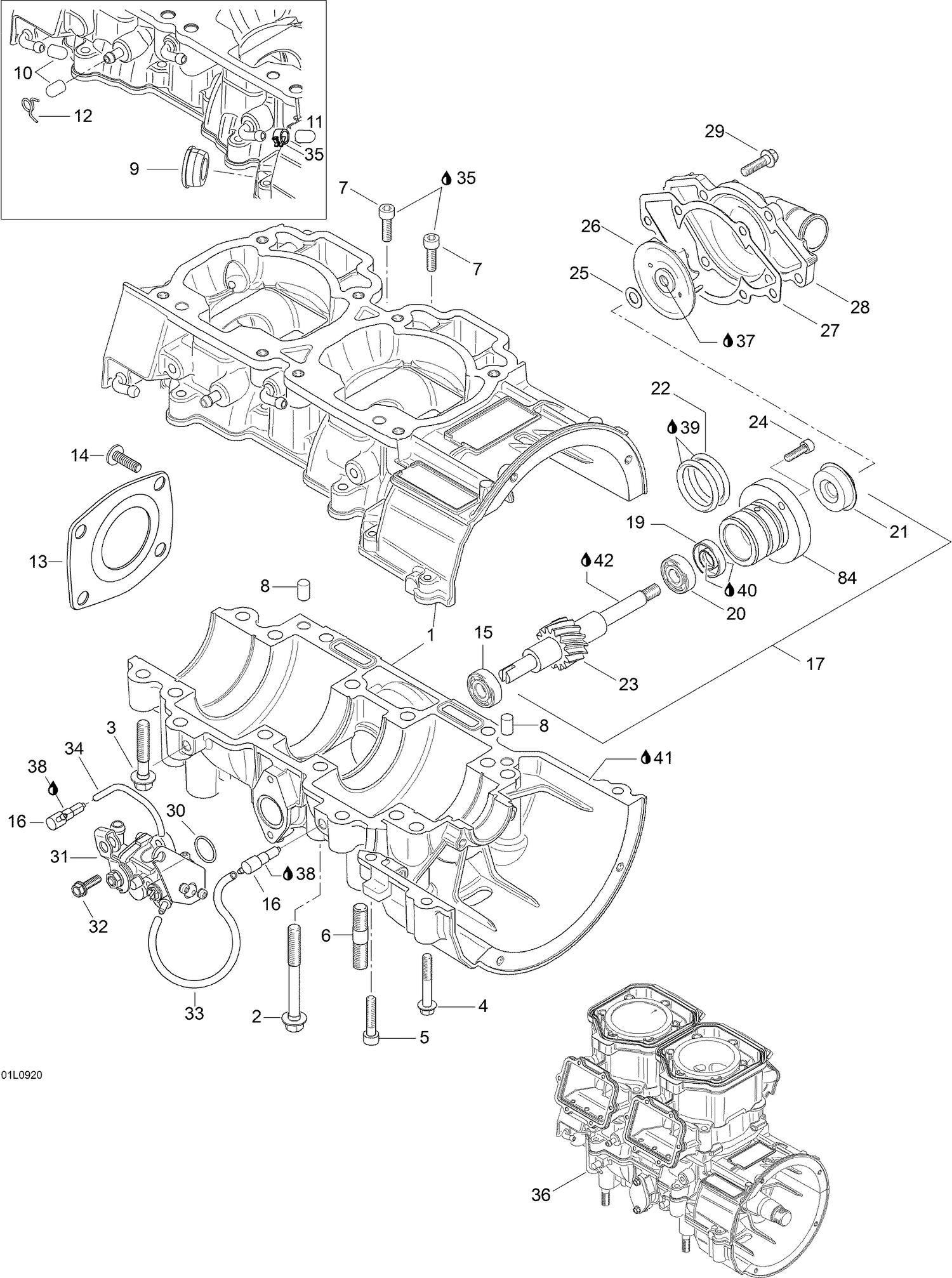

01- Crankcase

01- Crankcase

Parts (39)

RefPart NumberDescription
2 420640836 Hex. Collar screw M8 x 75
3 420640433 Collar Hex Screw M8 X 45 This part replaces 420640431.
4 420640312 Hex. Collar Screw M6 X 45 This part replaces 420640311.
5 205063044 Allen screw M6x30 This part replaces 420840880.
6 420641834 STUD M10 X 29 - Call your local BRP dealership
7 420840403 Socket Head Screw M6 X 22 This part replaces 420840401.
8 420632010 Center Pin 8 X 12
9 420860965 Cable grommet
10 420960770 Cap
11 420960777 CAP - Call your local BRP dealership
12 414420700 Universal Spring Clamp
13 420812422 Oil Seal Cover This part replaces 420812420.
14 420941436 Screw M6 X 20 This part replaces 420941430.
15 420232100 Ball Bearing
16 420956511 Check Valve This part replaces 420956510.
18 Not Available As Spare Part - Step collar
19 420230195 Oil seal This part replaces 420230196.
20 420232100 Ball Bearing
21 420650371 Rotary Seal This part replaces 420650370.
22 420950890 O-Ring
23 Not Available As Spare Part - Water pump shaft
24 420840514 Allen Screw M5 x 16 This part replaces 420840511.
25 420227945 Thrust washer
26 420222505 Water impeller
27 420931811 Gasket This part replaces 420931810.
28 420922630 Water pump housing
29 420240034 Hex. Screw M6 x 25 This part replaces 420240031.
30 293300041 O-Ring This part replaces 420230400.
31 420888780 Oil pump ass'y (600)
32 420941928 Taptite Screw M5 X 16 This part replaces 420941925.
33 414413800 Oil line 70 mm
34 414413800 Oil line, 115 mm
35 420938190 CLAMP - Call your local BRP dealership
36 300059312 Short block assy
37 293800060 Loctite 243, 10 ml
38 219703000 Sealant Loctite 648 This part replaces 413711400.
39 413707000 Molykote 111
40 420899271 Grease Petamo Ghy 133N, 400 g
41 420297907 Sealing Compound Loctite 5366 310Ml This part replaces 420297906.
