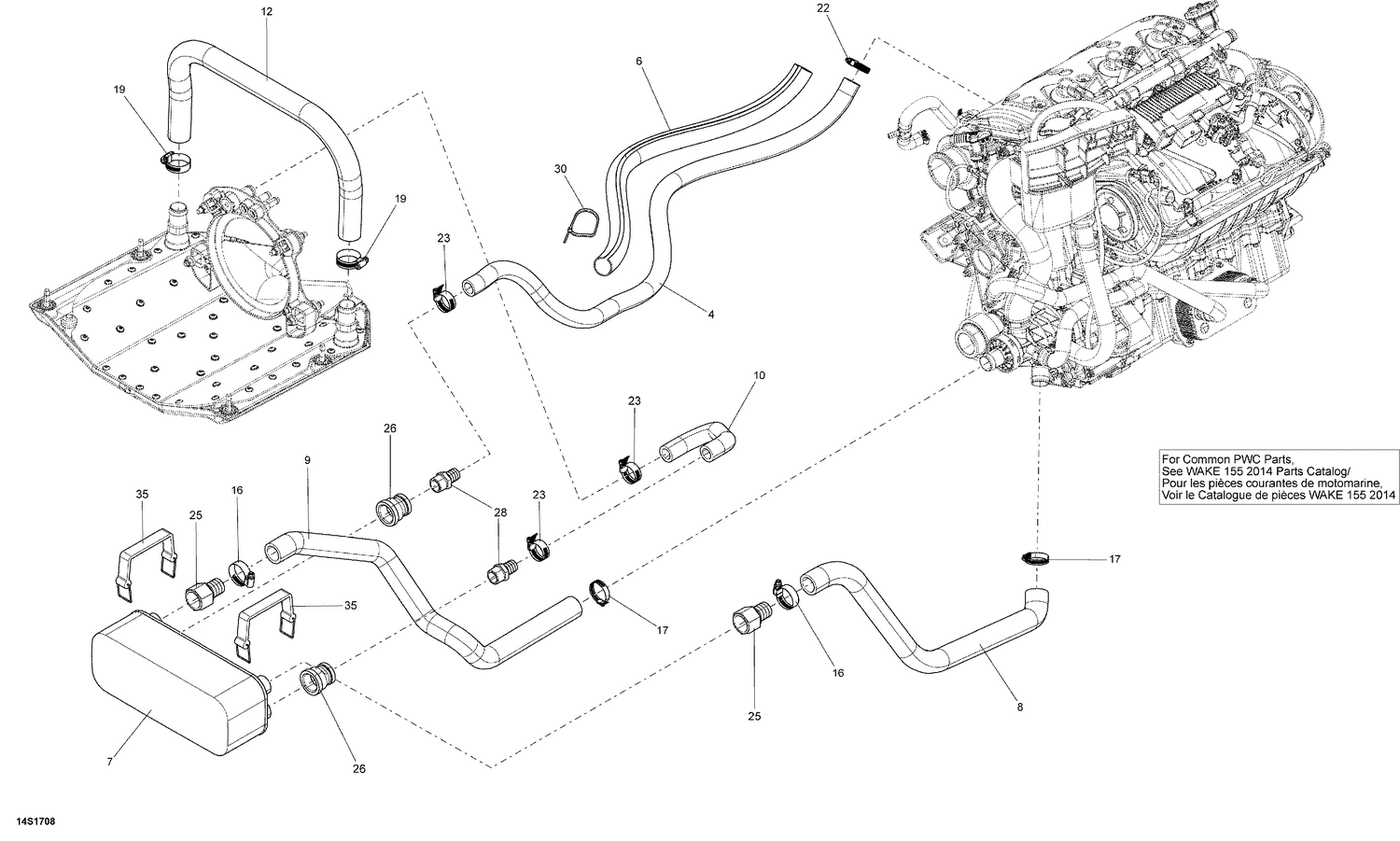

01- Cooling System
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 6 | 219704402 | Tubing 25 MM 1000MM Long |
| 7 | 276000345 | HEAT EXCHANGER - Call your local BRP dealership |
| 8 | 276000350 | HOSE - Call your local BRP dealership |
| 9 | 276000351 | HOSE - Call your local BRP dealership |
| 10 | 276000353 | HOSE - Call your local BRP dealership |
| 12 | 276000368 | COOLING HOSE - Call your local BRP dealership |
| 16 | 293650045 | Tridon Gear Clamp |
| 17 | 293650185 | Tridon Gear Clamp |
| 19 | 293650185 | Tridon Gear Clamp |
| 22 | 293650051 | Tridon Gear Clamp |
| 23 | 293650051 | Tridon Gear Clamp |
| 25 | 293700052 | Female Fitting |
| 26 | 293700053 | Reducer 1-3/4" NPT |
| 28 | 293700054 | MALE FITTING 3/4 NPT - Call your local BRP dealership |
| 30 | 293750008 | Tie Wrap 368 mm |
