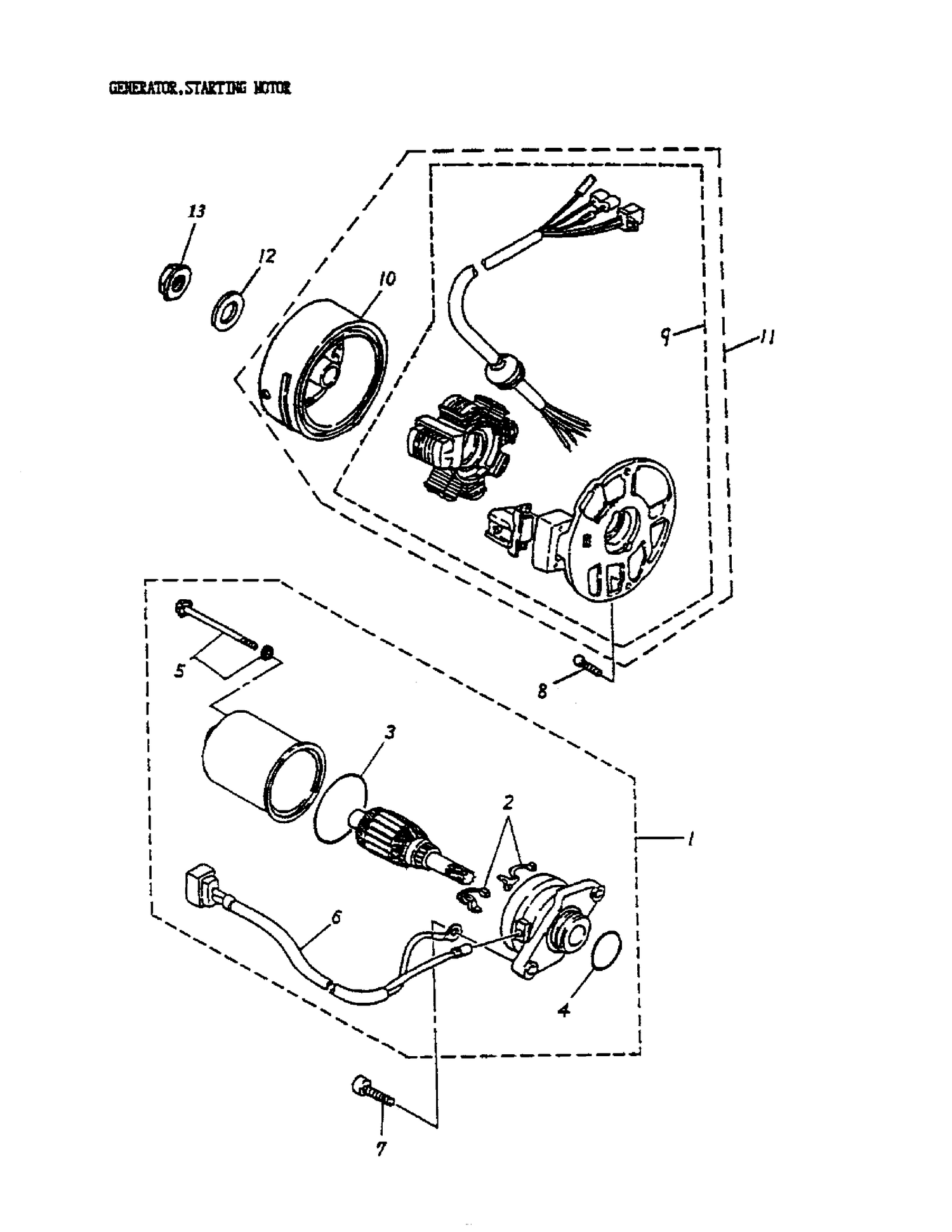

04- Generator, Starting Motor 170a-12
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A31200116000 | STARTING MOTOR ASS'Y - Call your local BRP dealership |
| 2 | A31201104000 | Brush Set |
| 3 | A91342104000 | Oil Ring |
| 4 | A91323104000 | Oil Ring |
| 5 | A90115104000 | Bolt Set |
| 6 | A31202116000 | Cord Comp. |
| 7 | 205062044 | Socket Head Screw M6 X 20 This part replaces A9100006020. |
| 8 | A9100006015 | Hex. Socket Bolt M6 X 15 |
| 9 | A31120116000 | STATOR COMP. - Call your local BRP dealership |
| 10 | A31110116000 | Generator Flywheel |
| 11 | A31100116000 | Generator Ass'y |
| 12 | A941011022020 | Plain Washer, 10 X 22 X 2 |
