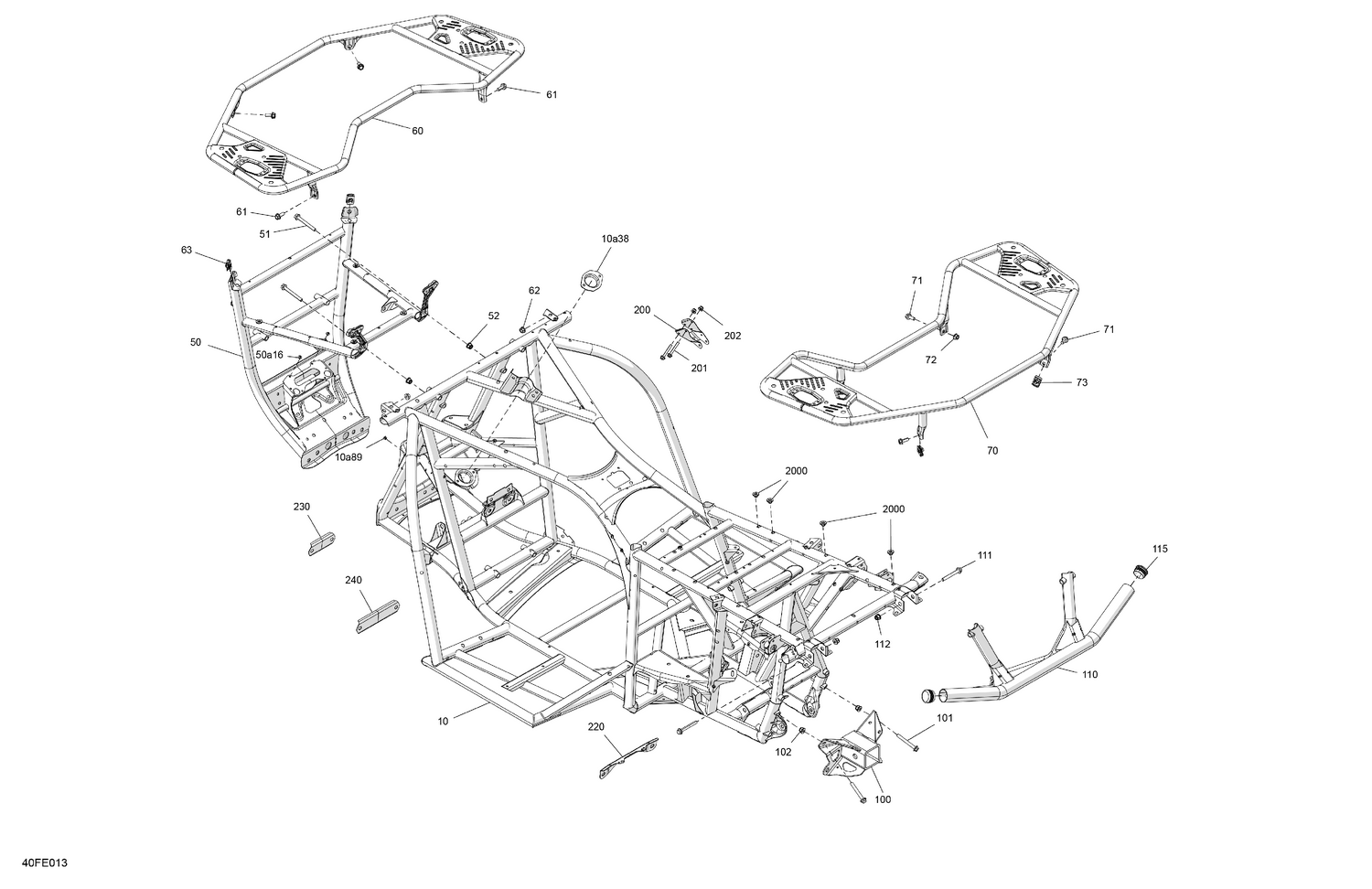

06- Frame - System
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 10a38 | 709402713 | Lower Bearing Support |
| 10a89 | 293150293 | Pop Rivet 3/16 X ,425 |
| 50a16 | 293150293 | Pop Rivet 3/16 X ,425 |
| 51 | 207687044 | Hex. Flange Screw M8 X 70 |
| 52 | 233281414 | Hex. Flange Elastic Nut M8 |
| 61 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 62 | 233181414 | Hex. Flange Nut M8 |
| 63 | 250100236 | Panel Nut M8 X 1.25 |
| 71 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 72 | 233181414 | Hex. Flange Nut M8 |
| 73 | 250100236 | Panel Nut M8 X 1.25 |
| 101 | 207686544 | Hex. Flange Screw, M8 X 65 |
| 102 | 233281414 | Hex. Flange Elastic Nut M8 |
| 111 | 207687044 | Hex. Flange Screw M8 X 70 |
| 112 | 233281414 | Hex. Flange Elastic Nut M8 |
| 115 | 705202455 | Cap |
| 200 | 705208228 | Lever Support |
| 201 | 207664544 | Hex. Flange Screw M6 X 45 |
| 202 | 233261466 | Hex. Flange Elastic Nut M6 |
| 220 | 705209026 | Rear Suspension Arm Reinforcement |
| 230 | 705212296 | Front Upper Suspension Arm Reinforcement |
| 240 | 705211664 | Front Lower Suspension Arm Reinforcement |
