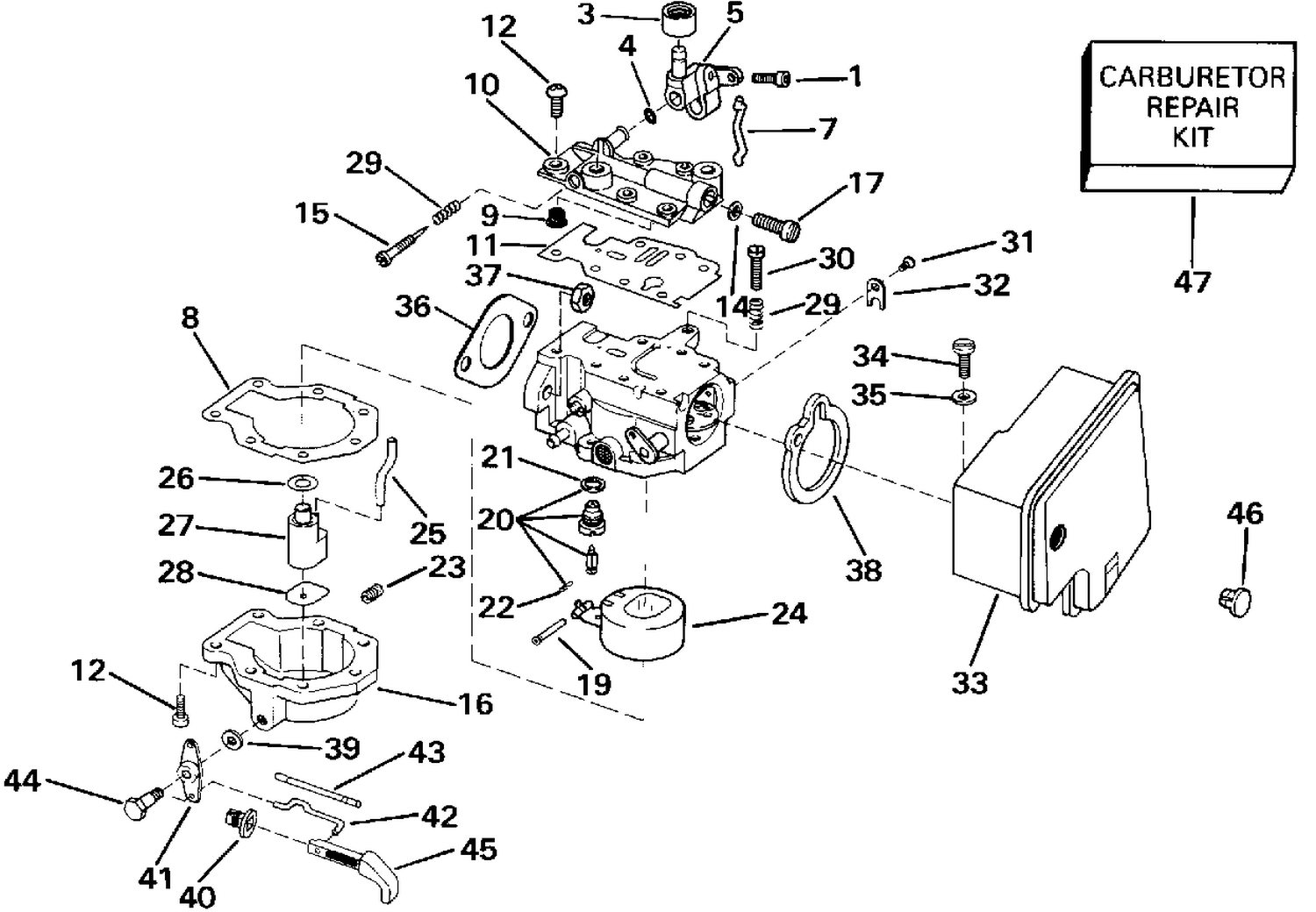

| Ref | Part Number | Description |
|---|
| 10 |
0336048 |
COVER, Carb. body |
| 11 |
0334043 |
GASKET, Cover |
| 15 |
0334042 |
NEEDLE VALVE, Slow speed |
| 16 |
0398068 |
FLOAT CHAMBER This part replaces 0336393. |
| 22 |
0336842 |
CLIP, SPRING |
| 23 |
0323708 |
HIGH SPEED ORIFICE, No. 50 |
| 25 |
0336567 |
FLEX TUBE |
| 26 |
0338883 |
GASKET, Upper This part replaces 0333347. |
| 27 |
0396605 |
NOZZLE WELL |
| 27 |
0397189 |
NOZZLE WELL |
| 28 |
0333348 |
GASKET, Cover to housing |
| 33 |
0433984 |
AIR SILENCER |
| 34 |
0331758 |
SCREW, Air horn to carburetor |
| 36 |
0318932 |
JOINT |
| 37 |
0328742 |
NUT |
| 38 |
0335389 |
SEAL, Air silencer to carb |
| 39 |
0303887 |
WASHEER, Pin to swivel bracket |
| 40 |
0335253 |
BAGUE, bouton de starter |
| 41 |
0336369 |
BELLCRANK, Choke knob |
| 42 |
0335961 |
LINK, Bellcrank to knob |
| 43 |
0336370 |
LINK, Bellcrank to lever |
| 44 |
0336300 |
SCREW, Bellcrank |
| 45 |
0338965 |
CHOKE KNOB This part replaces 0336147. |
| 46 |
0333011 |
PLUG |
| 0433956 |
0439984 |
CARBURETOR Assy, This part replaces 0433956. |
| 0433958 |
5000377 |
Kit Ay This part replaces 0433958. |
