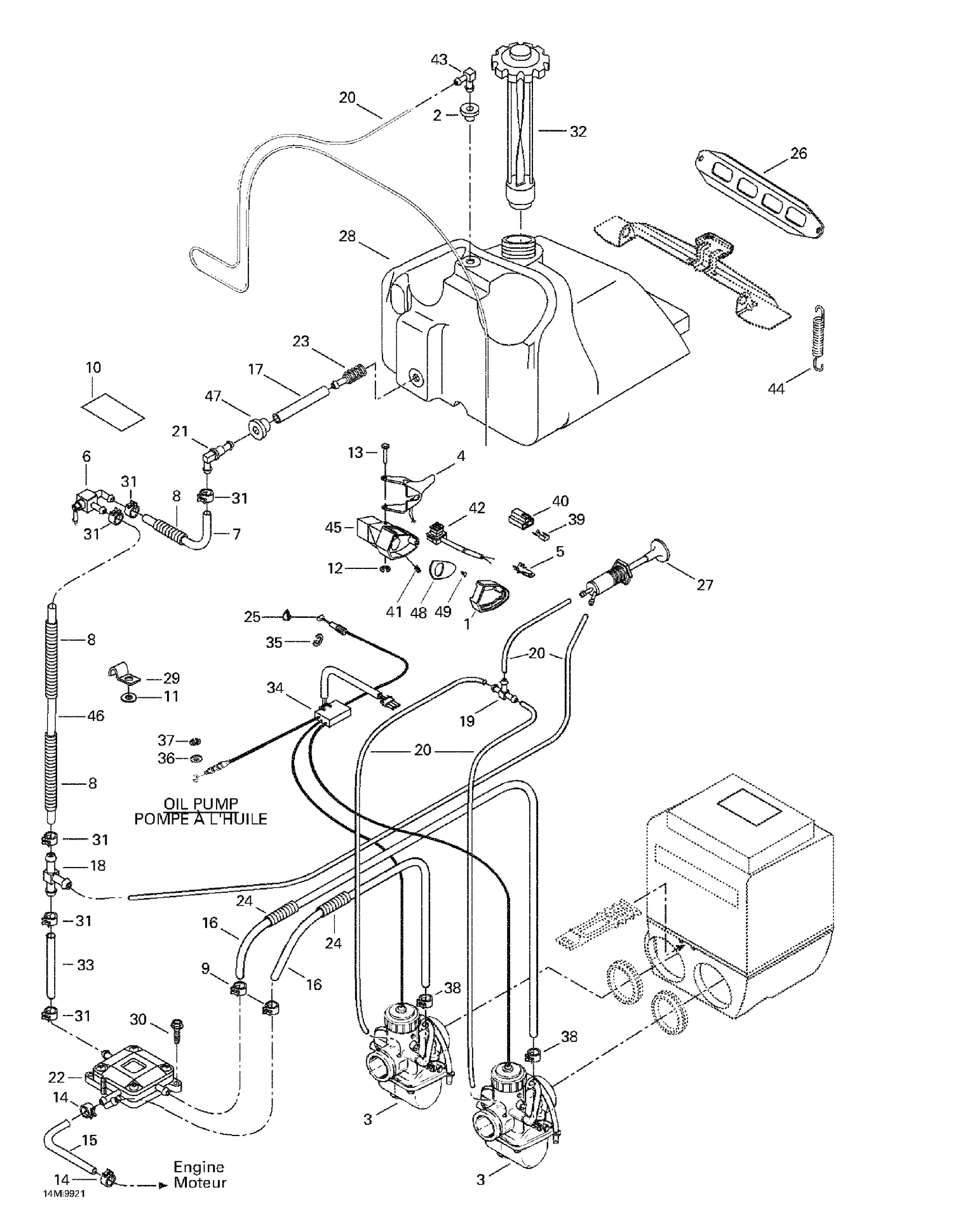

02- Fuel System
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 572044600 | THROTTLE COVER - Call your local BRP dealership |
| 2 | 709200285 | Grommet This part replaces 570135100. |
| 3 | 403138559 | Carburetor VM44-36 (PTO) |
| 4 | 572109400 | Heat Throttle Handle Ass'y (44 mm) |
| 5 | 409210000 | MALE TERMINAL - Call your local BRP dealership |
| 6 | 414872200 | Shut Off Valve |
| 7 | 415062400 | Formed Hose |
| 8 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 9 | 414554800 | Spring Clamp |
| 10 | 414931500 | Security Label |
| 11 | 224061121 | Flat Washer |
| 12 | 414439000 | Circlip |
| 13 | 414438700 | Lever Pin |
| 14 | 414415200 | Spring Clamp |
| 15 | 219704549 | Hose This part replaces 219704439. |
| 16 | 219704410 | Polyurethane Hose 10000Mm Long |
| 17 | 415005700 | Hose |
| 18 | 415119300 | T-Fitting |
| 19 | 414222400 | T-Fitting |
| 20 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 21 | 572078200 | Male Connector |
| 22 | 403901200 | Fuel Pump Ass'y |
| 23 | 414872100 | Fuel Filter Strainer |
| 24 | 219704407 | Tubing 10 MM 1000MM Long |
| 25 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 26 | 517249200 | Fuel Tank Bracket |
| 27 | 415060500 | Primer |
| 28 | 572110700 | Fuel Tank |
| 29 | 415018200 | CLIP - Call your local BRP dealership |
| 30 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 31 | 414655700 | Spring Clamp |
| 32 | 513032905 | Fuel Tank Cap |
| 33 | 219704411 | FUEL LINE 10000MM LONG - Call your local BRP dealership |
| 34 | 415108900 | Throttle Cable and Housing (44 mm) |
| 35 | 414274500 | Circlip |
| 36 | 234081100 | Flat Washer 8 mm, Nylon This part replaces 414753300. |
| 37 | 414753500 | Circlip |
| 38 | 414420700 | Spring Clamp |
| 39 | 515175253 | FEMALE TERMINAL - Call your local BRP dealership |
| 40 | 409008500 | Female Terminal Housing (3 circuits) |
| 41 | 414440800 | Socket Set Screw M8 X 10 |
| 42 | 515177362 | Emergency Stop Switch This part replaces 414612700. |
| 43 | 414814100 | Male Connector |
| 44 | 517182100 | SPRING - Call your local BRP dealership |
| 45 | 512060603 | Throttle Housing This part replaces 572086700. |
| 46 | 219704411 | FUEL LINE 10000MM LONG - Call your local BRP dealership |
| 47 | 707800347 | Grommet This part replaces 570273900. |
| 48 | 512060390 | Plate This part replaces 572099400. |
| 403138560 | Carburetor | VM44-37 (MAG) 403138560 |
