Home / BRP / Can-Am 3-Wheel Vehicles / 2022 / 001 - F3 Series / 004 - F3 S - Special Series - Manta Green, Europe, 2022 000E6NG00 / MIDSECTION

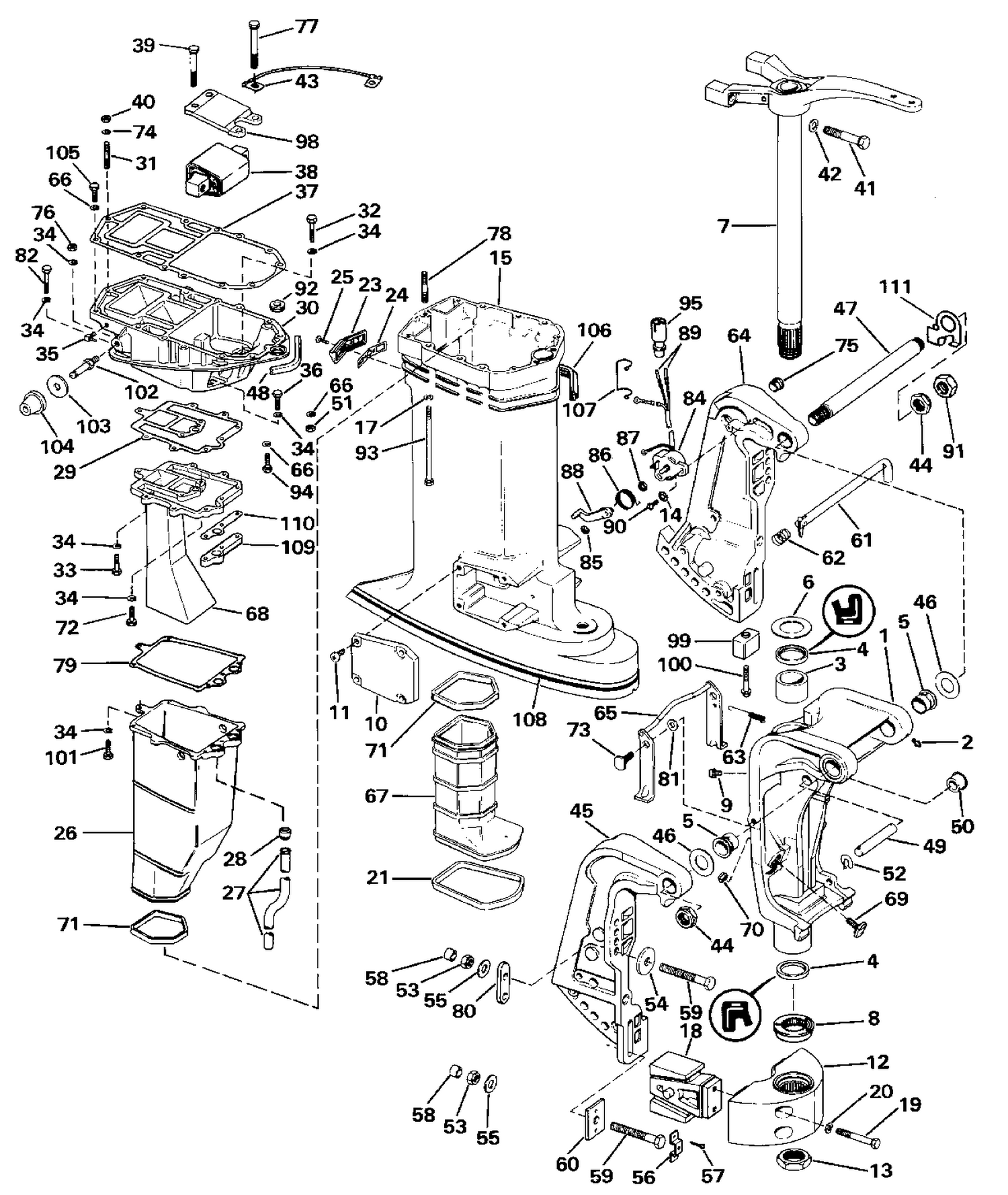

MIDSECTION

MIDSECTION

Parts (88)

RefPart NumberDescription
1 0432708 SWIVEL BRACKET This part replaces 0397743.
1 0432710 SWIVEL BRACKET This part replaces 0398309.
5 0321035 BRUSHING, Swivel bracket
6 0320866 RONDELLE DE BUTÉE, arbre d'articulation
7 0392518 STEERING ARM ASSY.
7 0392519 STEERING ARM ASSY.
8 0327696 CONTRE-CROU, arbre d'articulation
9 0328696 SCREEN, Ground lead
10 0338942 COVER, Mount bracket lower This part replaces 0320864.
11 0322000 SCREW, Starter to crankcase
12 0340006 BRACKET, Mount This part replaces 0327051.
13 0320746 CROU, support de montage
15 0398481 EXHAUST HOUSING
15 0398482 EXHAUST HOUSING
17 0307708 RONDELLE GROWER
18 0434632 MONTURE CAOUTCHOUC, inférieur This part replaces 0391710.
19 0328078 SCREW, Mount
20 0306314 L'WASHER,Scr,long
21 0320961 JOINT, boîtier d'engrenages vers carter intérieur
23 0331051 EXHAUST DEFLECTOR
24 0331155 GASKET, Exhaust deflector
25 0306644 VIS, capteur de papillon
26 0330499 EXHAUST HOUSING, Inner upper
27 0346897 TUBE WATER, Inlet This part replaces 0321016.
27 0346898 TUBE WATER, Inlet This part replaces 0321015.
28 0305145 GROMMET
29 0328655 GASKET, Megaphone to adapter
30 0395119 ADAPTER, Exh. hsg.
32 0303459 ECREW,Exhaust cover,1-1/2"long
33 0306418 VIS, ancrage
36 0306409 VIS, collecteur vers carter-moteur
37 0328590 Adapter to powerhead
38 0395539 RUBBER MOUNT ASSY., Upper
41 0335612 SCREW, Upper This part replaces 0328692.
42 0322624 WASHER, Lag screw This part replaces 0313169.
43 0583967 GROUND LEAD This part replaces 0583357.
44 0323599 LOCKNUT This part replaces 0316828.
45 0395844 STEERING BRACKET, ASSY., Stbd.
47 0335553 TILT TUBE This part replaces 0321052.
48 0333434 SEAL, Cover to adapter
49 0320792 PIN
52 0321054 SPRING CLIP
53 0363254 NUT, Stern bracket screw This part replaces 0321861.
54 0307238 RONDELLE
55 0320248 RONDELLE, écrou
56 0318273 Bolt hex retainer 1/2 in.
57 0319886 SCREW
58 0318572 Bolt thread protective cap 1/2 in.
59 0318573 SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) This part replaces 0327053.
59 0363011 SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0321577.
59 0363012 SCREW, Bracket mounting This part replaces 0313327.
60 0318272 Nut backing plate (square) 1/2 in.
61 0436541 ROD Assy, Thrust This part replaces 0387278.
62 0321053 SORUBG,Thrust rod
64 0396309 STERN BRACKET ASSEMBLY, Port
65 0390442 LOCATING LEVER, Rod
67 0327796 EXHASUT HSG,Inner lower
67 0327797 EXHAUST HOUSING, Inner lower
68 0328654 TUNING MEGAPHONE
68 0333001 TUNING MEGAPHONE, 120 only
71 0320936 JOINT, boîtier échappement, inférieur
72 0303398 VIS, support This part replaces 0302030.
73 0329109 SHOULDER SCREW
76 0328742 NUT
77 0330931 VIS, support supérieur
78 0314956 STUD
79 0323222 GASKET, Inner exh. hsg to meg
80 0321735 SUPPORT, Stern bracket
82 0303398 VIS, support
84 0583359 SENDING UNIT ASSY
90 0319682 VIS, capteur vers plaque
91 0322376 NUT, Wiper, tilt tube
92 0329748 SEAL Shift rod
93 0329161 SCREW, Exhaust housing
98 0330929 PLATE, Upper mount
99 0433458 ANODE, Port stern bracket This part replaces 0398331.
100 0333350 SCREW, Anode
101 0303459 ECREW,Exhaust cover,1-1/2"long
102 0329743 STUD, Cover mount
103 0349556 Washer This part replaces 0329749.
104 0349557 MOUNT This part replaces 0328584.
105 0306503 SCREW, Short
106 0398200 SEAL ASSY., Exhaust hsg.
107 0512741 DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique
108 0210708 DECAL, Ex. hsg. Ev.
108 0332731 DECAL Exh. hsg., Jo.
109 0333000 ADAPTER, Water tube to megaphone
110 0332999 GASKET, Water tube to megaphone
