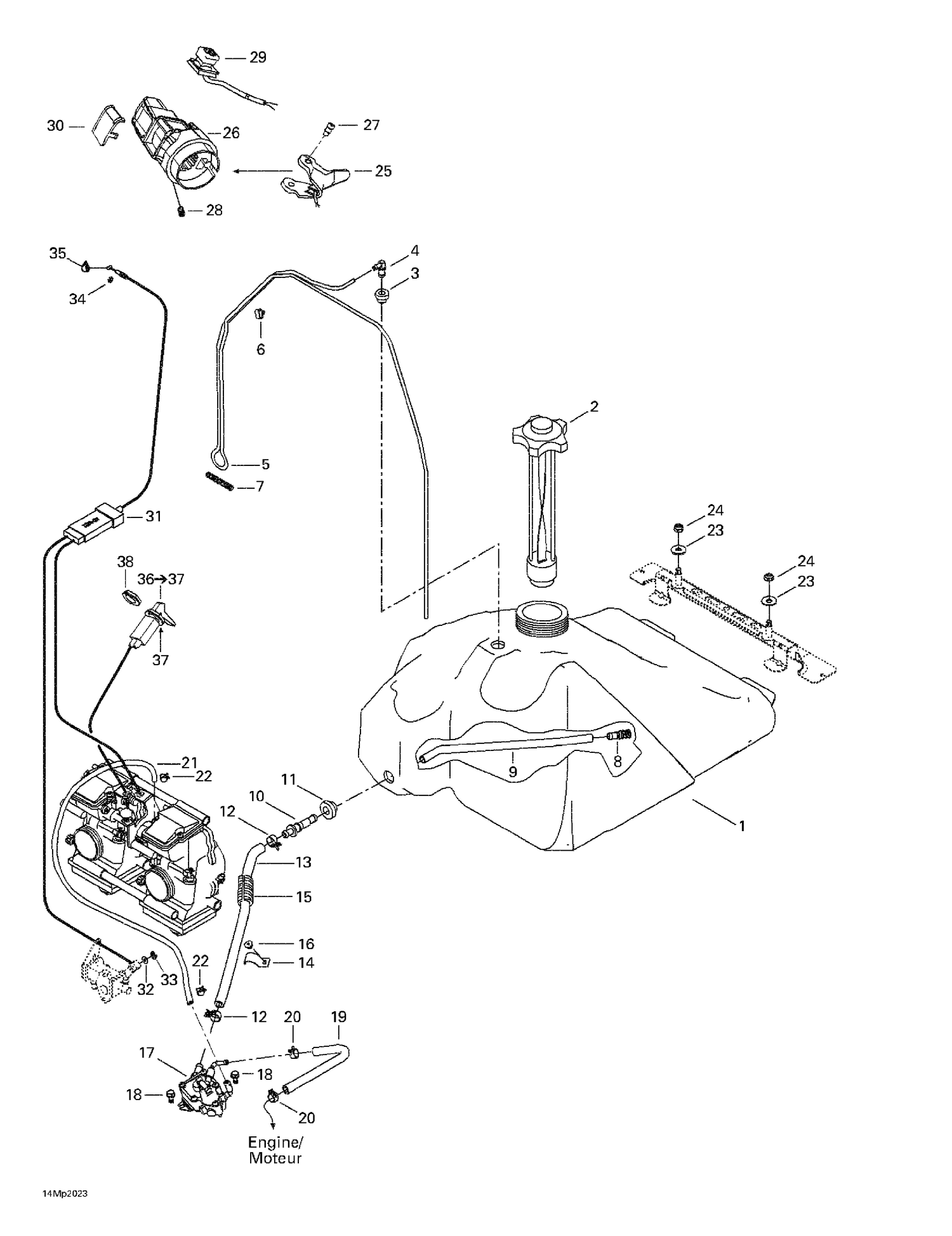

02- Fuel System
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513032987 | Fuel Tank |
| 2 | 513033020 | Fuel Tank Cap This part replaces 513032901. |
| 3 | 513032908 | Grommet |
| 4 | 414814100 | Male Connector |
| 5 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 6 | 513032923 | TUBE CLAMP - Call your local BRP dealership |
| 7 | 414818200 | SPRING - Call your local BRP dealership |
| 8 | 414872100 | Fuel Filter Strainer |
| 9 | 415005700 | Hose |
| 10 | 414872700 | Male Connector |
| 11 | 707800347 | Grommet This part replaces 570273900. |
| 12 | 513032979 | UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 13 | 513032903 | Formed Hose |
| 14 | 415018200 | CLIP - Call your local BRP dealership |
| 15 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 16 | 390406500 | Pop Rivet 3/16" |
| 17 | 403901806 | FUEL PUMP - Call your local BRP dealership This part replaces 403901802. |
| 18 | 210361280 | HEX. SCREW M6 X 12 - Call your local BRP dealership |
| 19 | 219704549 | Hose This part replaces 219704439. |
| 20 | 414415200 | Spring Clamp |
| 21 | 415117900 | Formed Tube |
| 22 | 414420700 | Spring Clamp |
| 23 | 234082410 | Flat Washer 8 mm |
| 24 | 232581414 | Hex. Elastic Stop Nut M8 |
| 25 | 512059481 | Throttle Handle This part replaces 512059107. |
| 26 | 512059763 | THROTTLE HOUSING - Call your local BRP dealership This part replaces 512059109. |
| 27 | 732601143 | Flange Screw |
| 28 | 414440800 | Socket Set Screw M8 X 10 |
| 29 | 515175410 | Kill Switch |
| 30 | 572100901 | Switch Cover |
| 31 | 512059112 | THROTTLE CABLE - Call your local BRP dealership |
| 32 | 234081100 | Flat Washer 8 mm, Nylon This part replaces 414753300. |
| 33 | 414753500 | Circlip |
| 34 | 414274500 | Circlip |
| 35 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 37 | 394103300 | Lock Washer, Interior Teeth |
