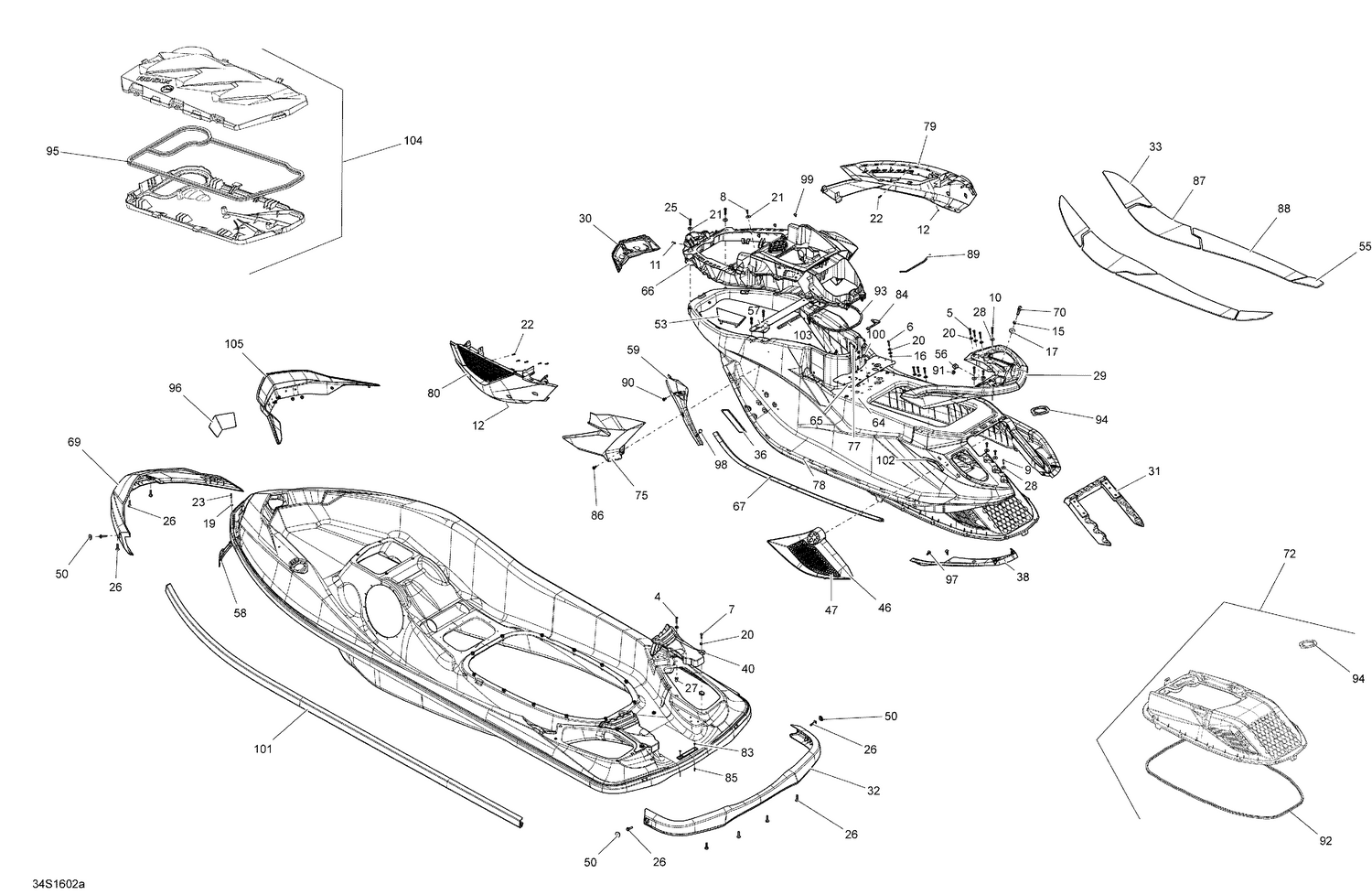

| Ref | Part Number | Description |
|---|
| 1 |
204100049 |
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
| 2 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 3 |
205364560 |
SOCKET SCREW HEAD M6 X 45 - Call your local BRP dealership |
| 4 |
205463560 |
Socket Head Screw M6 X 35 |
| 5 |
207063060 |
Hex. Screw M6 X 30 |
| 6 |
207162560 |
Hex. Screw M6 X 25 |
| 7 |
250000681 |
Hex Screw M6 X 30 |
| 8 |
207361660 |
Hex. Screw M6 X 16, Scotch Grip |
| 9 |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
| 10 |
207363560 |
Screw Hex. M6 X 35, Scotch Grip |
| 11 |
211000106 |
HEX. FORMING SCREW M6 X 16 - Call your local BRP dealership |
| 12 |
211100002 |
Push Nut |
| 13 |
219903084 |
CAUTION DECAL, ENGINE OIL - Call your local BRP dealership |
| 14 |
219903090 |
WARNING DECAL, GASOLINE VAPOR - Call your local BRP dealership |
| 15 |
232100600 |
Hex. Jam Nut M10 |
| 16 |
232561200 |
Brass Elastic Stop Nut M6 |
| 17 |
234002600 |
Flat Washer 10 mm, Stainless |
| 18 |
234032600 |
Flat Washer M3, Stainless |
| 19 |
234042600 |
Flat Washer 4 mm, Stainless |
| 20 |
234062600 |
Flat Washer M6, Stainless |
| 21 |
234082600 |
Flat Washer 8 mm, Stainless |
| 22 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 23 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 24 |
241731260 |
Oval Philipp Screw KA30 x 12 |
| 25 |
243163560 |
Plastite Hex. Screw M6.8 X 35 |
| 26 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 27 |
250100150 |
Expansion Nut M6 X 1 |
| 28 |
250200022 |
Flat Washer M6.6 X 22 |
| 29 |
291004621 |
Black, Rear Handle |
| 30 |
269501797 |
FRONT GRID - Call your local BRP dealership |
| 31 |
279000214 |
REAR PIVOT ASS'Y - Call your local BRP dealership |
| 32 |
291004274 |
Rear Bumper |
| 33 |
291002607 |
ANTI SLIP MAT FL - Call your local BRP dealership |
| 33 |
291002608 |
RH Front Carpet |
| 36 |
291002694 |
LH FOOTREST COVER - Call your local BRP dealership |
| 36 |
291002695 |
RH FOOTREST COVER - Call your local BRP dealership |
| 38 |
291002696 |
LH REAR SCRAPER JOINT - Call your local BRP dealership |
| 38 |
291002697 |
RH REAR SCRAPER JOINT - Call your local BRP dealership |
| 40 |
291002658 |
LH Rear Grille |
| 40 |
291002698 |
RH REAR GRILL - Call your local BRP dealership |
| 41 |
291002724 |
FRONT REWINDER COVER - Call your local BRP dealership |
| 42 |
291002726 |
BUTTON - Call your local BRP dealership |
| 43 |
291002727 |
UNDER CAM - Call your local BRP dealership |
| 44 |
291002729 |
ROPE GUIDE - Call your local BRP dealership |
| 45 |
219704363 |
ROPE 3/16 3000MM LONG - Call your local BRP dealership |
| 46 |
291002739 |
LH LATERAL REAR TRIM - Call your local BRP dealership |
| 46 |
291002741 |
RH Lateral Rear Trim |
| 47 |
291002740 |
LH Rear Side Grille |
| 47 |
291002742 |
RH Rear Side Grille |
| 50 |
291002744 |
Bumber Cap |
| 51 |
291002754 |
Button Cap |
| 52 |
291002755 |
DOUBLE CAGE NUT ASS'Y - Call your local BRP dealership |
| 53 |
291002756 |
FRONT REWINDER CAP - Call your local BRP dealership |
| 54 |
291002762 |
INSIDE COVER - Call your local BRP dealership |
| 55 |
291002775 |
ANTI SLIP MAT REAR L - Call your local BRP dealership |
| 55 |
291002776 |
ANTI SLIP MAT REAR R - Call your local BRP dealership |
| 56 |
271001732 |
Elastic Nut M10 Housing |
| 57 |
291002778 |
Module Stifner |
| 58 |
291002818 |
DECK NOSE - Call your local BRP dealership |
| 59 |
291002837 |
LH Front Scraper Joint |
| 59 |
291002838 |
RH FRONT SCRAPER JOINT - Call your local BRP dealership |
| 62 |
291003023 |
JAM CLEAT SYSTEM ASS'Y - Call your local BRP dealership |
| 64 |
291003306 |
LOWER CENTRAL REINFORCEMENT - Call your local BRP dealership |
| 66 |
291004595 |
Front Module This part replaces 291004400. |
| 67 |
291003818 |
MID JOINT - Call your local BRP dealership |
| 69 |
291004275 |
Front Bumper |
| 70 |
291003878 |
Seat Stud |
| 71 |
291004019 |
Retractable Rope Ass'y |
| 72 |
291004056 |
DECK EXTENSION ASS'Y - Call your local BRP dealership |
| 77 |
291004210 |
SEAT PIVOT - Call your local BRP dealership |
| 78 |
291004211 |
UPPER DECK ASS - Call your local BRP dealership |
| 83 |
293000014 |
Black, Snap Cap |
| 84 |
293000118 |
CAP - Call your local BRP dealership |
| 85 |
293150016 |
Rivet 1/8" |
| 86 |
293150123 |
Pop Rivet 3/16" |
| 87 |
291003463 |
LH CENTER FRONT CARPET - Call your local BRP dealership |
| 87 |
291003464 |
RH CENTER FRONT CARPET - Call your local BRP dealership |
| 88 |
291003465 |
LH CENTER REAR CARPET - Call your local BRP dealership |
| 88 |
291003466 |
RH CENTER REAR CARPET - Call your local BRP dealership |
| 89 |
219704381 |
SEAL 1000MM LONG - Call your local BRP dealership |
| 90 |
293150186 |
Pop Rivet 3/16 |
| 91 |
232501200 |
Elastic Stop Nut M10, Brass |
| 92 |
293250185 |
Lip Seal |
| 93 |
293250200 |
NEOPRENE SEAL - Call your local BRP dealership |
| 94 |
293250209 |
LIP SEAL - Call your local BRP dealership |
| 95 |
219704376 |
LIP SEAL 2000MM LONG - Call your local BRP dealership |
| 96 |
293250231 |
GASKET - Call your local BRP dealership |
| 97 |
293730006 |
Black, Dart |
| 98 |
293730010 |
Black Dart |
| 99 |
293830005 |
Rubber Bumper |
| 101 |
291003872 |
Lateral Bumper This part replaces 291004304. |
| 102 |
219704476 |
Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 103 |
219704353 |
Was 271000110 Protection Trim |
| 104 |
295501145 |
Vent Adaptor |
