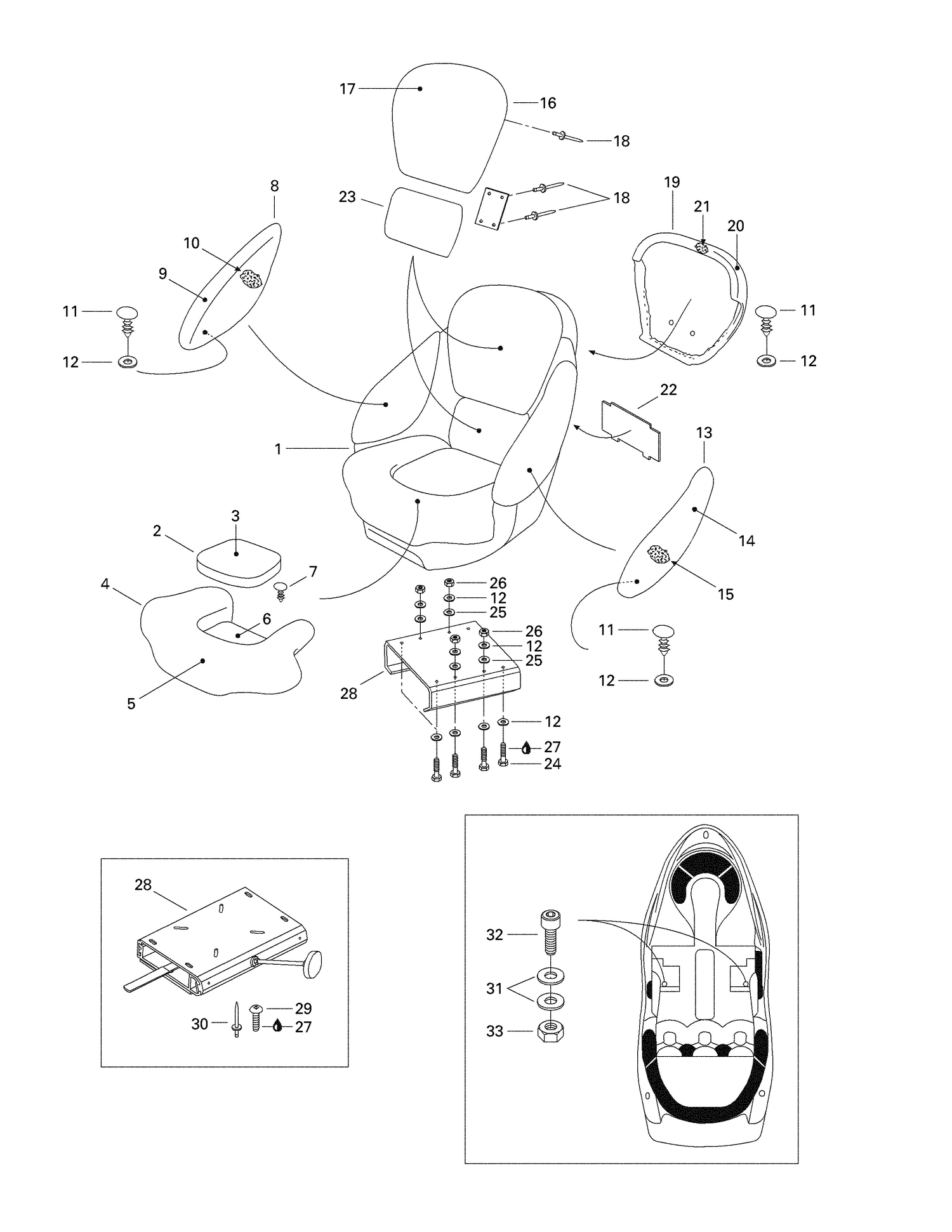

09- Driver Passenger Seat
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204610015 | Rotary Seat Base |
| 3 | 204610057 | Seat Cover (White) |
| 5 | 204610082 | Seat Bezel Cover (Green) |
| 6 | 204610176 | Seat Plate |
| 7 | 293730014 | Black Dart |
| 9 | 204610061 | RH Arm Rest Cover (Green) |
| 10 | 204610062 | Arm Rest Foam (1/4") |
| 11 | 293730006 | Black, Dart |
| 12 | 234062600 | Flat Washer M6, Stainless This part replaces 213200007. |
| 14 | 204610064 | LH Arm Rest Cover (Green) |
| 15 | 204610062 | Arm Rest Foam (1/4") |
| 17 | 204610067 | Inner Backrest Cover (White) |
| 18 | 293150008 | Pop Rivet 3/16" |
| 20 | 204610070 | Seat-Backside Cover (Green) |
| 21 | 204610071 | Seat-Backside Foam (1/4") |
| 22 | 204610195 | Finition Plate |
| 23 | 204610196 | Lumbar Support |
| 24 | 207063060 | Hex. Screw M6 X 30 This part replaces 210000006. |
| 25 | 234082600 | Flat Washer 8 mm, Stainless This part replaces 213200011. |
| 26 | 232561600 | Hex. Elastic Stop Nut M6 This part replaces 212000001. |
| 27 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
| 28 | 204610022 | RH Seat Base |
| 29 | 211000010 | Screw M6 x 35 |
| 30 | 293150013 | Pop Rivet 3/16" |
| 31 | 234081600 | Stainless, Flat Washer 8 mm This part replaces 213200002. |
| 32 | 205083060 | Socket Screw M8 X 30 This part replaces 210100008. |
| 204610023 | LH | Seat Base 204610023 |
