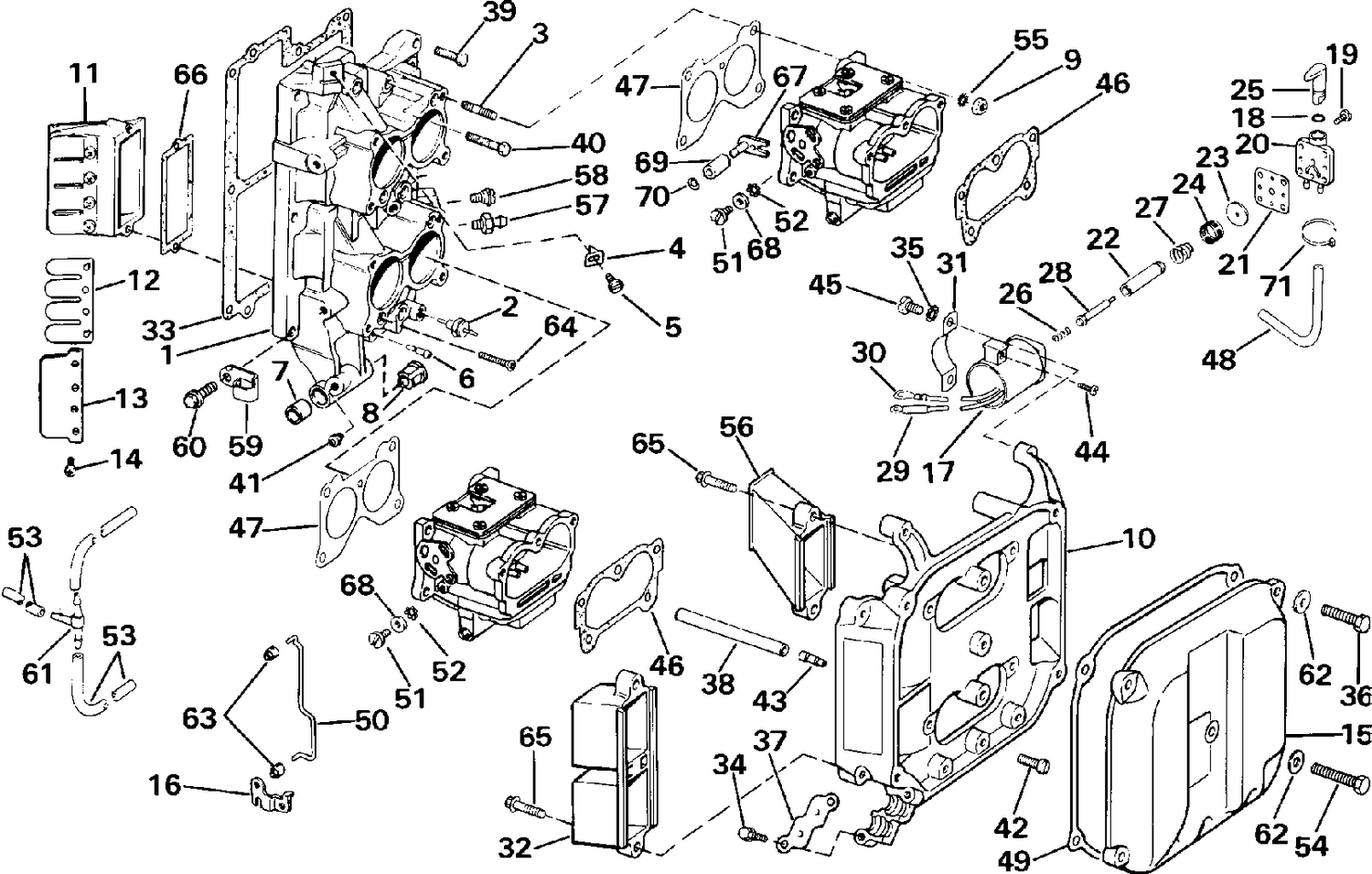

| Ref | Part Number | Description |
|---|
| 1 |
0397075 |
INTAKE MANIFOLD ASSY |
| 2 |
0392988 |
CHECK VALVE |
| 3 |
0314956 |
STUD |
| 4 |
0330115 |
CLAMP, Power pack connector |
| 5 |
0329594 |
SCREW, Cam follower |
| 7 |
0332126 |
BUSHING, Shift lever |
| 8 |
0330935 |
BAGUE, retenue de la tige du levier de sens de marche |
| 9 |
0328742 |
NUT |
| 10 |
0329611 |
BASE, Air silencer |
| 11 |
0389823 |
CLAPET |
| 15 |
0325335 |
COVER, Air silencer |
| 16 |
0320575 |
ADJ LEVER, Throttle link |
| 17 |
5007356 |
Kit Ay This part replaces 0397909. |
| 20 |
0511807 |
COVER&GASKET AY |
| 21 |
0333448 |
GASKET This part replaces 0511808. |
| 23 |
0333448 |
GASKET This part replaces 0511810. |
| 31 |
0330118 |
CLAMP |
| 32 |
0330939 |
EXTENSION, Starboard |
| 33 |
0319174 |
GASKET, Exhaust cover, 85, 100, 115 hp |
| 36 |
0329894 |
SCREW |
| 37 |
0323400 |
CLAMP, Throttle shift cable |
| 38 |
HOSE, |
Air silencer 6-1/2" long |
| 39 |
0309905 |
SCEW,Cylinder head |
| 40 |
0322906 |
SCREW, Intake, long |
| 42 |
0328695 |
CLAMP, Engine cable |
| 44 |
0329182 |
VIS, borne |
| 46 |
0319771 |
GASKET SET, Air silencer |
| 47 |
0327707 |
GASKET, Air silencer |
| 48 |
HOSE, |
Primer system |
| 49 |
0321722 |
GASKET, Cover |
| 50 |
0330158 |
LINK, Throttle lever |
| 53 |
HOSE, |
Drain system |
| 54 |
0303398 |
VIS, support |
| 56 |
0329612 |
EXTENSION, Base, port |
| 59 |
0325546 |
CLIP, Drain hose |
| 61 |
0325569 |
T, amorçage |
| 62 |
0329241 |
RONDELLE |
| 63 |
0313329 |
LOCKWASHER, Carburetor link |
| 64 |
0321707 |
SCREW, Leaf plate |
| 66 |
0321907 |
GASKET, Leaf plate |
| 67 |
0397036 |
LEVER & PIN |
| 69 |
0330130 |
ROLLER |
| 70 |
0308776 |
O-RING |
