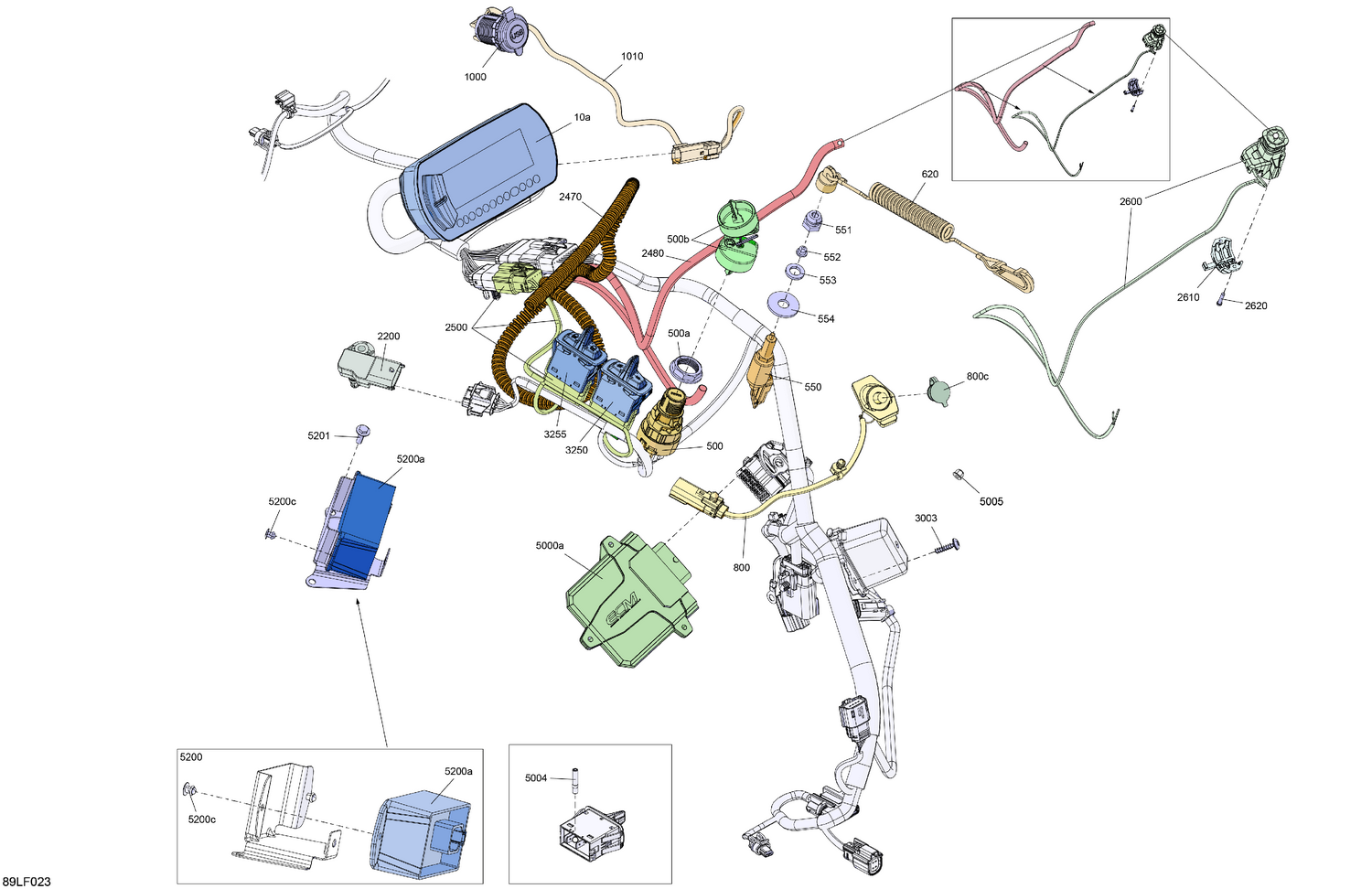

08- Electric - Upper Section
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 515178226 | Multifunction Gauge Full Size Color |
| 500a | 710007923 | Nut Specialized |
| 500b | 715900934 | Blank Ignition Key |
| 550 | 515175653 | Brake Switch |
| 551 | 515145900 | Switch Nut |
| 552 | 570151100 | Plunger Cap |
| 553 | 503189564 | Washer |
| 554 | 234002600 | Flat Washer 10 mm, Stainless |
| 620 | 515178283 | Cap Ass'y |
| 800c | 572103300 | Cap |
| 1000 | 219400510 | USB Outlet |
| 1010 | 515178190 | Harness |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2470 | 515178885 | Sheath Corrugated 9 MM ID |
| 2480 | 415130141 | Sleeve |
| 2500 | 515179085 | Console Wiring Harness |
| 2600 | 515179472 | Emergency Stop Switch |
| 2610 | 515179182 | Clamp |
| 2620 | 250001201 | Screw PT. Socket T10 K30 X 16 |
| 3003 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 3250 | 515178462 | Switch Rocker Hand Warmer |
| 3255 | 515178463 | Switch Rocker Headlignt |
| 5000a | 515179453 | ECM Module |
| 5004 | 515180121 | Stud Double End M5X0.8X26 |
| 5005 | 233251434 | Flanged Elastic Nut M5 This part replaces 233251414. |
| 5200a | 515179803 | Boost Converter Module |
| 5200c | 293150263 | Black, Ornit Rivet 4.8 X 10.3 |
