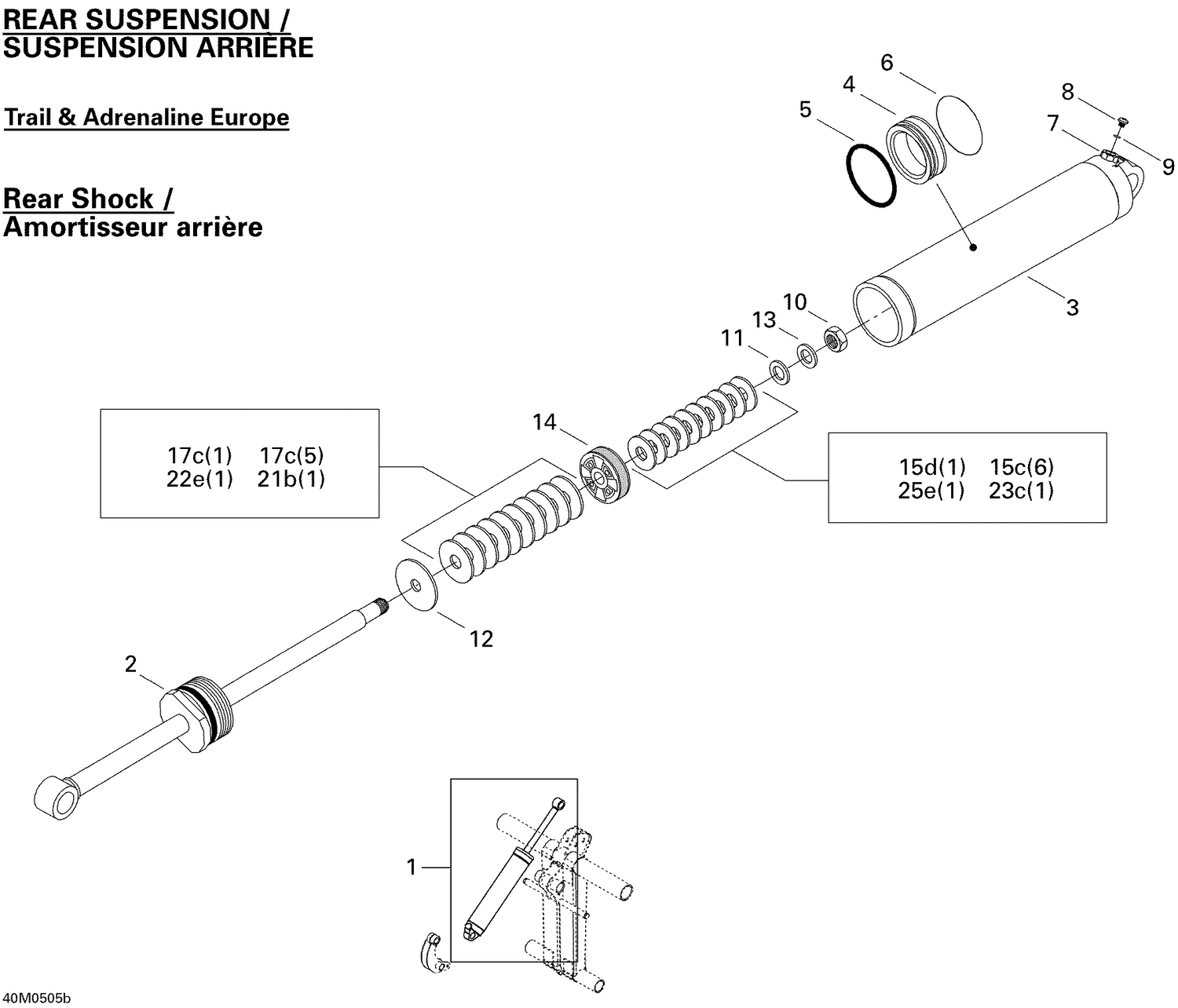

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Rod Ass'Y |
| 3 |
Not |
Available As Spare Part - Cylinder Tube |
| 4 |
503189008 |
FLOTTING PISTON - Call your local BRP dealership |
| 5 |
503189007 |
O-RING - Call your local BRP dealership |
| 6 |
503189006 |
PISTON RING - Call your local BRP dealership |
| 7 |
505070398 |
Air Valve |
| 8 |
505070399 |
Screw |
| 9 |
505070400 |
O-Ring |
| 10 |
Not |
Available As Spare Part - Nut |
| 11 |
Not |
Available As Spare Part - Valve Stopper |
| 12 |
Not |
Available As Spare Part - Valve Stopper |
| 13 |
Not |
Available As Spare Part - Washer |
| 15a |
Not |
Available As Spare Part - Leaf Valve Ø40 x 0.305 (C46) |
| 15b |
503189041 |
Leaf Valve Ø40 X 0.254 (C46) |
| 15c |
503189040 |
Leaf Valve Ø40 X 0.203 (C46) |
| 15d |
503189039 |
Leaf Valve Ø40 X 0.152 (C46) |
| 15e |
Not |
Available As Spare Part - Leaf Valve Ø40 x 0.114 (C46) |
| 16a |
Not |
Available As Spare Part - Leaf Valve Ø38 x 0.305 (C46) |
| 16b |
Not |
Available As Spare Part - Leaf Valve Ø38 x 0.254 (C46) |
| 16c |
Not |
Available As Spare Part - Leaf Valve Ø38 x 0.203 (C46) |
| 16d |
Not |
Available As Spare Part - Leaf Valve Ø38 x 0.152 (C46) |
| 16e |
Not |
Available As Spare Part - Leaf Valve Ø38 x 0.114 (C46) |
| 17a |
Not |
Available As Spare Part - Leaf Valve Ø36 x 0.305 (C46) |
| 17b |
503189038 |
Leaf Valve Ø36 X 0.254 (C46) |
| 17c |
503189037 |
Leaf Valve Ø36 X 0.203 (C46) |
| 17d |
503189036 |
Leaf Valve Ø36 X 0.152 (C46) |
| 17e |
Not |
Available As Spare Part - Leaf Valve Ø36 x 0.114 (C46) |
| 18a |
Not |
Available As Spare Part - Leaf Valve Ø34 x 0.305 (C46) |
| 18b |
Not |
Available As Spare Part - Leaf Valve Ø34 x 0.254 (C46) |
| 18c |
Not |
Available As Spare Part - Leaf Valve Ø34 x 0.203 (C46) |
| 18d |
Not |
Available As Spare Part - Leaf Valve Ø34 x 0.152 (C46) |
| 18e |
Not |
Available As Spare Part - Leaf Valve Ø34 x 0.114 (C46) |
| 19a |
503189035 |
Leaf Valve Ø30 X 0.305 (C46) |
| 19b |
503189034 |
Leaf Valve Ø30 X 0.254 (C46) |
| 19c |
503189033 |
Leaf Valve Ø30 X 0.203 (C46) |
| 19d |
503189032 |
Leaf Valve Ø30 X 0.152 (C46) |
| 19e |
503189031 |
Leaf Valve Ø30 X 0.114 (C46) |
| 20a |
503189030 |
Leaf Valve Ø28 X 0.305 (C46) |
| 20b |
503189029 |
Leaf Valve Ø28 X 0.254 (C46) |
| 20c |
503189028 |
Leaf Valve Ø28 X 0.203 (C46) |
| 20d |
503189027 |
Leaf Valve Ø28 X 0.152 (C46) |
| 20e |
503189026 |
Leaf Valve Ø28 X 0.114 (C46) |
| 21a |
503189025 |
Leaf Valve Ø26 X 0.305 (C46) |
| 21b |
503189024 |
Leaf Valve Ø26 X 0.254 (C46) |
| 21c |
503189023 |
Leaf Valve Ø26 X 0.203 (C46) |
| 21d |
503189022 |
Leaf Valve Ø26 X 0.152 (C46) |
| 21e |
503189021 |
Leaf Valve Ø26 X 0.114 (C46) |
| 22a |
503189020 |
Leaf Valve Ø24 X 0.305 (C46) |
| 22b |
503189019 |
Leaf Valve Ø24 X 0.254 (C46) |
| 22c |
503189018 |
Leaf Valve Ø24 X 0.203 (C46) |
| 22d |
503189017 |
Leaf Valve Ø24 X 0.152 (C46) |
| 22e |
503189016 |
Leaf Valve Ø24 X 0.114 (C46) |
| 23a |
503189015 |
Leaf Valve Ø22 X 0.305 (C46) |
| 23b |
503189014 |
Leaf Valve Ø22 X 0.254 (C46) |
| 23c |
503189013 |
Leaf Valve Ø22 X 0.203 (C46) |
| 23d |
503189012 |
Leaf Valve Ø22 X 0.152 (C46) |
| 23e |
503189011 |
Leaf Valve Ø22 X 0.114 (C46) |
| 24a |
Not |
Available As Spare Part - Leaf Valve Ø20 x 0.305 (C46) |
| 24b |
Not |
Available As Spare Part - Leaf Valve Ø20 x 0.254 (C46) |
| 24c |
Not |
Available As Spare Part - Leaf Valve Ø20 x 0.203 (C46) |
| 24d |
Not |
Available As Spare Part - Leaf Valve Ø20 x 0.152 (C46) |
| 24e |
Not |
Available As Spare Part - Leaf Valve Ø20 x 0.114 (C46) |
| 25a |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.305 (C46) |
| 25b |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.254 (C46) |
| 25c |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.203 (C46) |
| 25d |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.152 (C46) |
| 25e |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.114 (C46) |
| 26a |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0.305 (C46) |
| 26b |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0.254 (C46) |
| 26c |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0.203 (C46) |
| 26d |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0.152 (C46) |
| 26e |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0.114 (C46) |
| 27a |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.305 (C46) |
| 27b |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.254 (C46) |
| 27c |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.203 (C46) |
| 27d |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.152 (C46) |
| 27e |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.114 (C46) |
| 28a |
Not |
Available As Spare Part - Leaf Valve Ø16 x 0.305 (C46) |
| 28b |
Not |
Available As Spare Part - Leaf Valve Ø16 x 0.254 (C46) |
| 28c |
Not |
Available As Spare Part - Leaf Valve Ø16 x 0.203 (C46) |
| 28d |
Not |
Available As Spare Part - Leaf Valve Ø16 x 0.152 (C46) |
| 28e |
Not |
Available As Spare Part - Leaf Valve Ø16 x 0.114 (C46) |
