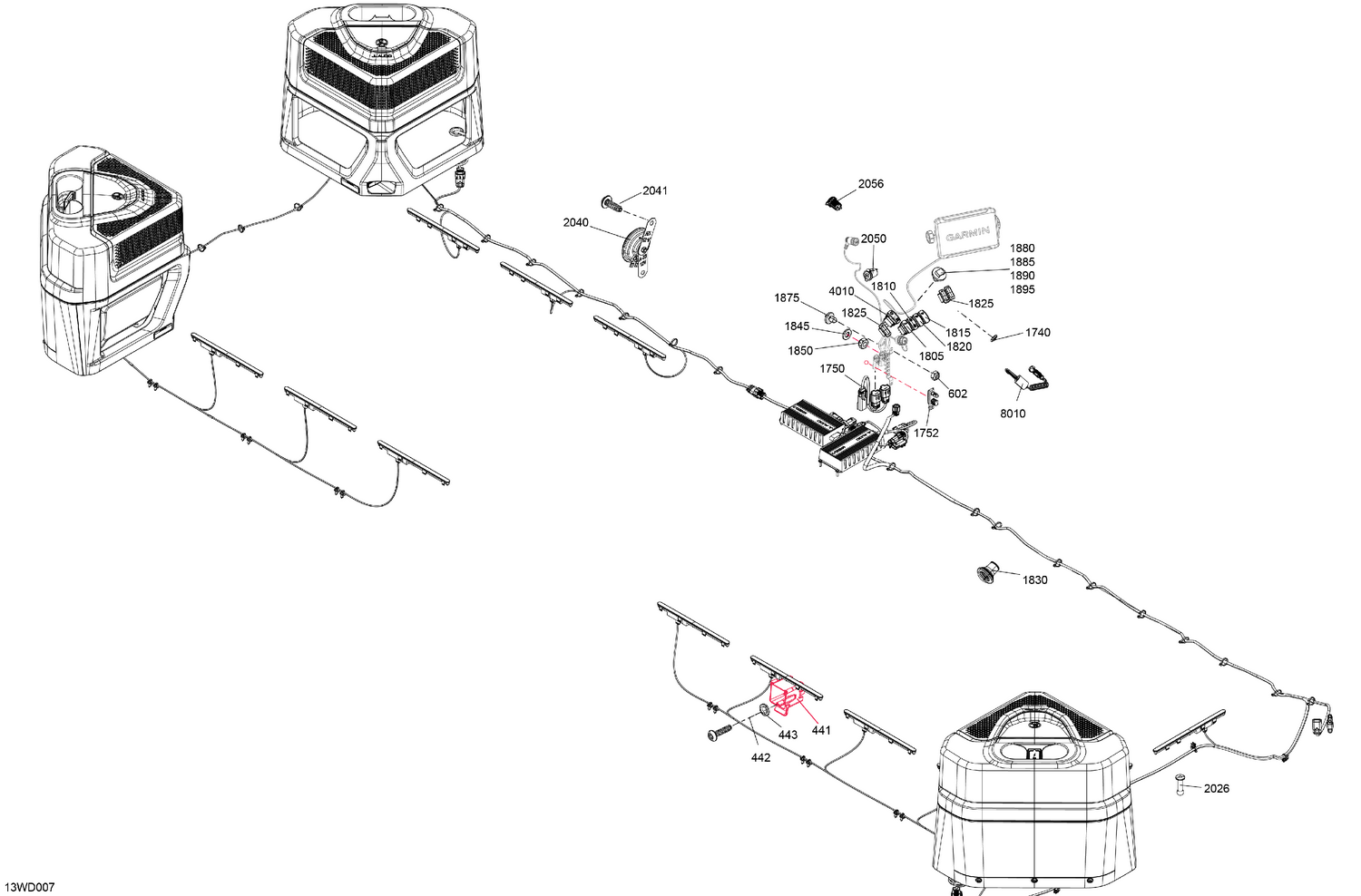

02- MECHANICS - Electric - Upper Section
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 441 | 278004308 | Switch Support |
| 442 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
| 443 | 250200114 | Sealing Washer |
| 602 | 232561200 | Brass Elastic Stop Nut M6 |
| 1740 | 278004274 | Specialized Nut |
| 1750 | 278003684 | Multiple Accessory Harness |
| 1752 | 515179692 | Connector Support |
| 1805 | 278003690 | Horn Switch |
| 1810 | 278003691 | Nav & Anchor Light Switch |
| 1815 | 278003692 | Pump Switch |
| 1820 | 278003693 | Vent Switch |
| 1825 | 278004279 | Plug |
| 1830 | 293720134 | Cable Boot |
| 1845 | 234061600 | Stainless Flat Washer M6 |
| 1850 | 232561200 | Brass Elastic Stop Nut M6 |
| 1875 | 710008294 | Mount Dart |
| 1880 | 710008294 | Mount Dart |
| 1885 | 710008294 | Mount Dart |
| 1890 | 710008294 | Mount Dart |
| 1895 | 710008294 | Mount Dart |
| 2026 | 293150005 | Pop Rivet 3/16" |
| 2040 | 278003906 | Horn |
| 2041 | 250001171 | Plastite Torx Screw Cone HD.M6.81X2 |
| 2056 | 219400510 | USB Outlet |
| 4010 | 278003822 | Courtesy Light Switch |
| 8010 | 278003400 | Safety Lanyard Ass'y, RFID |
