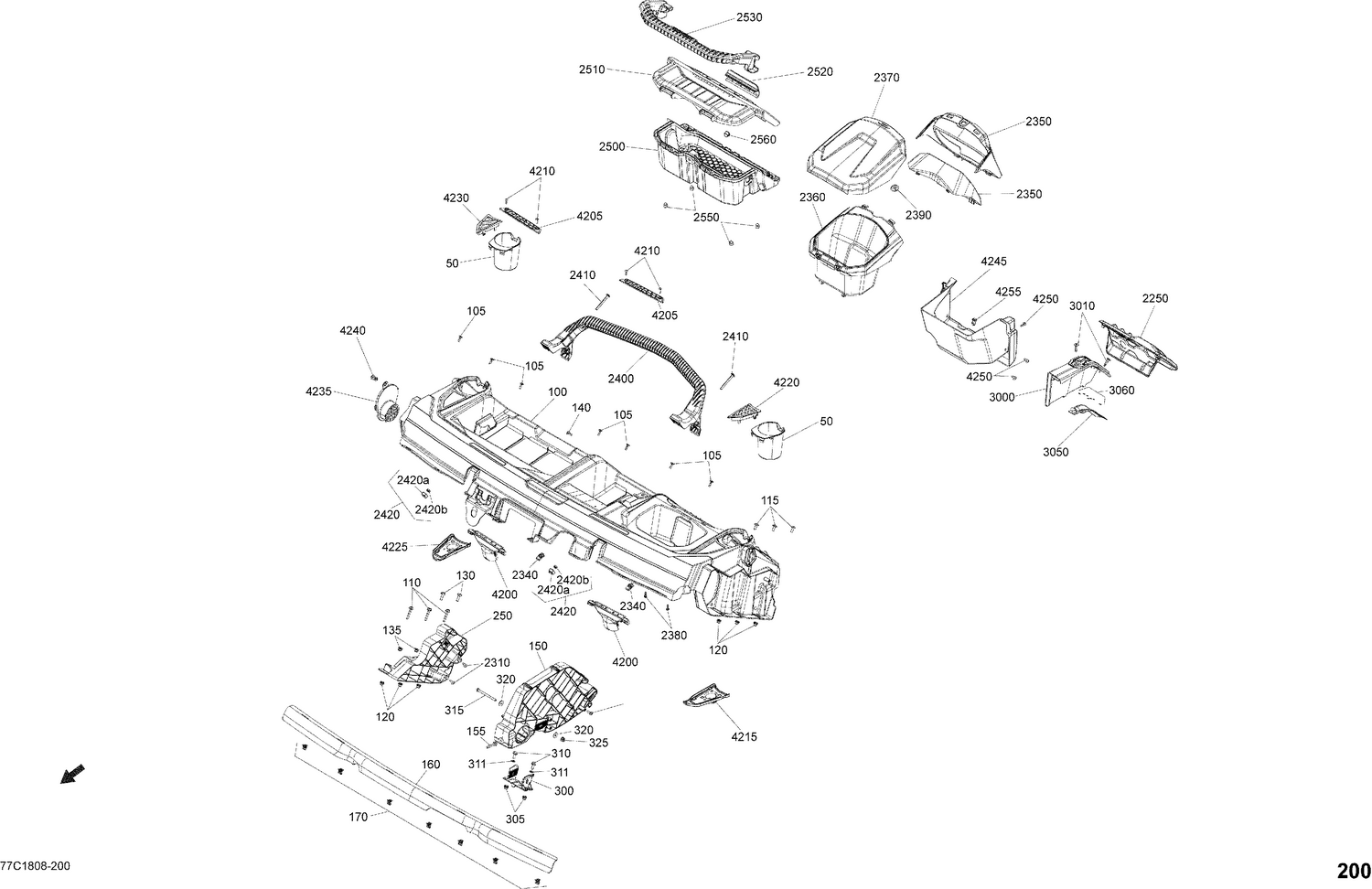

09- Cab Interior Dashboard Defender MAX
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 50 | 707900288 | Cup Holder |
| 100 | 715006520 | Dashboard Upper Kit This part replaces 715004029. |
| 105 | 250000720 | Torx Screw K50 X 16 |
| 110 | 207563544 | Hex. Flange Screw S.Grip M6 X 35 |
| 115 | 250000721 | Torx Truss Screw M6 X 16 |
| 120 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 130 | 250000712 | Torx Screw M6 X 20 |
| 135 | 233261494 | Hex. Flange Elastic Nut M6 |
| 140 | 250000720 | Torx Screw K50 X 16 |
| 150 | 707900249 | Dash Support |
| 155 | 207563544 | Hex. Flange Screw S.Grip M6 X 35 |
| 160 | 707900411 | Dash Trim |
| 170 | 517302785 | Edge Clip |
| 250 | 707900367 | RH Support |
| 300 | 707900940 | Plier This part replaces 707900402. |
| 305 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 310 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 311 | 234061410 | Flat Washer 6 mm |
| 315 | 207068044 | Hex. Screw M6 X 80 |
| 320 | 234062670 | Stainless Steel Flat Washer |
| 325 | 233261494 | Hex. Flange Elastic Nut M6 |
| 2250 | 703501098 | Switch Support This part replaces 707900320. |
| 2310 | 250000720 | Torx Screw K50 X 16 |
| 2340 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2360 | 703501087 | Storage Box Ass'y This part replaces 707900284. |
| 2370 | 703501087 | Storage Box Ass'y This part replaces 707900225. |
| 2380 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 2390 | 705003264 | Grommet |
| 2400 | 707900248 | Passenger Handhold |
| 2410 | 250000648 | Torx Screw M6 X 60 |
| 2420a | 269500252 | M6 Nut Housing Ass'y |
| 2420b | 232561600 | Hex. Elastic Stop Nut M6 |
| 2500 | 715004344 | Removable Storage Bin This part replaces 707900244. |
| 2510 | 715004344 | Removable Storage Bin This part replaces 707900245. |
| 2520 | 269501945 | Clip |
| 2530 | 707900567 | Handle |
| 2550 | 293830005 | Rubber Bumper |
| 2560 | 293000120 | Cap |
| 3000 | 707900608 | Shifter Gate |
| 3010 | 250000728 | Torx Screw M6 X 25 |
| 3050 | 707900506 | Shifter Gate Deflector |
| 3060 | 250100178 | Push Nut |
| 4200 | 707900452 | Central Adaptor |
| 4205 | 707900434 | Front Grid |
| 4210 | 250000759 | Torx Truss Pt K40 X 16 |
| 4215 | 707900437 | LH Adaptor |
| 4220 | 707900435 | LH Grid |
| 4225 | 707900455 | RH Adaptor |
| 4230 | 707900436 | RH Grid |
| 4235 | 707900438 | Side Flange |
| 4240 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 4245 | 707900852 | Storage Box LWR F This part replaces 707900417. |
| 4250 | 250000720 | Torx Screw K50 X 16 |
