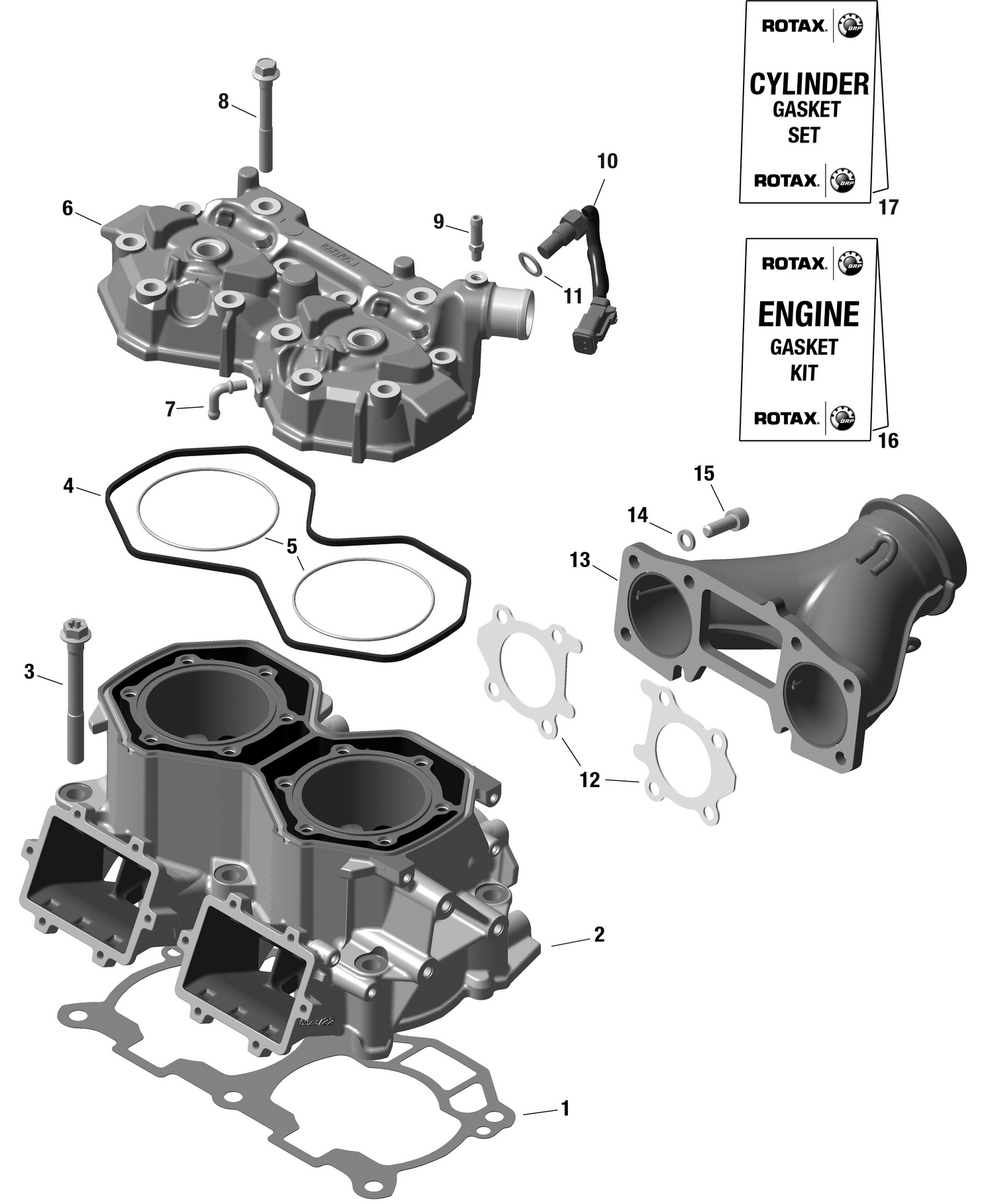

01- ROTAX - Cylinder
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420831070 | Gasket 0.5 |
| 2 | 420923743 | Cylinderblock Plasma This part replaces 420923727. |
| 3 | 420441187 | Torx Flange Screw M10 X 90 -SW 13/T50 |
| 6 | 420613705 | Cylinder Head |
| 7 | 420924802 | Fittin 90D |
| 8 | 420640959 | Collar Hex Screw M8 X 68.5 |
| 9 | 420924724 | Hose Nipple |
| 10 | 420664509 | Temperature Sensor This part replaces 420664508. |
| 12 | 420430487 | Gasket |
| 13 | 420873035 | Exhaust Manifold Ass'y |
| 14 | 420427290 | Washer |
| 15 | 420841051 | Allen Screw M8 X 22 |
| 16 | 420894370 | Engine Gasket Set |
