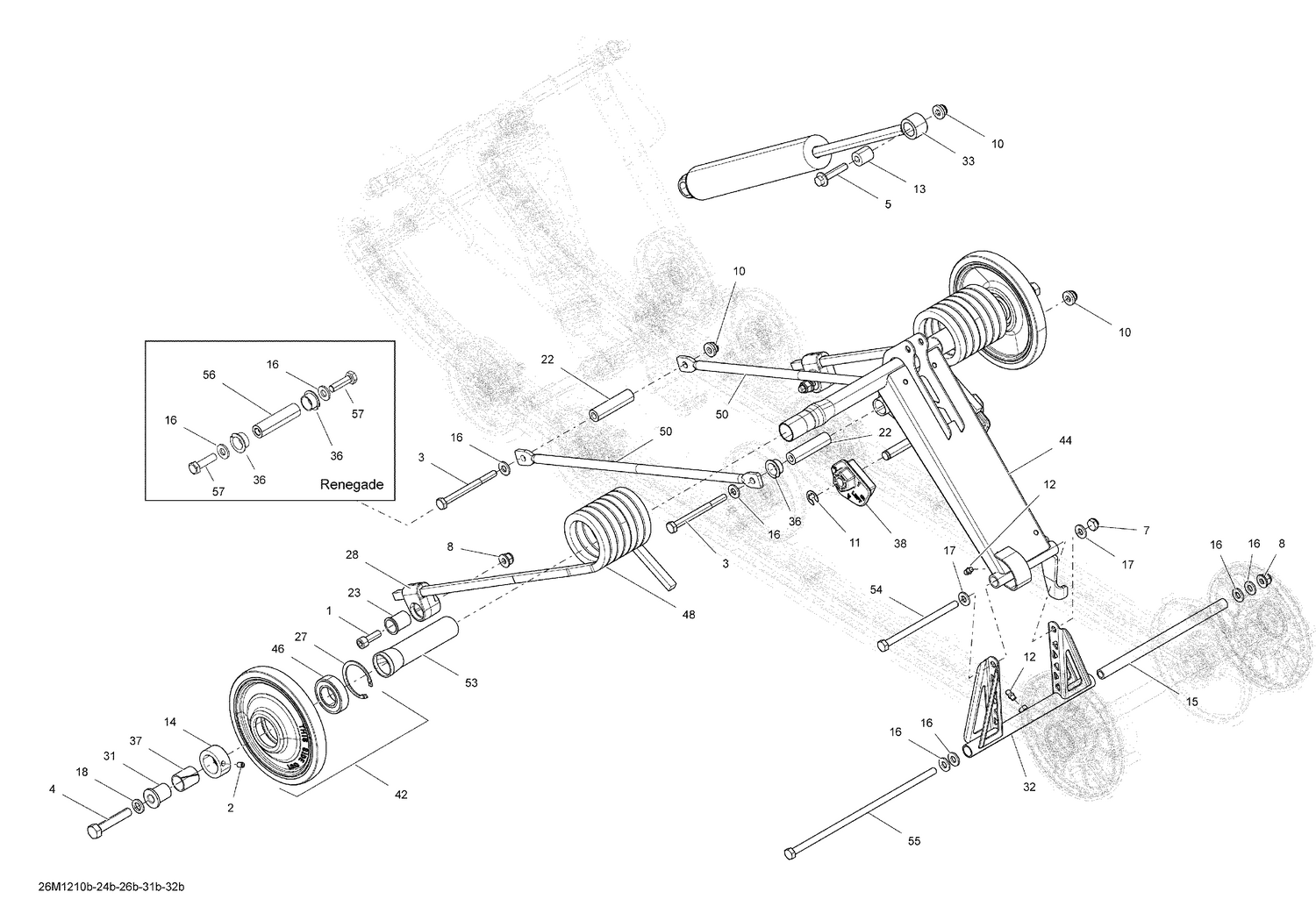

08- Rear Suspension Rear Arm
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205082544 | Socket Head Screw M8 X 25 |
| 2 | 206260844 | Socket Set Screw M6 X 8 |
| 3 | 207089044 | Hex. Screw M8 X 90 |
| 4 | 207226044 | HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership |
| 5 | 207684044 | Hex. Flange Screw M8 X 40 |
| 7 | 232581414 | Hex. Elastic Stop Nut M8 |
| 8 | 250100131 | Elastic Flange Nut M8 |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 |
| 11 | 293370013 | E-Circlip |
| 12 | 408200700 | Grease Fitting |
| 13 | 414936000 | Bushing |
| 14 | 503168800 | Retaining Ring |
| 15 | 503189156 | Pivot Arm Axle |
| 16 | 503189157 | Washer |
| 16 | 503192494 | Washer |
| 17 | 503189157 | Washer |
| 18 | 503189276 | Washer |
| 22 | 503190643 | Axle Bar (Long) |
| 23 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 27 | 415129371 | Retaining Ring |
| 28 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 31 | 503192223 | BUSHING - Call your local BRP dealership |
| 32 | 503191209 | Pivot Arm |
| 33 | 503193190 | Rear Shock HPG Seal This part replaces 503192295. |
| 36 | 503191555 | Swivel Bushing |
| 37 | 503191556 | Extended Bushing |
| 38 | 503191565 | LH Cam Adjuster |
| 38 | 503191566 | RH Cam Adjuster |
| 42 | 503191738 | Black, Wheel Ass'y 155 mm |
| 44 | 503192252 | Rear Arm Ass'y This part replaces 503192253. |
| 46 | 503193548 | Ball Bearing This part replaces 503191982. |
| 48 | 503192270 | Black, RH Spring Square |
| 48 | 503192271 | Black, LH Spring Square |
| 50 | 503196617 | Link Rod This part replaces 503192255. |
| 53 | 572080700 | Bushing |
| 54 | 732601197 | Bolt M8, Short |
| 55 | 503192440 | Bolt M8 X 248mm |
| 56 | XXX | Not Available As Spare Parts |
