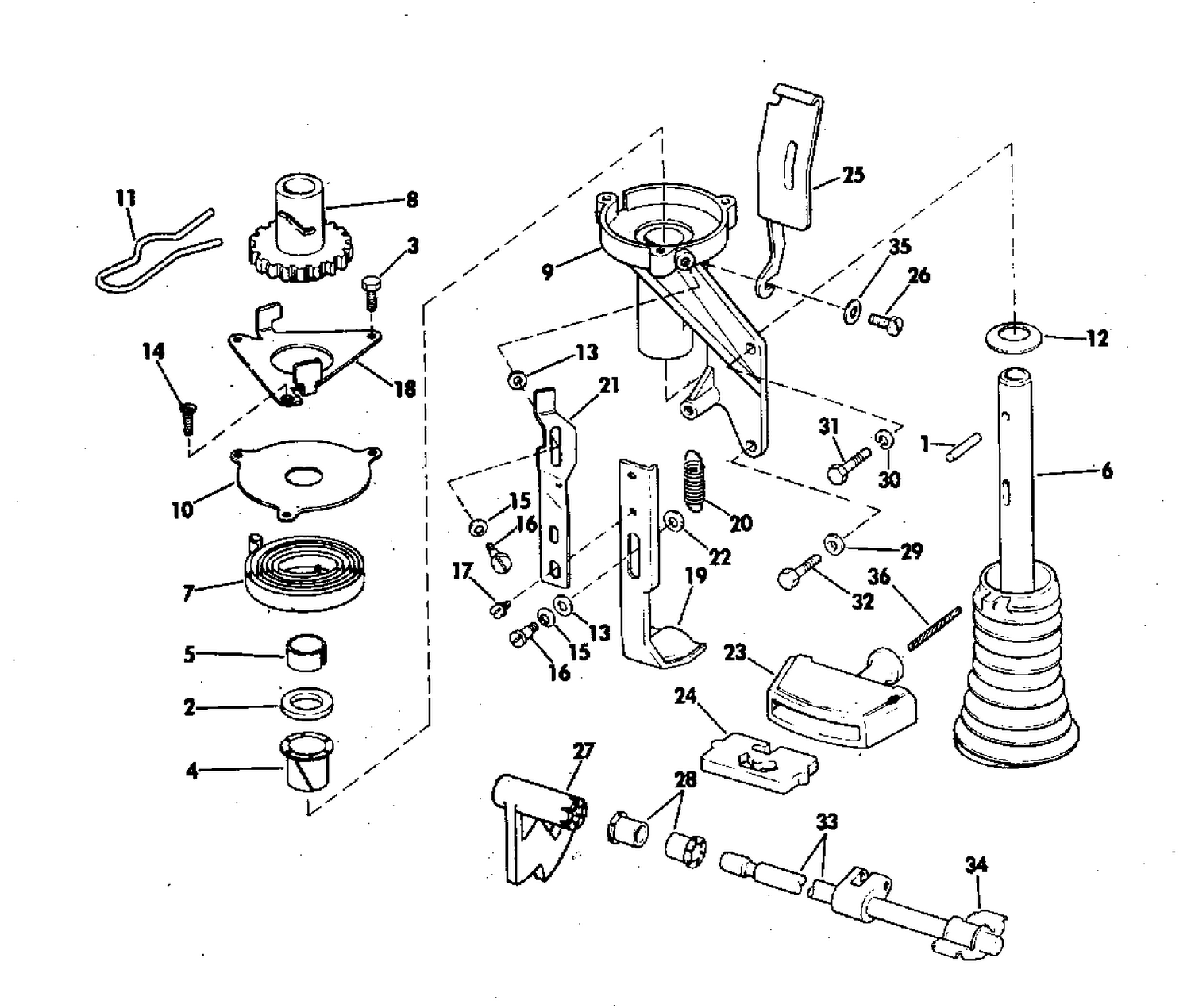

| Ref | Part Number | Description |
|---|
| 1 |
0317518 |
PIN, Pinion |
| 2 |
0313925 |
THRUST WASHER |
| 3 |
0317602 |
SCREW, Cover to bracket |
| 4 |
0317382 |
BUSHING, Starter shaft |
| 5 |
0317391 |
RETAINER, Starter spring |
| 6 |
0385212 |
SPOOL & STARTER REWIND |
| 7 |
0317380 |
SPRING, Starter rewind |
| 8 |
0317530 |
PINION, Starter |
| 9 |
0317375 |
BRACKET, Rewind starter |
| 10 |
0317379 |
STARTER, Brkt |
| 11 |
0317531 |
SPRING, Pinion drag |
| 12 |
0318617 |
SPRING, Washer This part replaces 0317490. |
| 15 |
0309750 |
RONDELLE, ressort - Tige soupape d'échappement |
| 16 |
0318529 |
SHOULDER SCREW |
| 17 |
0317601 |
SCREW, Cam to link |
| 18 |
0317603 |
LATCH, Spring pinion |
| 19 |
0317604 |
LINK, Starter lockout |
| 20 |
0317610 |
SPRING, Starter lockout |
| 21 |
0317605 |
CAM, Starter lockout |
| 23 |
0313154 |
HANDLE |
| 25 |
0318610 |
GUIDE, Starter rope This part replaces 0317550. |
| 26 |
0309905 |
SCEW,Cylinder head |
| 27 |
0317538 |
CAM, Shaft interlock |
| 28 |
0312708 |
BUSHING |
| 29 |
0306453 |
LOCKWASHER, Fuel pump |
| 31 |
0302479 |
VIS, démarreur vers bloc cylindres-carter This part replaces 0306416. |
| 33 |
0385302 |
LEVER & SHIFT SHAFT ASSY |
| 34 |
0317606 |
LEVER |
| 35 |
0316676 |
LOCKWASHER, Ground |
| 0385208 |
0385208 |
STARTER ASSEMBLY |
