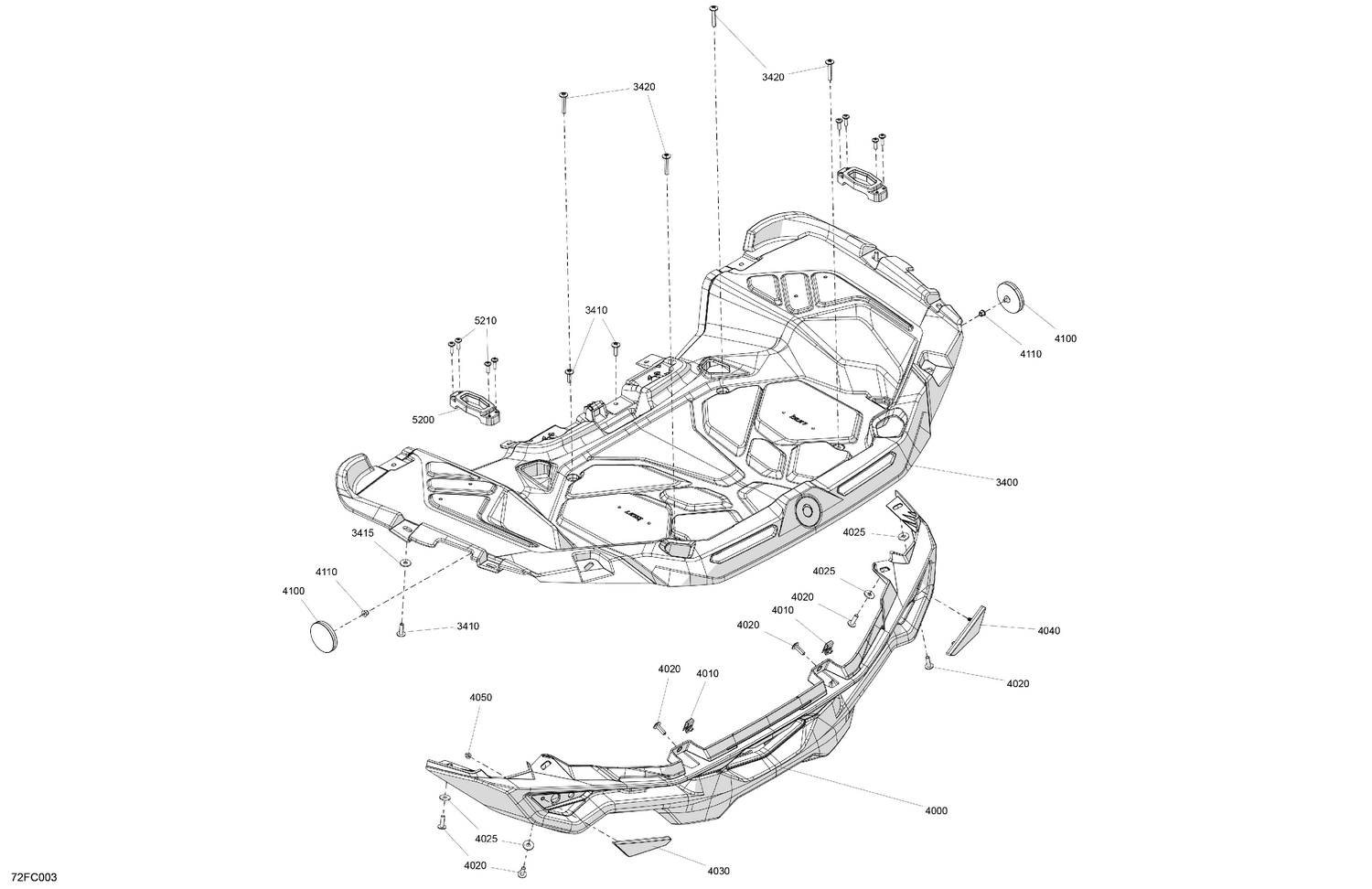

07- Body - Rear Section
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 3400 | 715009935 | Multi Purpose Rear Support Kit |
| 3410 | 250001257 | Screw Torx M6 X 20 |
| 3415 | 234062410 | Flat Washer 6 mm |
| 3420 | 250001258 | Screw Torx M6 X 35 |
| 4000 | 705013203 | Rear Light Support |
| 4010 | 250100198 | Panel Nut M6 X 1.0 |
| 4020 | 250001257 | Screw Torx M6 X 20 |
| 4025 | 234062410 | Flat Washer 6 mm |
| 4030 | 705014922 | Red, LH Rear Reflector |
| 4040 | 705014923 | Red, RH Rear Reflector |
| 4050 | 233251434 | Flange Elastic Nut M5 |
| 4100 | 705016982 | Red, Reflector |
| 4110 | 233251434 | Flange Elastic Nut M5 |
| 5200 | 715002350 | Linq Base Kit |
