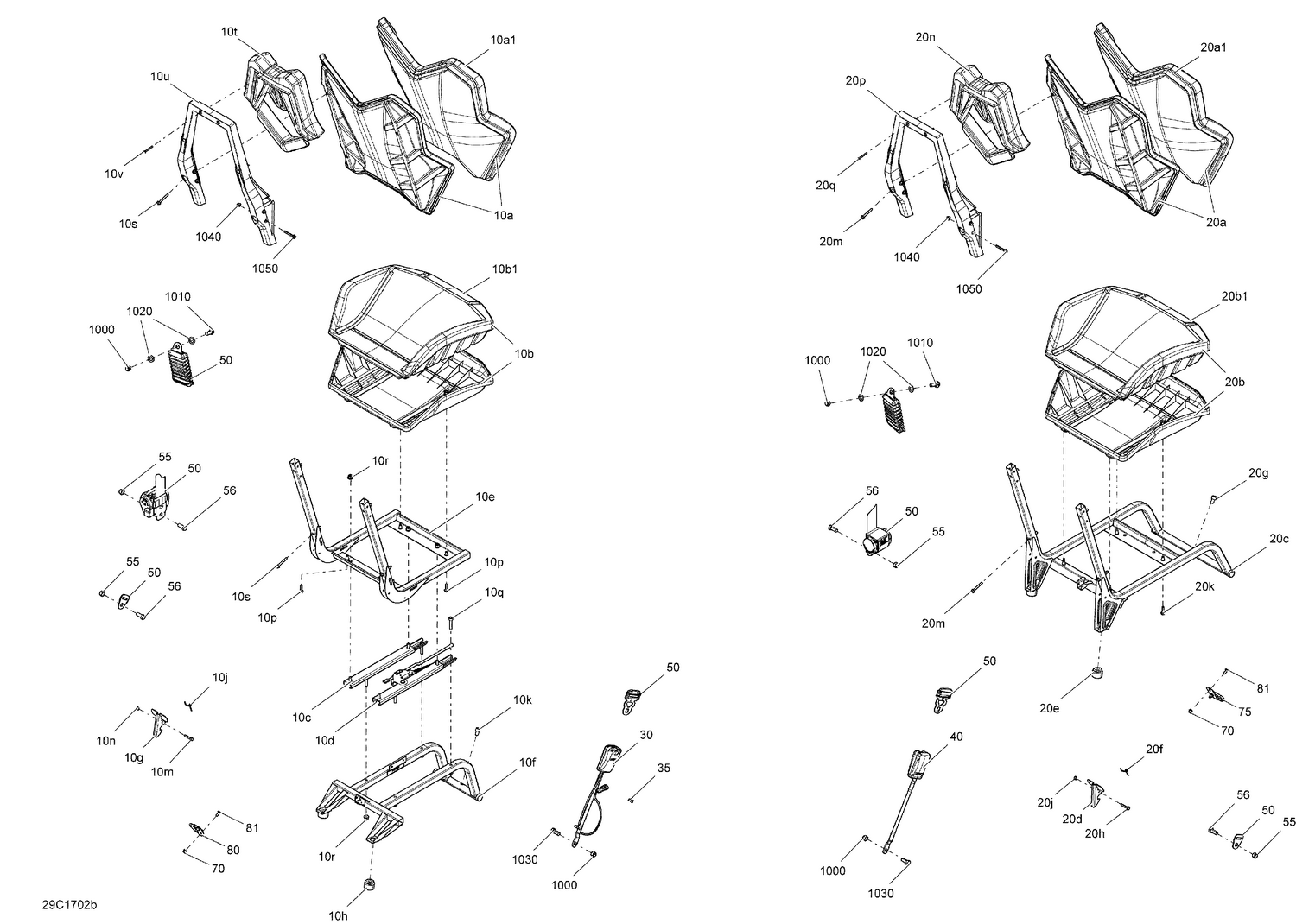

09- Seat - Turbo
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 10c | 708000848 | LH Rail |
| 10d | 708001739 | RH Rail |
| 10e | 708001356 | Operator Seat Frame |
| 10f | 708000667 | Seat Member |
| 10g | 708001355 | Seat Latch |
| 10h | 708001671 | Rubber Bumper |
| 10j | 708000921 | Spring |
| 10k | 205501644 | Socket Screw M10 X 16 |
| 10m | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 10n | 232561600 | Hex. Elastic Stop Nut M6 |
| 10p | 207562544 | Hex. Flange Screw M6 X 25 |
| 10q | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 10r | 233281414 | Hex. Flange Elastic Nut M8 |
| 10s | 250000672 | Hex. Flange Screw M6 |
| 10t | 708001074 | Head Rest |
| 10u | 708001245 | Seat Support |
| 10v | 250000897 | Hex. Flange Screw K50 X 40 This part replaces 250000897. |
| 20c | 708001357 | Passenger Seat Frame |
| 20d | 708001355 | Seat Latch |
| 20e | 708001671 | Rubber Bumper |
| 20f | 708000921 | Spring |
| 20g | 205501644 | Socket Screw M10 X 16 |
| 20h | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 20j | 232561600 | Hex. Elastic Stop Nut M6 |
| 20k | 207562544 | Hex. Flange Screw M6 X 25 |
| 20m | 250000672 | Hex. Flange Screw M6 |
| 20n | 708001074 | Head Rest |
| 20p | 708001245 | Seat Support |
| 20q | 250000897 | Hex. Flange Screw K50 X 40 This part replaces 250000897. |
| 35 | 293750008 | Tie Wrap 368 mm |
| 55 | 250100135 | Nylon Insert Hex. Lock Nut 7/16-20 |
| 56 | 250000521 | Hex. Cap Screw 7/16'' X 1'' |
| 70 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 75 | 708002303 | Retaining Rod RH |
| 80 | 708002302 | Retaining Rod LH |
| 81 | 250000717 | Torx Head Screw M6 X 16 |
| 1000 | 250100135 | Nylon Insert Hex. Lock Nut 7/16-20 |
| 1010 | 708000890 | Safety Belt Screw |
| 1020 | 708000891 | Position Washer |
| 1030 | 250000521 | Hex. Cap Screw 7/16'' X 1'' |
| 1040 | 233161464 | Hex. Elastic Flange Nut M6 |
