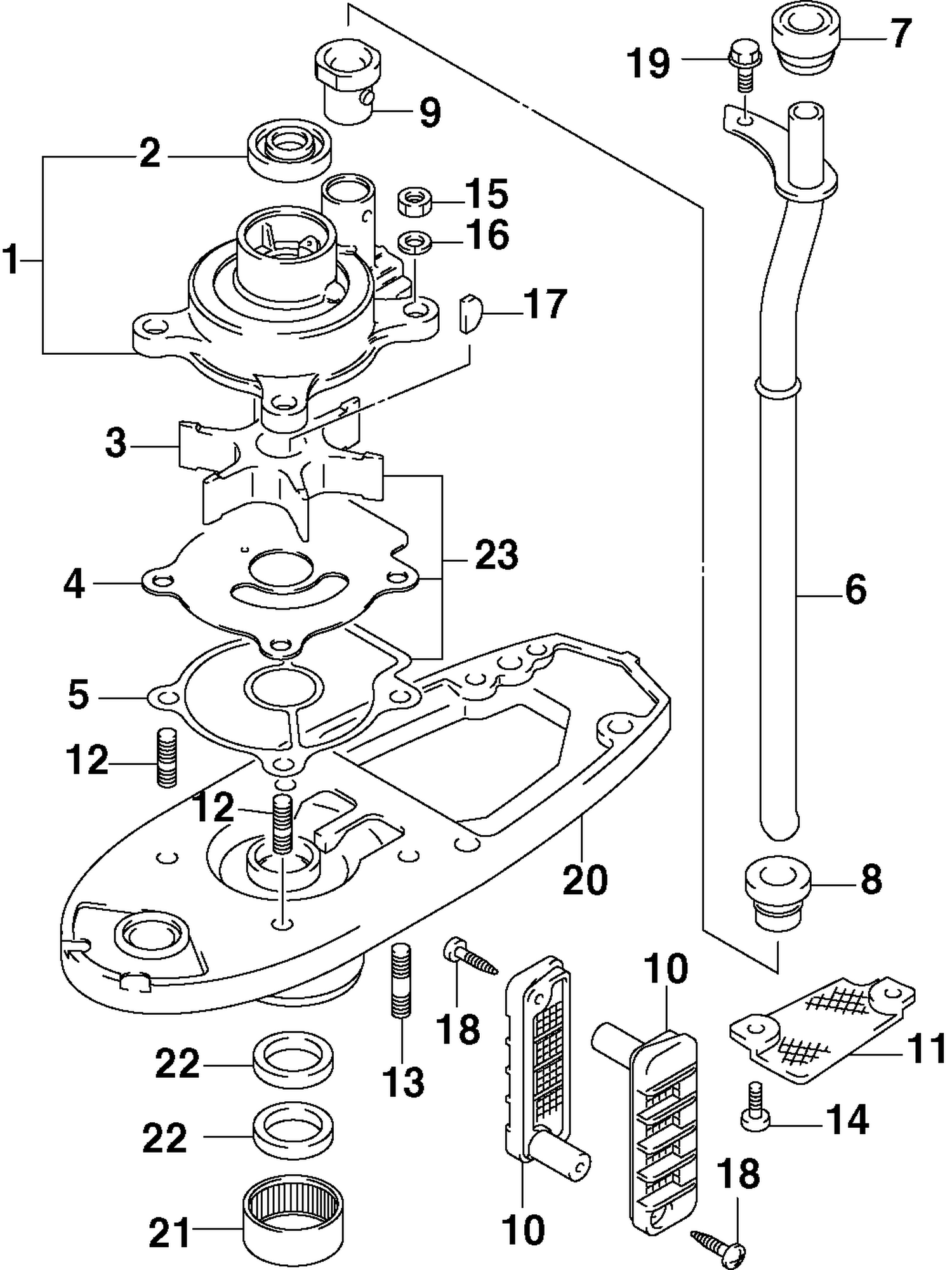

WATER PUMP
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5031416 | CASE, WATER PUMP |
| 3 | 5031417 | IMPELLER ASSY |
| 4 | 5031418 | PANEL, PUMP CASE UNDER |
| 6 | 5031420 | TUBE, WATER |
| 7 | 5031422 | GROMMET, WATER TUBE UPPER |
| 8 | 5031423 | GROMMET, WATER TUBE MIDDLE |
| 9 | 5031424 | GROMMET, Impeller housing |
| 10 | 5031428 | FILTER, WATER |
| 11 | 5030739 | FILTER, SUB WATER |
| 12 | 5031208 | BOLT, STUD (6X18mm) |
| 13 | 5031209 | BOLT, STUD (6X35mm) |
| 14 | 5030406 | SCREW |
| 17 | 5031281 | KEY |
| 18 | 5031693 | SCREW |
| 20 | 5032802 | HOUSING, DRIVE SHAFT BRG |
