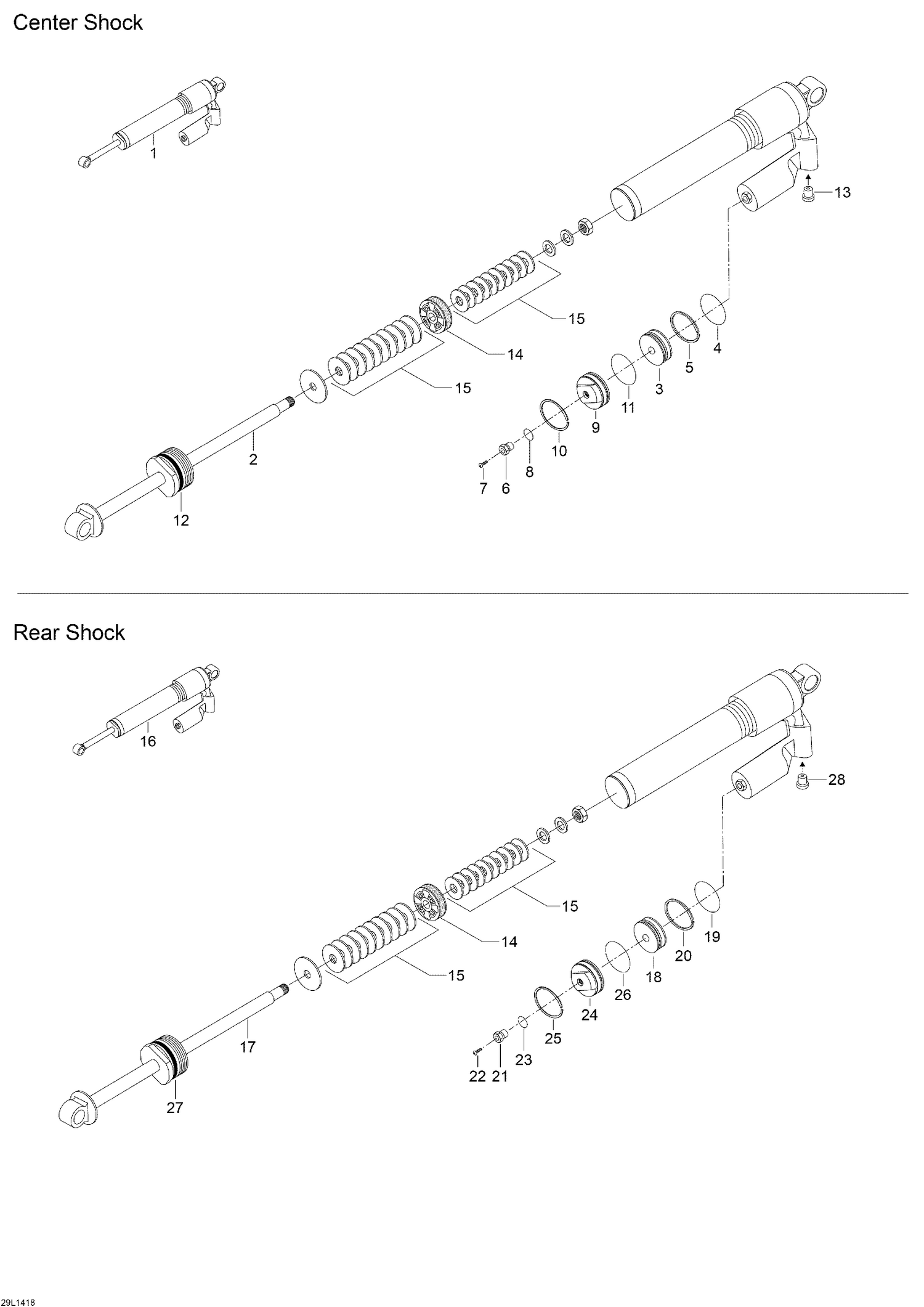

08- Rear Shocks

08- Rear Shocks

Parts (88)

RefPart NumberDescription
1 503193039 Shock, Front Arm
2 Not Available As Spare Part - Rod Ass'y
3 619300007 Floating Piston
4 415093807 O-Ring
5 415093806 Piston Ring
6 505070398 Air Valve
7 505070399 Screw
8 505070400 O-Ring
9 619300009 Seal Carrier Ass´y
10 619300006 Stop Ring
11 415093804 O-Ring
12 619300019 Seal Carrier Ass´y
13 619300015 Air Valve Ass´y
14 230039 Piston 46 mm, 2.0 mm
14 230043 Piston 46 mm, 0 mm
14 619300159 Piston 46 mm, 1.2 mm
14 619300160 Piston 46 mm, 1.7 mm
14 Not Available As Spare Part - Piston 46 mm, 2.2 mm
15 230029 Shim 40/46 mm, 20 x 0,114
15 230030 Shim 40/46 mm, 20 x 0,152
15 230031 Shim 40/46 mm, 20 x 0,203
15 230032 Shim 40/46 mm, 20 x 0,254
15 230033 Shim 40/46 mm, 34 x 0,114
15 230034 Shim 40/46 mm, 34 x 0,152
15 230035 Shim 40/46 mm, 34 x 0,203
15 230036 Shim 40/46 mm, 34 x 0,254
15 230037 Shim 40/46 mm, 36 x 0,114
15 230040 Shim 40/46 mm, 38 x 0,152
15 230041 Shim 40/46 mm, 38 x 0,203
15 230042 Shim 40/46 mm, 38 x 0,254
15 230082 Shim 40/46 mm, 32 x 0,114
15 503189038 Shim 40/46 mm, 36 x 0,254
15 619300022 Shim 40/46 mm, 32 x 0,305
15 619300056 Shim 40/46 mm, 30 x 0,305
15 619300059 Shim 40/46 mm, 32 x 0,254
15 619300060 Shim 40/46 mm, 17 x 0,114
15 619300067 Shim 40/46 mm, 18 x 0,152
15 619300068 Shim 40/46 mm, 18 x 0,114
15 619300069 Shim 40/46 mm, 17 x 0,203
15 619300070 Shim 40/46 mm, 34 x 0,305
15 619300095 Shim 40/46 mm, 24 x 0,254
15 619300097 Shim 40/46 mm, 20 x 0,305
15 619300098 Shim 40/46 mm, 22 x 0,203
15 619300099 Shim 40/46 mm, 26 x 0,254
15 619300100 Shim 40/46 mm, 26 x 0,305
15 619300101 Shim 40/46 mm, 28 x 0,114
15 619300102 Shim 40/46 mm, 28 x 0,203
15 619300103 Shim 40/46 mm, 28 x 0,254
15 619300104 Shim 40/46 mm, 30 x 0,152
15 619300105 Shim 40/46 mm, 36 x 0,305
15 619300106 Shim 40/46 mm, 38 x 0,305
15 619300107 Shim 40/46 mm, 40 x 0,305
15 619300112 Shim 40/46 mm, 40 x 0,203
15 619300113 Shim 40/46 mm, 30 x 0,254
15 619300134 Shim 40/46 mm, 22 x 0,254
15 619300137 Shim 40/46 mm, 32 x 0,152
15 619300138 Shim 40/46 mm, 32 x 0,203
15 619300140 Shim 40/46 mm, 22 x 0,152
15 619300141 Shim 40/46 mm, 26 x 0,152
15 619300142 Shim 40/46 mm, 36 x 0,203
15 619300143 Shim 40/46 mm, 22 x 0,114
15 619300144 Shim 40/46 mm, 22 x 0,305
15 619300145 Shim 40/46 mm, 24 x 0,114
15 619300146 Shim 40/46 mm, 24 x 0,152
15 619300147 Shim 40/46 mm, 24 x 0,203
15 619300148 Shim 40/46 mm, 24 x 0,305
15 619300149 Shim 40/46 mm, 26 x 0,114
15 619300150 Shim 40/46 mm, 26 x 0,203
15 619300151 Shim 40/46 mm, 28 x 0,152
15 619300152 Shim 40/46 mm, 28 x 0,305
15 619300153 Shim 40/46 mm, 30 x 0,114
15 619300154 Shim 40/46 mm, 30 x 0,203
15 619300155 Shim 40/46 mm, 36 x 0,152
15 619300157 Shim 40/46 mm, 40 x 0,152
15 619300158 Shim 40/46 mm, 40 x 0,254
15 Not Available As Spare Part - Shim 40/46 mm, 17 x 0,152
16 503193041 Shock, Rear Arm
17 Not Available As Spare Part - Rod Ass'y
18 619300007 Floating Piston
19 415093807 O-Ring
20 415093806 Piston Ring
21 505070398 Air Valve
22 505070399 Screw
23 505070400 O-Ring
24 619300009 Seal Carrier Ass´y
25 619300006 Stop Ring
26 415093804 O-Ring
27 619300019 Seal Carrier Ass´y
