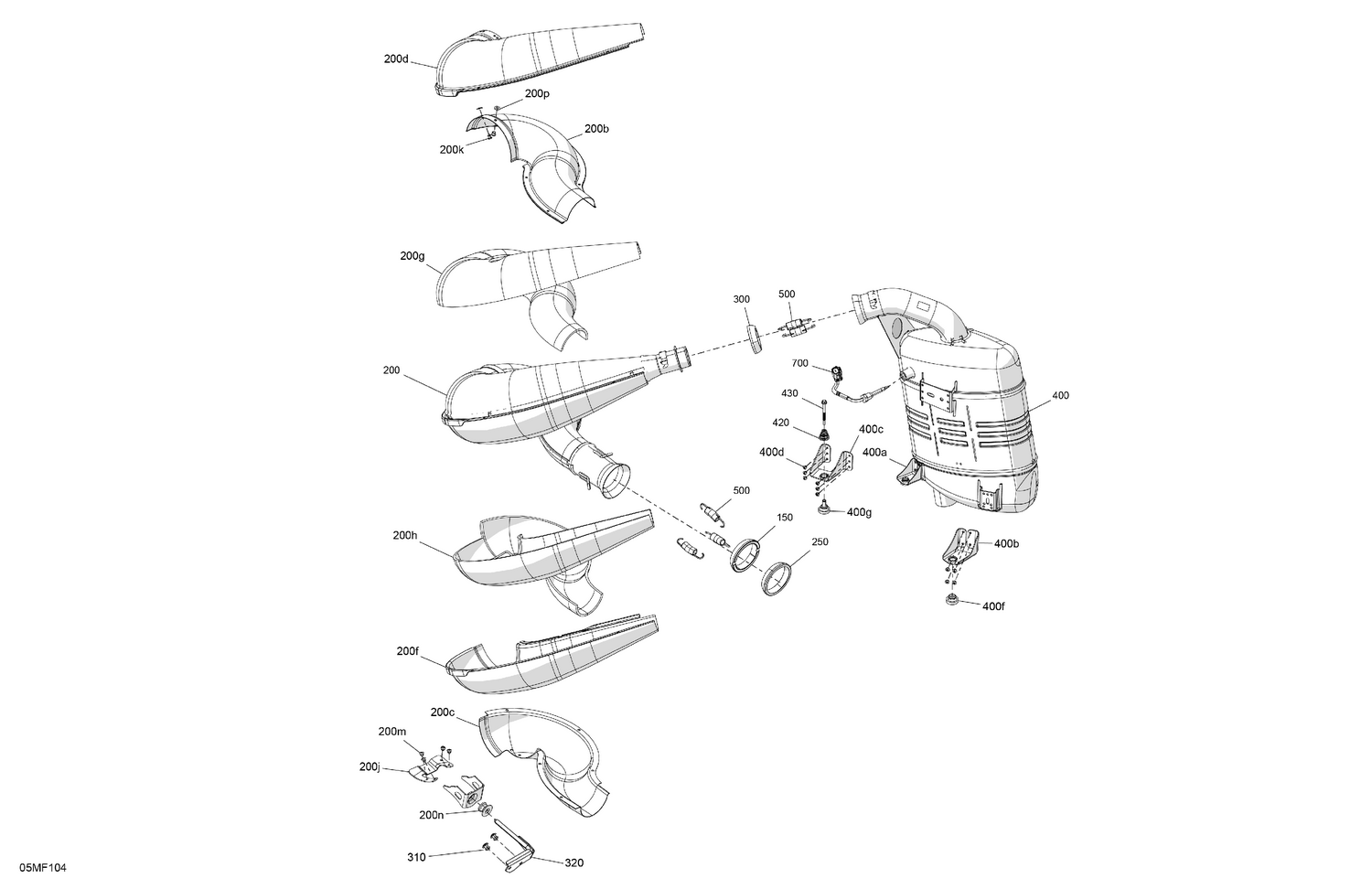

02- Engine - Exhaust
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 514053487 | Exhaust Gasket |
| 200b | 514055222 | Front Upper Aluminum Shell |
| 200c | 514056282 | Shell |
| 200d | 514056420 | Upper Rear Shell |
| 200f | 514056141 | Rear Lower Aluminum Shell |
| 200g | 514056422 | Glass Wool |
| 200h | 514056352 | Glass Wool |
| 200j | 514055844 | Plate |
| 200k | 390909200 | Avex Rivet |
| 200m | 390909200 | Avex Rivet |
| 200n | 514056375 | Vibration Damper |
| 200p | 514055537 | Washer 3/16 |
| 250 | 514055965 | Seal |
| 300 | 514055294 | Exhaust Gasket |
| 310 | 293150266 | Ornit Rivet 6,5 X 14.5 |
| 320 | 514055214 | Support |
| 400a | 514056022 | Front Muffler Support |
| 400b | 514056038 | Rear Muffler Support |
| 400c | 514056024 | Muffler Support |
| 400d | 293150293 | Pop Rivet 3/16 X ,425 |
| 400f | 514055203 | Stopper |
| 400g | 514056138 | Stopper Ass'y |
| 420 | 514055282 | Spring |
| 430 | 250000926 | Hex. Flange Screw M6 |
| 500 | 514056279 | Spring |
