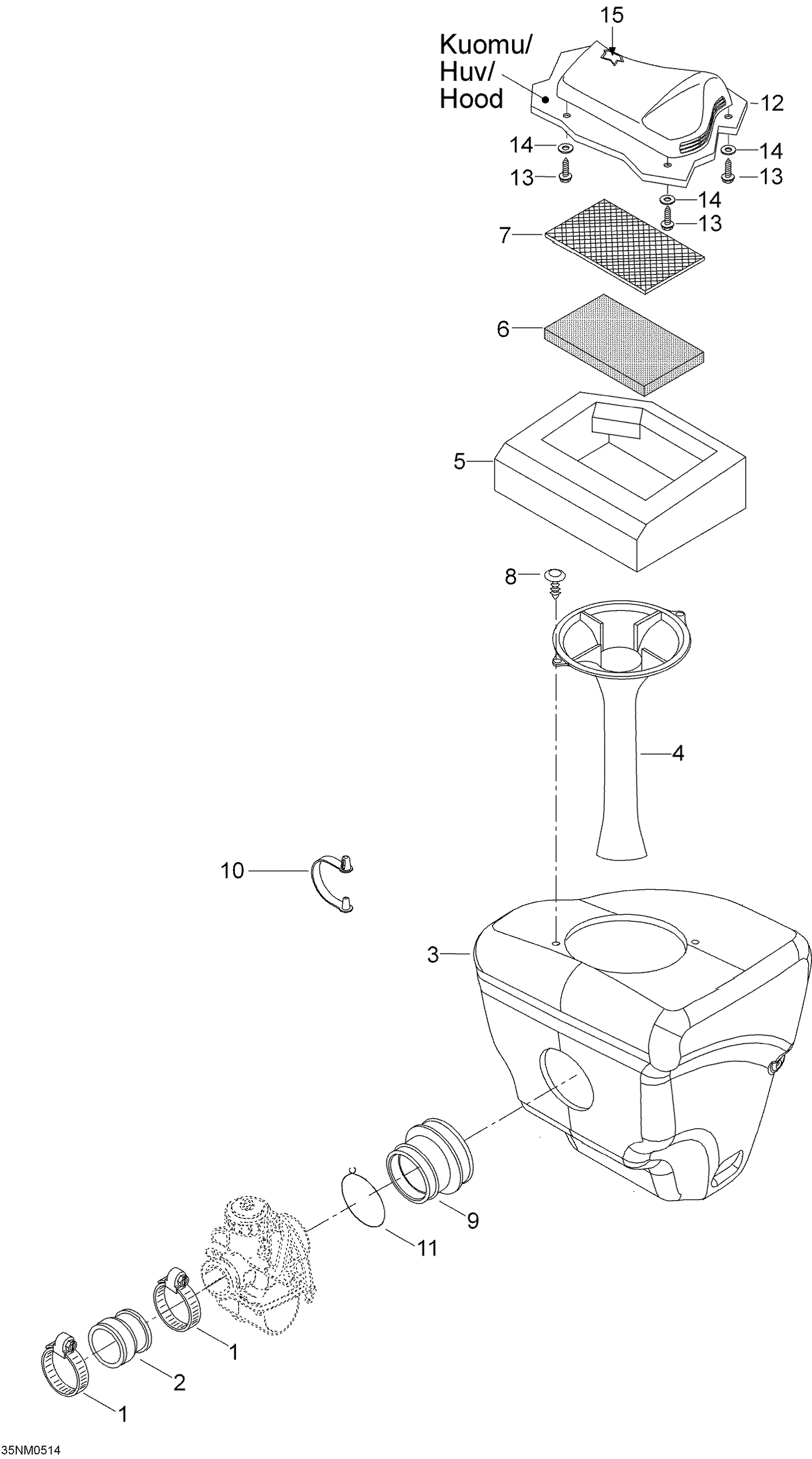

| Ref | Part Number | Description |
|---|
| 1 |
420951510 |
Clamp |
| 2 |
420867481 |
Adaptor |
| 3 |
5145397 |
Air intake |
| 4 |
Not |
Available As Spare Part - Inlet tube |
| 5 |
5346536 |
Exterior foam |
| 6 |
5345398 |
Air Filter - Call your local BRP dealership |
| 7 |
5346220 |
Cover Net - Call your local BRP dealership |
| 8 |
414644300 |
Black, Dart |
| 9 |
5245961 |
ADAP-AIR - Call your local BRP dealership |
| 10 |
414379300 |
CABLE CLIP - Call your local BRP dealership |
| 11 |
5346755 |
COLLAR - Call your local BRP dealership |
| 12 |
572077900 |
INTAKE COVER - Call your local BRP dealership |
| 13 |
40901 |
Plastofast-screw 5 x 20 |
| 14 |
20008 |
Washer A5,3 |
