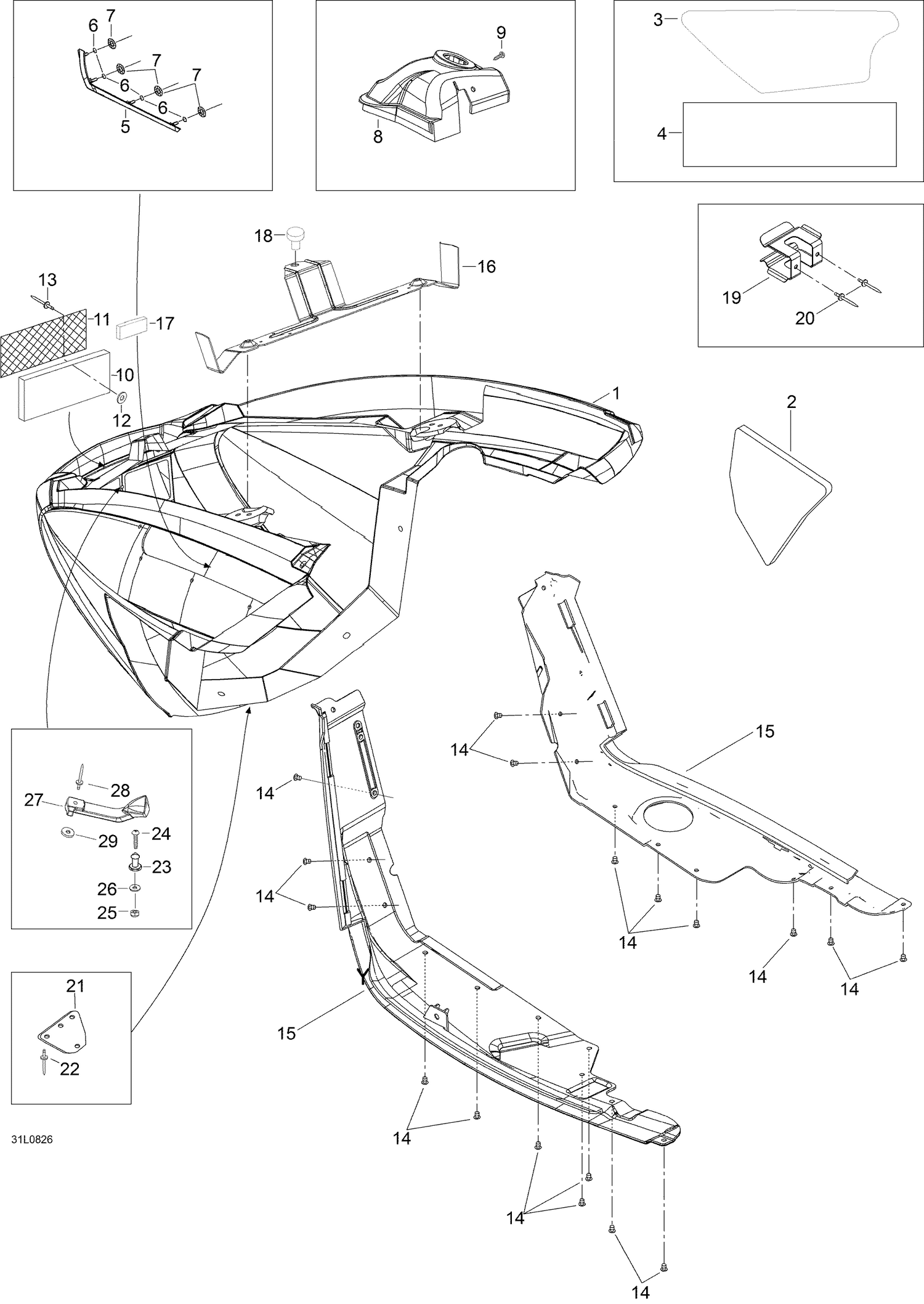

09- Bottom Pan
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 605354135 | L.H. Foam |
| 2 | 605354136 | R.H. Foam |
| 3 | 605354137 | R.H. Foam (rear) |
| 4 | 44001 | REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership |
| 5 | 605253929 | Intake frame |
| 6 | 48231 | O-ring |
| 7 | 36084 | Snap ring |
| 8 | 605353758 | R.H. Shock cover |
| 8 | 605353759 | L.H. Shock cover |
| 9 | 40847 | SCREW 4 - Call your local BRP dealership |
| 10 | 605354888 | Foam |
| 11 | 605354887 | Grill |
| 12 | 20008 | Washer A5,3 |
| 13 | 36009 | Rivet |
| 14 | 36037 | Rivet |
| 15 | 502006702 | RH BOTTOM PAN - Call your local BRP dealership |
| 15 | 502006703 | LH BOTTOM PAN - Call your local BRP dealership |
| 16 | 605354836 | Support |
| 17 | 605354889 | Foam |
| 18 | 514053654 | Rubber Bumper |
| 19 | 517281905 | Bracket |
| 20 | 36108 | Rivet |
| 21 | 605355304 | Support plate |
| 22 | 36072 | Rivet |
| 23 | 605449087 | Counter roller |
| 24 | 40168 | Screw M4 x 25 |
| 25 | 33008 | Elastic stop nut M4 |
| 26 | 20037 | Washer A4,3 |
| 27 | 5342952 | Hood Latch |
| 28 | 36037 | Rivet |
