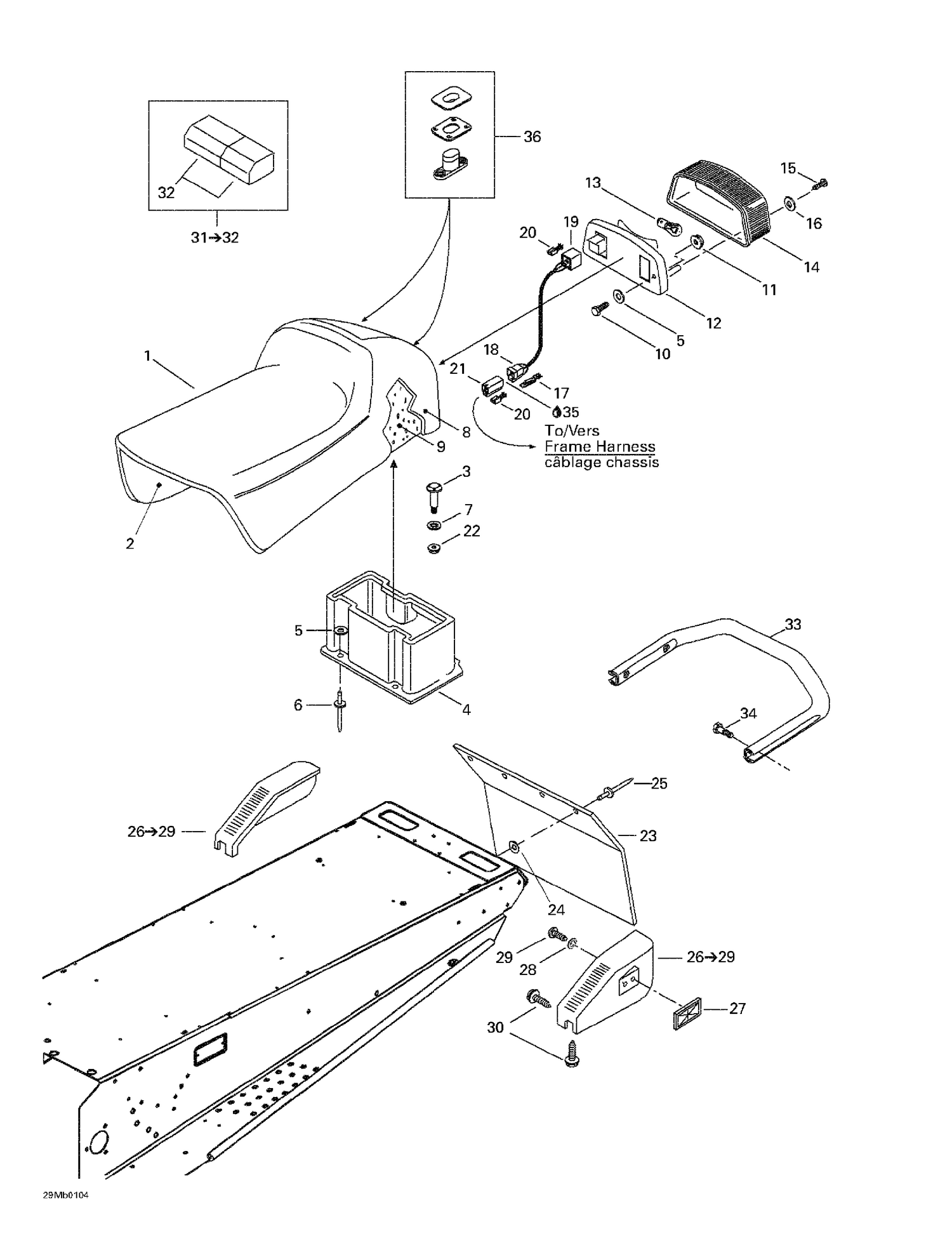

| Ref | Part Number | Description |
|---|
| 2 |
510003596 |
Sub Seat |
| 4 |
572106300 |
Rear Trunk, Se-Air |
| 5 |
517297900 |
WASHER - Call your local BRP dealership |
| 6 |
Not |
Available As Spare Part - Rivet |
| 7 |
732610072 |
Push Nut |
| 9 |
414837100 |
Foam Seat |
| 10 |
207053044 |
Hex. Screw M5 X 30 |
| 11 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 12 |
510004061 |
LIGHT HOUSING - Call your local BRP dealership This part replaces 414513600. |
| 13 |
520000758 |
Bulb This part replaces 410504000. |
| 14 |
414513700 |
Lens |
| 15 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 16 |
414516400 |
Washer - Call your local BRP dealership |
| 17 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 18 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 19 |
515175250 |
Female Terminal Housing, 3 Circuits |
| 20 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 21 |
409204300 |
Female Housing |
| 22 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 24 |
517225900 |
Flat Washer |
| 25 |
293150100 |
Pop Rivet 3/16" This part replaces 390908000. |
| 27 |
414510100 |
REFLECTOR, RED - Call your local BRP dealership |
| 28 |
234451418 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 29 |
208651041 |
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership |
| 30 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 33 |
518322438 |
REAR BUMPER - Call your local BRP dealership |
| 34 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 35 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 580642100 |
LH |
Moulding Ass'y 580642100 |
