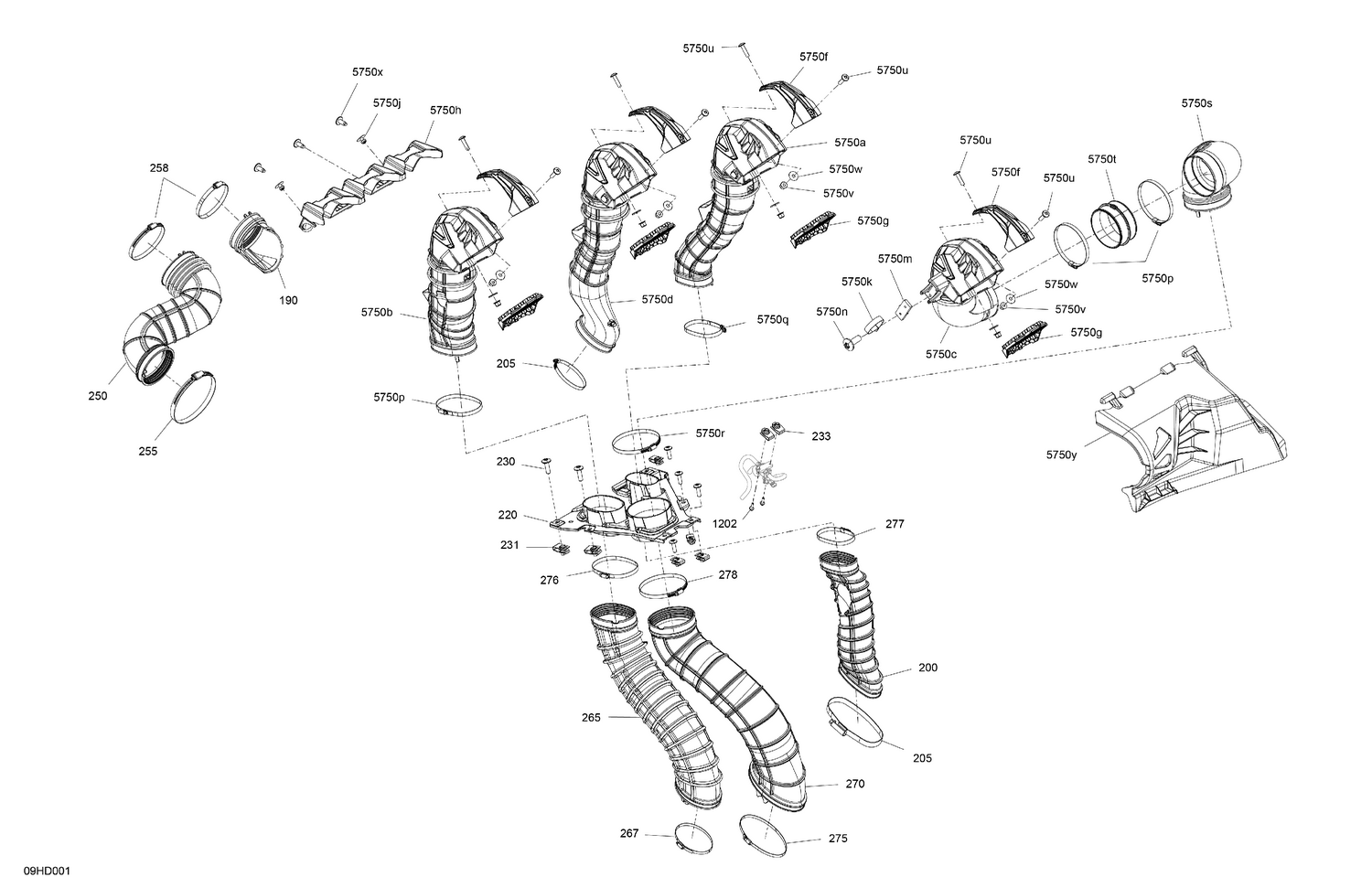

02- Engine - Air Duct
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 190 | 706600248 | Front CVT Duct |
| 200 | 706600313 | Front CVT Cooling Duct |
| 205 | 514052924 | Norma Clamp |
| 220 | 706600253 | Hose Support |
| 230 | 250000722 | Torx Screw M6 X 20 |
| 231 | 250100198 | Panel Nut M6 X 1.0 |
| 233 | 250000958 | Panel Nut M5 X 0.8 |
| 250 | 706600306 | Front CVT Cooling Duct |
| 255 | 514052983 | Norma Gear Clamp |
| 258 | 514052983 | Norma Gear Clamp |
| 265 | 706600305 | Rear CVT Cooling Duct |
| 267 | 514052983 | Norma Gear Clamp |
| 270 | 706600223 | Rear CVT Duct |
| 275 | 514052861 | Gear Clamp (Norma) |
| 276 | 514052983 | Norma Gear Clamp |
| 277 | 293650096 | Norma Clamp |
| 278 | 293650054 | Tridon Clamp |
| 5750a | 706600250 | Top Front CVT Duct |
| 5750b | 706600251 | Top Rear Intake Duct |
| 5750c | 706600252 | Top Rear CVT Exhaust Duct |
| 5750d | 707800862 | Hose |
| 5750f | 707003317 | Scoop Cover This part replaces 705019006. |
| 5750g | 705019007 | Legion Red, Air Inlet Grille |
| 5750h | 706600276 | Hose Holder |
| 5750j | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 5750k | 293850133 | Open Clamp |
| 5750m | 705013076 | Plate |
| 5750n | 250000881 | Torx Truss M8 X 16 |
| 5750p | 514052983 | Norma Gear Clamp |
| 5750q | 293650096 | Norma Clamp |
| 5750r | 293650054 | Tridon Clamp |
| 5750s | 706600270 | Mid Rear CVT Exhaust Duct |
| 5750t | 707002266 | Adaptor |
| 5750u | 250000792 | Torx Screw M5 X 20 |
| 5750v | 233251494 | Elastic Flange Nut M5 |
| 5750w | 234052600 | Flat Washer 5 mm, Stainless |
| 5750x | 250000851 | Torx Screw M6 X 14 |
| 5750y | 705012553 | Air Inlet Cover |
