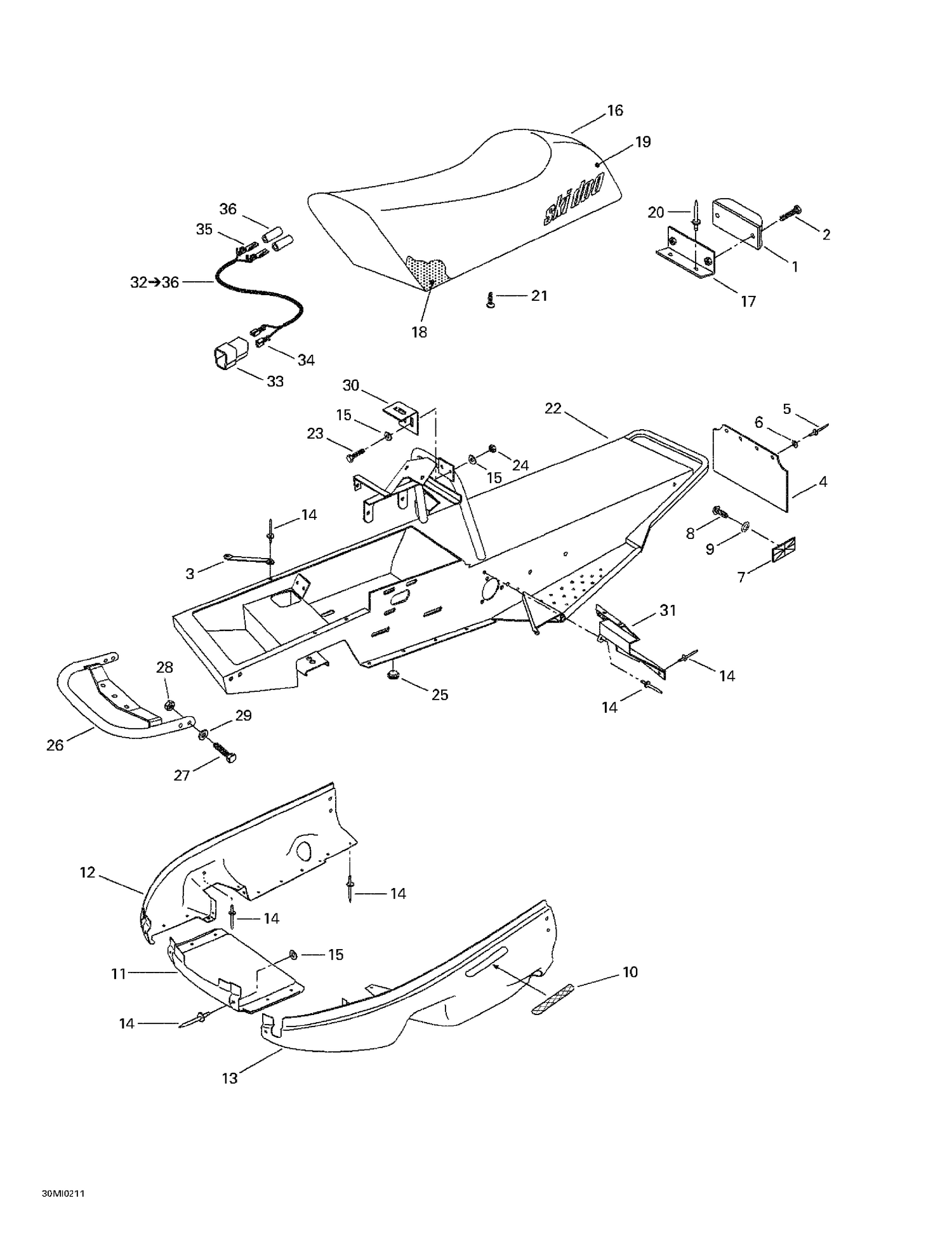

09- Frame And Body
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 415088700 | TAIL LAMP ASS'Y - Call your local BRP dealership |
| 2 | 207151244 | Hex. Screw M5 X 12 |
| 3 | 502006505 | Bottom Pan Support |
| 4 | 572099800 | Snow Guard |
| 5 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 6 | 517225900 | Flat Washer This part replaces 414806800. |
| 7 | 414510100 | REFLECTOR, RED - Call your local BRP dealership |
| 8 | 208651041 | PHILLIPS SCREW M5 X 10 - Call your local BRP dealership |
| 9 | 234451418 | WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 10 | 415064400 | Decal - RH Reflector |
| 11 | 571009500 | Nose (Yellow) |
| 12 | 502006538 | RH Bottom Pan (Yellow) |
| 13 | 502006539 | LH Bottom Pan (Yellow) |
| 14 | 390906800 | Pop Rivet 3/16" This part replaces 390910200. |
| 15 | 234051410 | Flat Washer M5 |
| 16 | Not | Available As Spare Part - Seat Ass'y |
| 17 | 415088400 | Tail Lamp Housing |
| 18 | 415088302 | Foam Seat |
| 19 | 510004017 | Seat Cover |
| 20 | 390906800 | Pop Rivet 3/16" |
| 21 | 369903000 | Screw |
| 22 | 518321943 | Frame Ass'y |
| 23 | 207151414 | Hex. Screw M5 x 14 |
| 24 | 232551414 | Elastic Stop Nut M5 |
| 25 | 414404800 | Plug |
| 26 | 518320400 | Bumper |
| 27 | 207063044 | Hex. Screw M6 X 30 |
| 28 | 232561414 | Elastic Stop Nut M6 |
| 29 | 234061410 | Flat Washer 6 mm |
| 30 | 518321300 | Adjustable Plate |
| 31 | 518321950 | RH Footrest |
| 33 | 409204500 | MALE HOUSING - Call your local BRP dealership |
| 34 | 278001009 | Female Terminal |
| 35 | 409210000 | MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 415064401 | Décalque | De Réflecteur GA 415064401 |
| 518321952 | LH | Footrest 518321952 |
