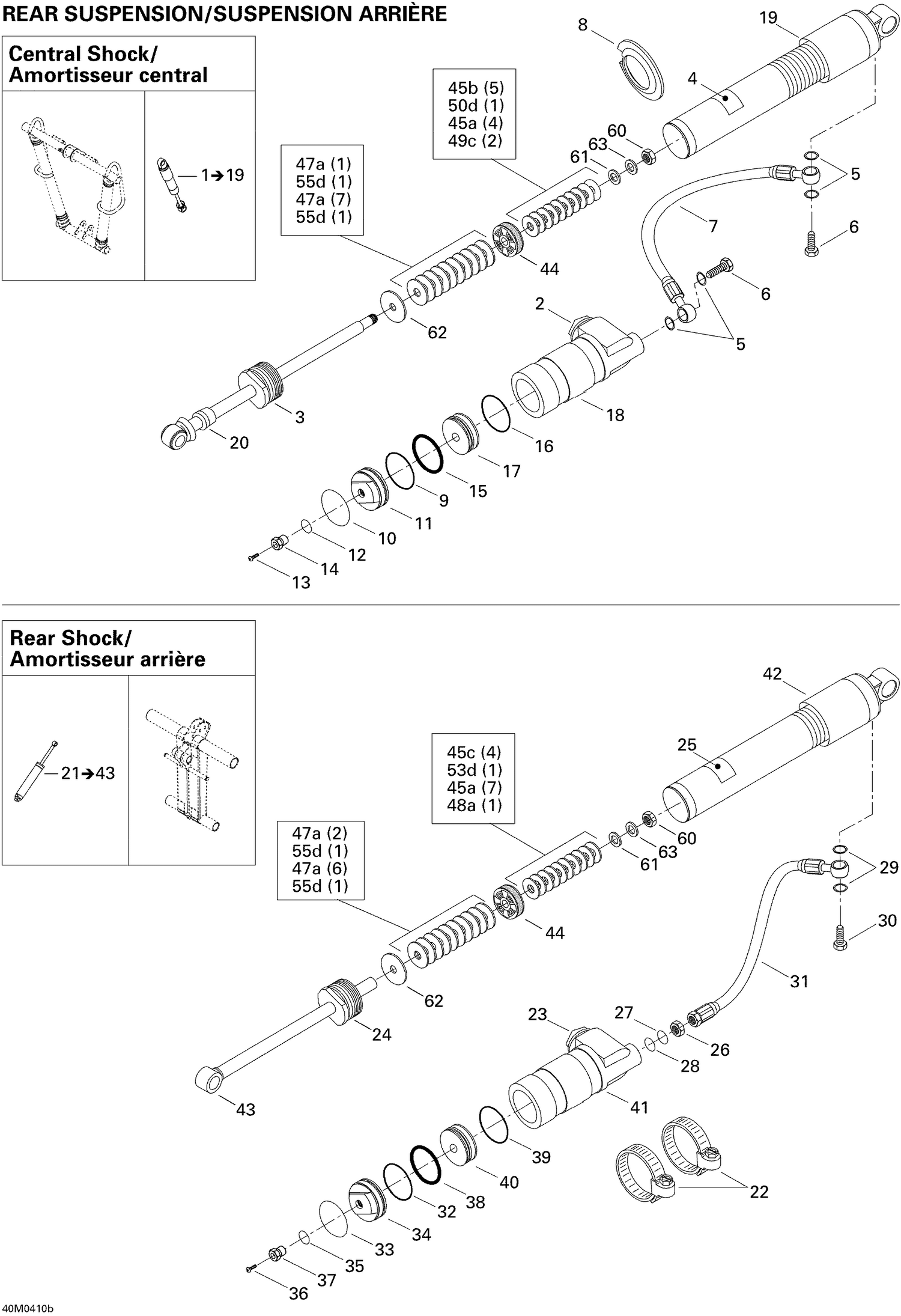

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Valve Ass'y |
| 3 |
Not |
Available As Spare Part - Bearing Compressor |
| 4 |
Not |
Available As Spare Part - Label |
| 5 |
415038700 |
O-Ring |
| 6 |
415093810 |
Bolt |
| 7 |
415128595 |
HOSE ASS'Y - Call your local BRP dealership |
| 8 |
415128598 |
SPRING COLLAR - Call your local BRP dealership |
| 9 |
415093804 |
O-Ring |
| 10 |
Not |
Available As Spare Part - Stop Ring |
| 11 |
Not |
Available As Spare Part - Guide |
| 12 |
505070400 |
O-Ring |
| 13 |
505070399 |
Screw |
| 14 |
505070398 |
Air Valve |
| 15 |
415093806 |
Piston Ring |
| 16 |
415093807 |
O-Ring |
| 17 |
505071016 |
Free Piston |
| 18 |
415128596 |
RESERVOIR - Call your local BRP dealership |
| 19 |
Not |
Available As Spare Part - Cylinder |
| 20 |
Not |
Available As Spare Part - Rod Ass'y |
| 22 |
Not |
Available As Spare Part - Clamp |
| 23 |
Not |
Available As Spare Part - Valve Ass'y |
| 24 |
Not |
Available As Spare Part - Bearing Compressor |
| 25 |
Not |
Available As Spare Part - Label |
| 26 |
Not |
Available As Spare Part - Nut |
| 27 |
Not |
Available As Spare Part - Washer |
| 28 |
Not |
Available As Spare Part - O-Ring |
| 29 |
415038700 |
O-Ring |
| 30 |
415093810 |
Bolt |
| 31 |
415128593 |
HOSE ASS'Y - Call your local BRP dealership |
| 32 |
415093804 |
O-Ring |
| 33 |
Not |
Available As Spare Part - Stop Ring |
| 34 |
Not |
Available As Spare Part - Guide |
| 35 |
505070400 |
O-Ring |
| 36 |
505070399 |
Screw |
| 37 |
505070398 |
Air Valve |
| 38 |
415093806 |
Piston Ring |
| 39 |
415093807 |
O-Ring |
| 40 |
505071016 |
Free Piston |
| 41 |
415128594 |
RESERVOIR - Call your local BRP dealership |
| 42 |
Not |
Available As Spare Part - Cylinder |
| 43 |
Not |
Available As Spare Part - Rod Ass'y |
| 44 |
415128848 |
Piston (2 X 0,3-1) (C36) |
| 45a |
415039100 |
Leaf Valve Ø30 X 0.254 (C36) |
| 45b |
414888318 |
Leaf Valve Ø30 X 0.203 (C36) |
| 45c |
414888319 |
Leaf Valve Ø30 X 0.152 (C36) |
| 45d |
Not |
Available As Spare Part - Leaf Valve Ø30 x 0,114 (C36) |
| 46a |
Not |
Available As Spare Part - Leaf Valve Ø28 x 0,254 (C36) |
| 46b |
414888320 |
Leaf Valve Ø28 X 0.203 (C36) |
| 46c |
414888321 |
Leaf Valve Ø28 X 0.152 (C36) |
| 46d |
Not |
Available As Spare Part - Leaf Valve Ø28 x 0,114 (C36) |
| 47a |
415039000 |
Leaf Valve Ø26 X 0.254 (C36) |
| 47b |
414888322 |
Leaf Valve Ø26 X 0.203 (C36) |
| 47c |
414888323 |
Leaf Valve Ø26 X 0.152 (C36) |
| 47d |
Not |
Available As Spare Part - Leaf Valve Ø26 x 0,114 (C36) |
| 48a |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0,254 (C36) |
| 48b |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0,203 (C36) |
| 48c |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0,152 (C36) |
| 48d |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0,114 (C36) |
| 49a |
Not |
Available As Spare Part - Leaf Valve Ø22 x 0,254 (C36) |
| 49b |
414888324 |
Leaf Valve Ø22 X 0.203 (C36) |
| 49c |
414888325 |
Leaf Valve Ø22 X 0.152 (C36) |
| 49d |
Not |
Available As Spare Part - Leaf Valve Ø22 x 0,114 (C36) |
| 50a |
Not |
Available As Spare Part - Leaf Valve Ø21 x 0,254 (C36) |
| 50b |
Not |
Available As Spare Part - Leaf Valve Ø21 x 0,203 (C36) |
| 50c |
Not |
Available As Spare Part - Leaf Valve Ø21 x 0,152 (C36) |
| 50d |
414888340 |
Leaf Valve Ø21 X 0.114 (C36) |
| 51a |
Not |
Available As Spare Part - Leaf Valve Ø20 x 0,254 (C36) |
| 51b |
414888326 |
Leaf Valve Ø20 X 0.203 (C36) |
| 51c |
414888327 |
Leaf Valve Ø20 X 0.152 (C36) |
| 51d |
414888328 |
Leaf Valve Ø20 X 0.114 (C36) |
| 52a |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0,254 (C36) |
| 52b |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0,203 (C36) |
| 52c |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0,152 (C36) |
| 52d |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0,114 (C36) |
| 53a |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0,254 (C36) |
| 53b |
414888329 |
Leaf Valve Ø18 X 0.203 (C36) |
| 53c |
414888330 |
Leaf Valve Ø18 X 0.152 (C36) |
| 53d |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0,114 (C36) |
| 54a |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0,254 (C36) |
| 54b |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0,203 (C36) |
| 54c |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0,152 (C36) |
| 54d |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0,114 (C36) |
| 55a |
414888331 |
Leaf Valve Ø16 X 0.254 (C36) |
| 55b |
414888332 |
Leaf Valve Ø16 X 0.203 (C36) |
| 55c |
414888333 |
Leaf Valve Ø16 X 0.152 (C36) |
| 55d |
415038900 |
Leaf Valve Ø16 X 0.114 (C36) |
| 56a |
414888334 |
Leaf Valve Ø15 X 0.254 (C36) |
| 56b |
414888335 |
Leaf Valve Ø15 X 0.203 (C36) |
| 56c |
414888336 |
Leaf Valve Ø15 X 0.152 (C36) |
| 56d |
414888337 |
Leaf Valve Ø15 X 0.114 (C36) |
| 57a |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0,254 (C36) |
| 57b |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0,203 (C36) |
| 57c |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0,152 (C36) |
| 57d |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0,114 (C36) |
| 58a |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0,254 (C36) |
| 58b |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0,203 (C36) |
| 58c |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0,152 (C36) |
| 58d |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0,114 (C36) |
| 59a |
503189538 |
Leaf Valve Ø12 X 0.254 (C36) |
| 59b |
414888338 |
Leaf Valve Ø12 X 0.203 (C36) |
| 59c |
414888339 |
Leaf Valve Ø12 X 0.152 (C36) |
| 59d |
415038800 |
Leaf Valve Ø12 X 0.114 (C36) |
| 60 |
Not |
Available As Spare Part - Nut |
| 61 |
Not |
Available As Spare Part - Valve Stopper |
| 62 |
Not |
Available As Spare Part - Valve Stopper |
