Parts Catalog

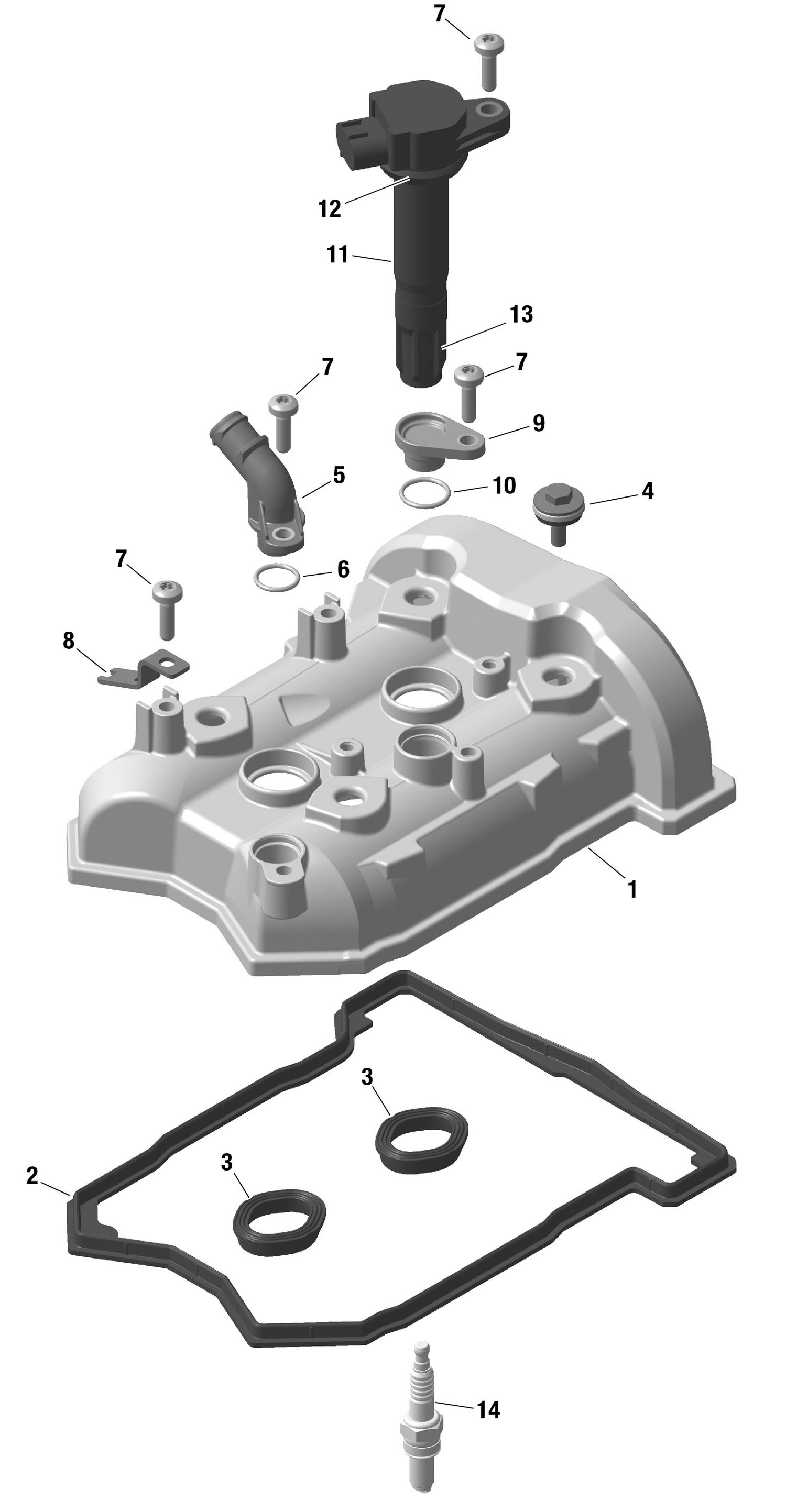

01- ROTAX - Valve Cover

Parts (8)

Ref	Part Number	Description
1	420911041	Valve Cover This part replaces 420911042.
4	420440497	Distance Screw M6
5	420611242	Blow By Connector
7	420441386	Torx Flange Screw M6 X 20
8	420251291	Cable Bracket
9	420660270	Cover
12	420201430	Protection Cap
13	420201437	Plug Boot
