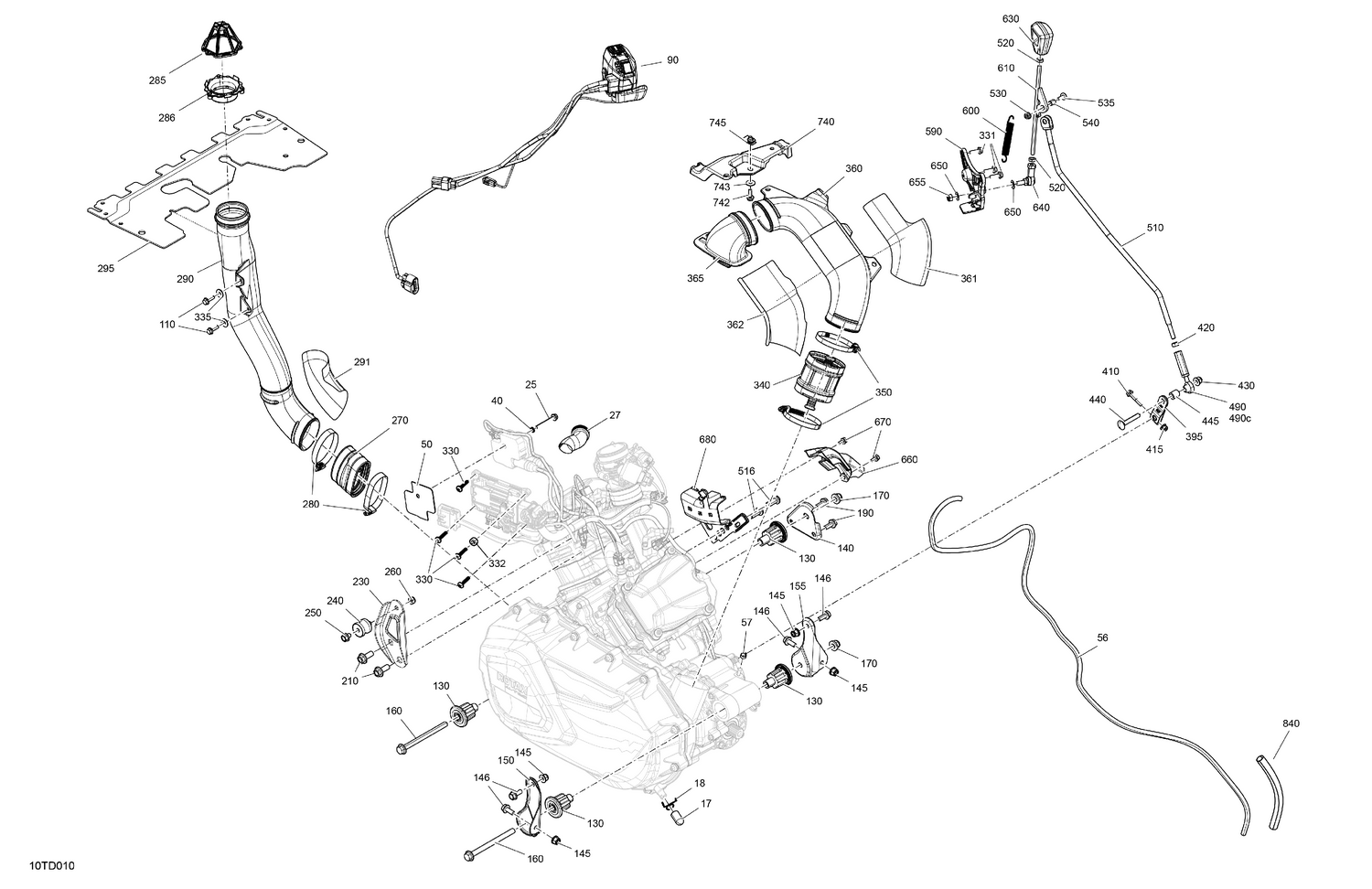

02- Engine - System
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 17 | 707001185 | Plug |
| 18 | 707800506 | Retainer Clip |
| 25 | 207665044 | Hex. Flange Screw M6 X 50 |
| 27 | 219704402 | Tubing 25 MM 1000MM Long |
| 40 | 234461608 | External Serrated Lock Washer 6 mm |
| 50 | 710000073 | Insulator Pad |
| 56 | 219704389 | Polyurethane Hose 4000MM Long |
| 57 | 293650044 | Oetiker Clamp |
| 90 | 707003088 | Hand Lever Accelerator |
| 110 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 130 | 707001169 | Vibration Damper |
| 140 | 707003319 | Engine Support |
| 145 | 233281416 | Hex. Elastic Flange Nut M8 |
| 146 | 207682046 | Hex. Flange Screw M8 X 20 |
| 150 | 707003325 | LH Rear Engine Support |
| 155 | 707003324 | RH Rear Engine Support |
| 160 | 230602546 | Hex. Flange Screw M10 X 125 |
| 170 | 233201436 | Hex. Flange Elastic Nut M10 |
| 190 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 210 | 207602544 | Hex. Flange Screw M10 X 25 |
| 230 | 707003326 | Upper Engine Support |
| 240 | 707000949 | Rubber Isolator |
| 250 | 207581046 | Flange Screw M8 x 10, Scotch Grip |
| 260 | 232581414 | Hex. Elastic Stop Nut M8 |
| 270 | 707002585 | Flexibale Adaptor |
| 280 | 293650091 | Norma Clamp |
| 285 | 715003483 | CVT Filter |
| 286 | 707003215 | Filter Support |
| 290 | 707002067 | CVT Air Inlet |
| 291 | 707001654 | Heat Shield |
| 295 | 707001124 | Upper Water Deflector |
| 330 | 250000949 | Screw PT K60 X 30 |
| 331 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 332 | 293900128 | Bushing |
| 335 | 234062600 | Flat Washer M6, Stainless |
| 340 | 707001168 | CVT Air Outlet Adaptor |
| 350 | 293650118 | Norma Gear Clamp |
| 360 | 706600415 | Duct Out |
| 361 | 707001205 | Heat Shield |
| 362 | 707001206 | Heat Shield |
| 365 | 706600400 | CVT Cooling Duct Out |
| 395 | 707000911 | Lever |
| 410 | 207663544 | Hex. Flange Screw M6 X 35 |
| 415 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 420 | 250100144 | Hex. Nut M8, LH Threads |
| 430 | 233281414 | Hex. Flange Elastic Nut M8 |
| 440 | 207785044 | Carriage Bolt M8 X 50 |
| 445 | 293900106 | Bushing |
| 490c | 232180600 | Hex. Jam Nut M8 |
| 510 | 707002085 | Shifter Rod |
| 516 | 205402556 | Screw Socket M10 X 25 |
| 520 | 232180600 | Hex. Jam Nut M8 |
| 530 | 233161414 | Hex. Flange Nut M6 |
| 535 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 540 | 293900019 | Bushing |
| 590 | 707003054 | Lever Support |
| 600 | 707000577 | Spring |
| 610 | 707000840 | Shift Arm |
| 630 | 707003211 | Lever Trim |
| 640 | 707001959 | RH Ball Joint |
| 650 | 506151252 | Washer |
| 655 | 232581414 | Hex. Elastic Stop Nut M8 |
| 660 | 707000410 | Cover OPS |
| 670 | 210261250 | Hex. Flange Screw M6 X 12 |
| 680 | 707003053 | Cable Support |
| 740 | 707001262 | Air Outlet Support |
| 742 | 207662044 | Hex. Flange Screw M6 X 20 |
| 743 | 234062410 | Flat Washer 6 mm |
| 745 | 250100198 | Panel Nut M6 X 1.0 |
