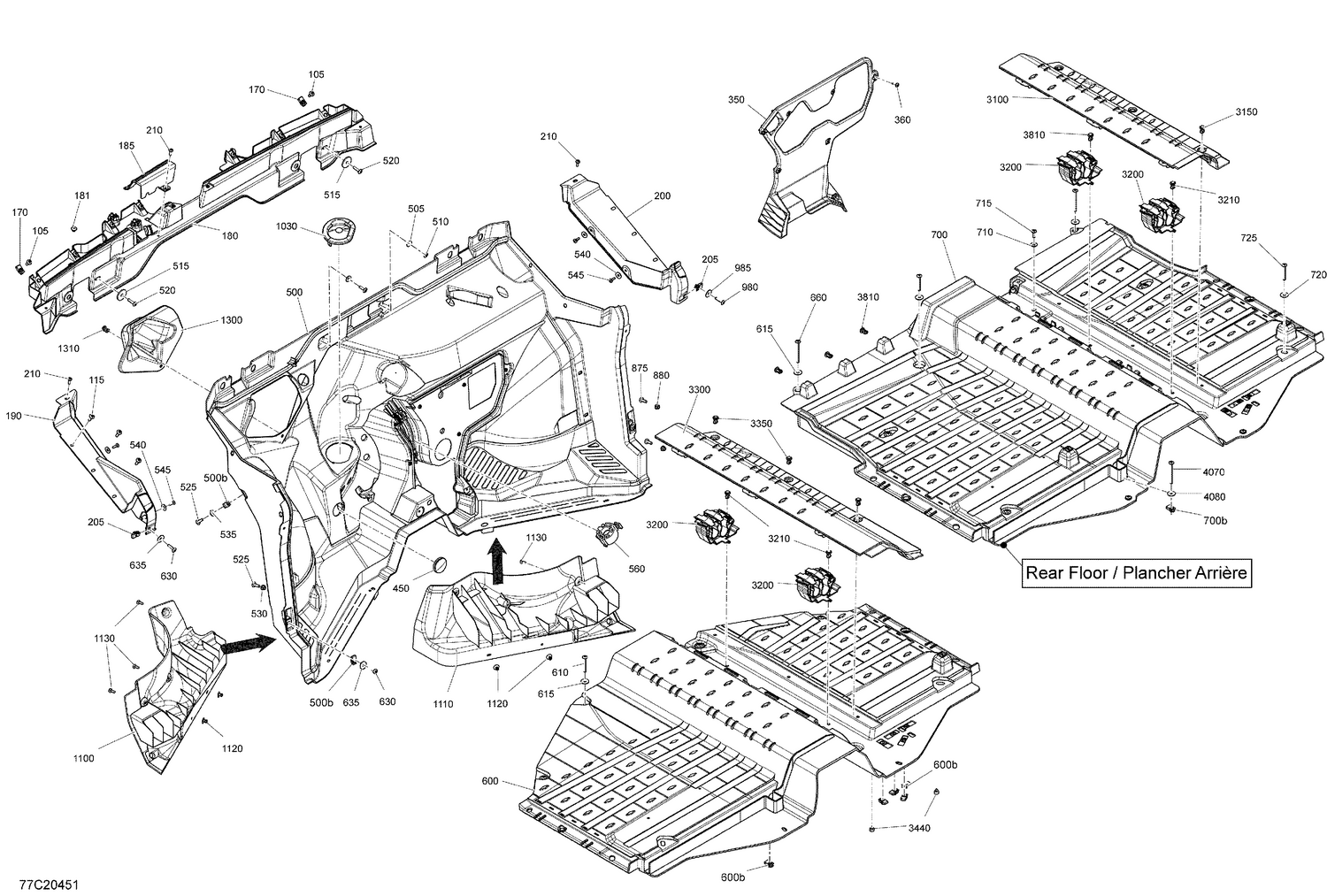

09- Cab Interior - Fire Wall And Floor
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 105 | 250000721 | Torx Truss Screw M6 X 16 |
| 115 | 250000722 | Torx Screw M6 X 20 |
| 170 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 180 | 707900755 | Front Upper Deflector |
| 181 | 293150103 | Pop Rivet 3/16" |
| 185 | 707900747 | Front Upper Deflector |
| 190 | 707900738 | LH Upper Deflector |
| 200 | 707900739 | RH Upper Deflector |
| 205 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 210 | 250000720 | Torx Screw K50 X 16 |
| 350 | 707900740 | Front Panel Trim |
| 360 | 250000720 | Torx Screw K50 X 16 |
| 450 | 293250242 | Rubber Cover |
| 500b | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 505 | 234062670 | Stainless Steel Flat Washer |
| 510 | 250000722 | Torx Screw M6 X 20 |
| 515 | 250200158 | Flat Washer M8 |
| 520 | 250000807 | Torx Truss Screw M6 X 25 |
| 525 | 250000722 | Torx Screw M6 X 20 |
| 530 | 233161464 | Hex. Elastic Flange Nut M6 |
| 535 | 234062670 | Stainless Steel Flat Washer |
| 540 | 234062670 | Stainless Steel Flat Washer |
| 545 | 250000720 | Torx Screw K50 X 16 |
| 560 | 707900719 | Split Grommet |
| 600b | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 610 | 250000868 | Torx Truss M6 X 50 |
| 615 | 250200162 | Flat Washer M6.6 X 22 |
| 630 | 250000807 | Torx Truss Screw M6 X 25 |
| 635 | 250200162 | Flat Washer M6.6 X 22 |
| 660 | 250000954 | Torx Screw M6 X 70 |
| 700b | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 710 | 234062670 | Stainless Steel Flat Washer |
| 715 | 250000722 | Torx Screw M6 X 20 |
| 720 | 250200162 | Flat Washer M6.6 X 22 |
| 725 | 250000868 | Torx Truss M6 X 50 |
| 875 | 250000722 | Torx Screw M6 X 20 |
| 880 | 233161464 | Hex. Elastic Flange Nut M6 |
| 980 | 250000807 | Torx Truss Screw M6 X 25 |
| 985 | 250200162 | Flat Washer M6.6 X 22 |
| 1030 | 707900851 | Sterring Column Trim |
| 1100 | 707900750 | LH Front Deflector |
| 1110 | 707900751 | RH Front Deflector |
| 1120 | 293150104 | Pop Rivet 3/16" |
| 1130 | 250000720 | Torx Screw K50 X 16 |
| 1300 | 707900389 | Exterior Cover |
| 1310 | 293150230 | Tuflok Plastic Rivet |
| 3100 | 707900806 | Floor Panel |
| 3150 | 293150230 | Tuflok Plastic Rivet |
| 3200 | 707900325 | Hose Support |
| 3210 | 293150230 | Tuflok Plastic Rivet |
| 3300 | 707900878 | Floor Panel This part replaces 707900807. |
| 3350 | 293150230 | Tuflok Plastic Rivet |
| 3440 | 293830005 | Rubber Bumper |
| 3810 | 293150230 | Tuflok Plastic Rivet |
| 4070 | 250000954 | Torx Screw M6 X 70 |
