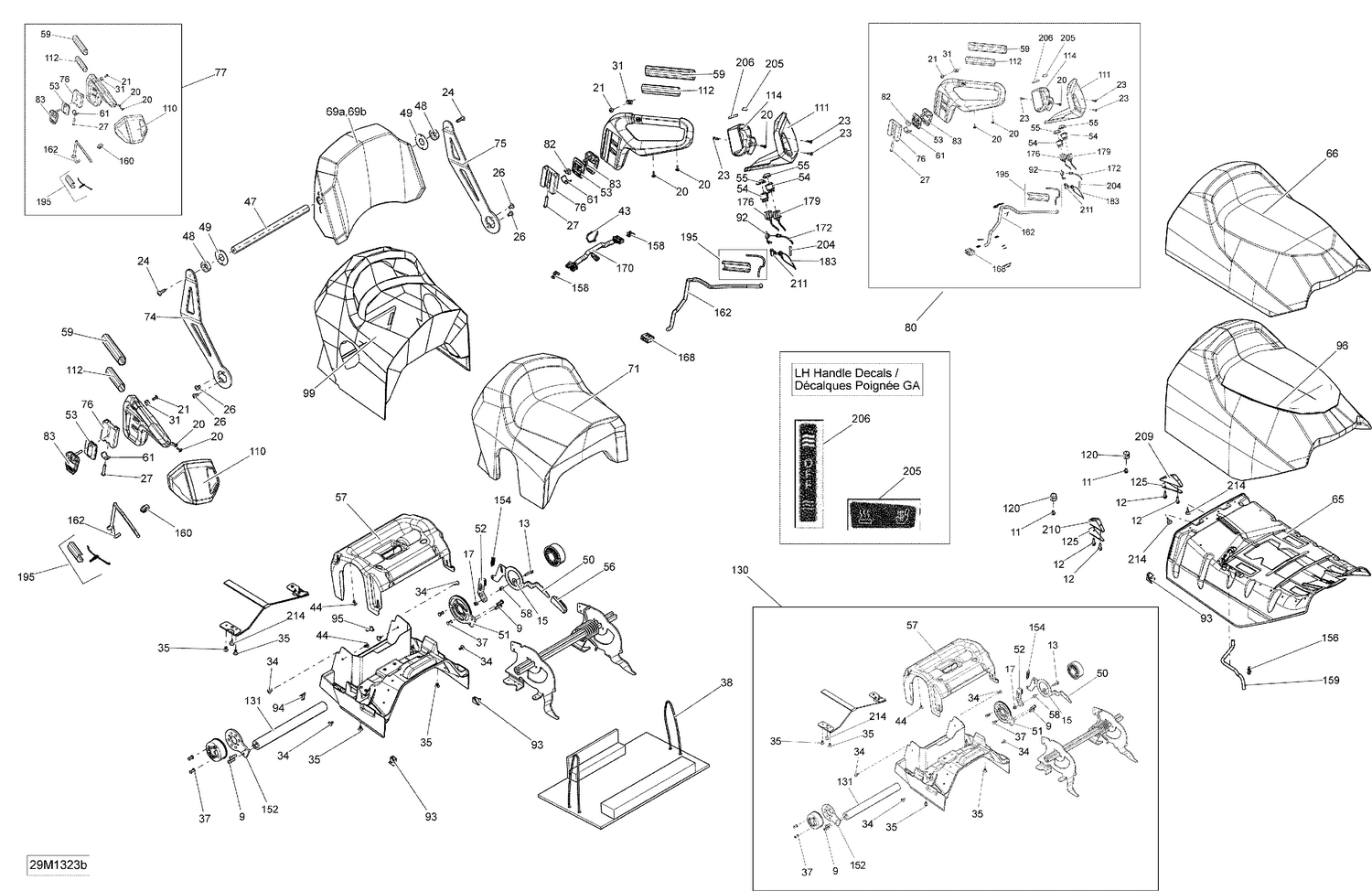

| Ref | Part Number | Description |
|---|
| 9 |
205982586 |
SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 11 |
207561044 |
Flange Screw M6 X 10, Scotch Grip |
| 12 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 13 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 15 |
224061201 |
Flat Washer |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 20 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
| 21 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 23 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 24 |
250000745 |
Hex Torx Truss M8 X30 This part replaces 250000197. |
| 26 |
250000746 |
Torx Truss Screw M8 X 16 This part replaces 250000198. |
| 27 |
250000220 |
SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership |
| 31 |
293100003 |
Nut Welded, M6 |
| 34 |
293150100 |
Pop Rivet 3/16" |
| 35 |
293150104 |
Pop Rivet 3/16" |
| 37 |
293150129 |
STEEL RIVET - Call your local BRP dealership |
| 38 |
293750008 |
Tie Wrap 368 mm |
| 43 |
414115200 |
Tie-Rap 180 mm |
| 44 |
414644300 |
Black, Dart |
| 47 |
510004377 |
Upper Backrest Axle |
| 48 |
510004378 |
Rubber Shim |
| 49 |
510004379 |
Washer |
| 51 |
510004391 |
Sprocket |
| 52 |
510006338 |
Adjustment Pivot This part replaces 510004392. |
| 53 |
510006602 |
Passenger Handle Trim This part replaces 510004405. |
| 54 |
510004413 |
Rocker Switch |
| 55 |
510004414 |
Switch Protector |
| 56 |
510004419 |
GRIP - Call your local BRP dealership |
| 57 |
510004423 |
Foam Support |
| 58 |
510004425 |
BUSHING - Call your local BRP dealership |
| 59 |
510004449 |
Handle Grip |
| 61 |
510004565 |
HANDLE CLAMP - Call your local BRP dealership |
| 65 |
510004775 |
Front Seat Base |
| 66 |
510004777 |
Front Seat Foam |
| 69a |
510004782 |
Backrest Foam |
| 71 |
510004791 |
Rear Seat Foam |
| 74 |
510005464 |
RH Arm |
| 75 |
510005465 |
LH Arm |
| 76 |
510004798 |
HANDLE LINK - Call your local BRP dealership |
| 77 |
510005854 |
RH HANDLE ASS'Y - Call your local BRP dealership This part replaces 510004800. |
| 80 |
510005856 |
LH HANDLE ASS'Y - Call your local BRP dealership This part replaces 510005697. |
| 82 |
510004804 |
Stopper Block |
| 83 |
510004806 |
Lever Lock Ass'y |
| 92 |
510004950 |
Cap |
| 94 |
510004964 |
RH REAR CORNER SEAT - Call your local BRP dealership |
| 95 |
510004965 |
LH REAR CORNER SEAT - Call your local BRP dealership |
| 110 |
510005009 |
RH Air Deflector |
| 111 |
510005010 |
LH Air Deflector |
| 112 |
510005814 |
Reinforcement Handle This part replaces 510005011. |
| 114 |
510005037 |
HOUSING SWITCH - Call your local BRP dealership |
| 120 |
510005095 |
SEAT STUD - Call your local BRP dealership |
| 125 |
510005216 |
SPACER - Call your local BRP dealership |
| 130 |
510005688 |
Seat Base Ass'y |
| 131 |
510005496 |
LINK TUBE - Call your local BRP dealership |
| 152 |
510005568 |
LINK PLATE - Call your local BRP dealership |
| 154 |
514053643 |
Spring |
| 156 |
515175220 |
Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 158 |
515175283 |
Housing Support |
| 159 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 160 |
515175494 |
Male Housing, 3 Circuits |
| 162 |
219704426 |
Was 515175506 Tubing |
| 168 |
515176033 |
Male Connector |
| 170 |
515176649 |
SEAT HARNESS - Call your local BRP dealership |
| 172 |
515177018 |
WIRING HARNESS_HEATED SOLE - Call your local BRP dealership |
| 176 |
515177409 |
PASSAGER HEATED SEAT HARNESS - Call your local BRP dealership |
| 179 |
515176697 |
Handle Harness |
| 183 |
515176698 |
Visor Connector Harness |
| 195 |
515176999 |
Heated Element |
| 204 |
516003612 |
VISOR AND LINER DECAL - Call your local BRP dealership |
| 205 |
516003613 |
HANDLE AND SEAT DECAL - Call your local BRP dealership |
| 206 |
516003809 |
INTENSITY SWITCH DECAL - Call your local BRP dealership |
| 209 |
518325709 |
LH Seat Anchor |
| 210 |
518325710 |
RH Seat Anchor |
| 211 |
572103300 |
Cap |
