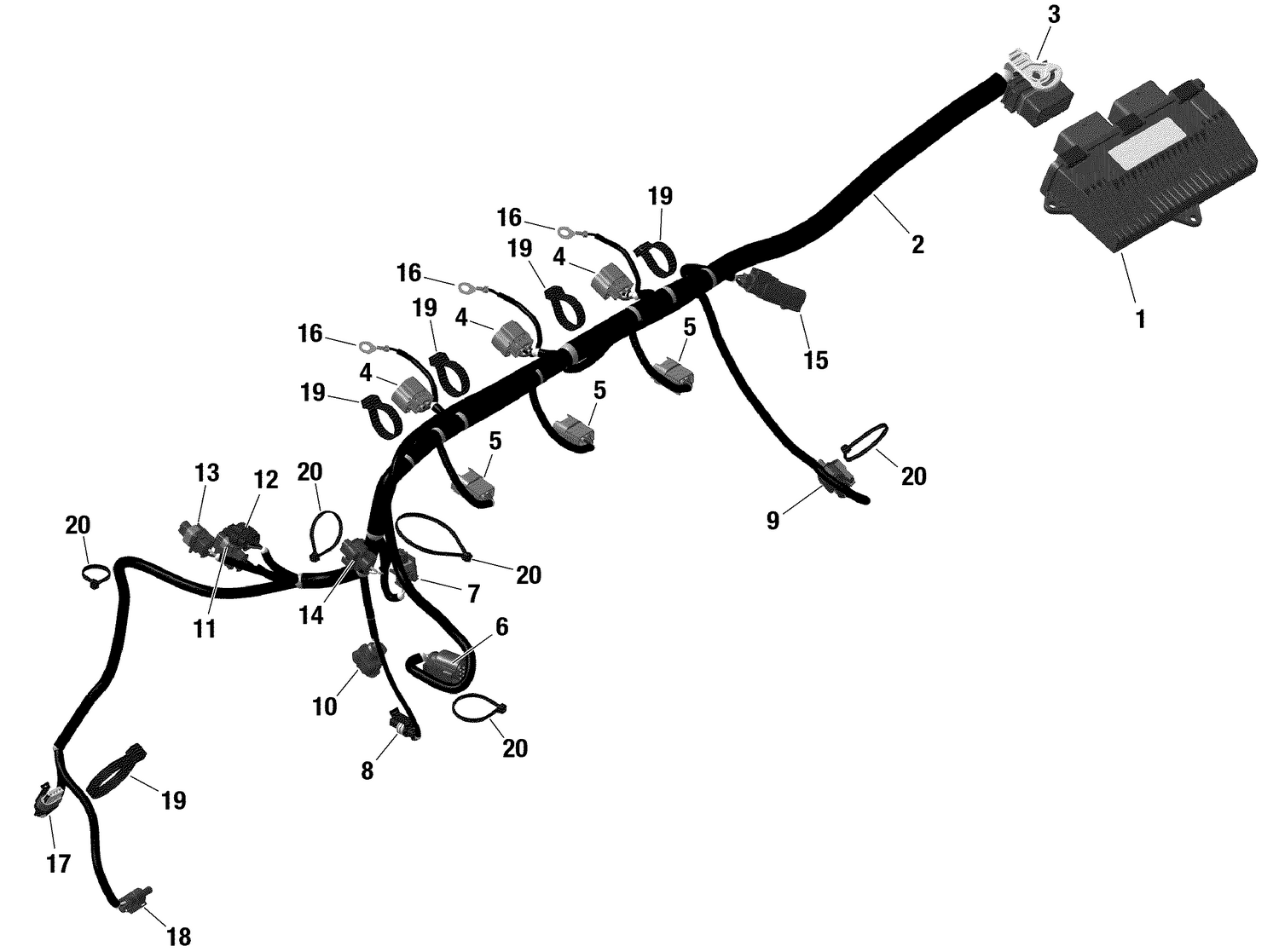

01- Rotax - Engine Harness And Electronic Module With IDF
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 296000435 | Connector 3 Positions |
| 5 | 515176129 | Female Housing |
| 6 | 515177406 | Female Housing |
| 7 | 278001005 | Male Housing, 2 Circuits |
| 8 | 278001012 | Male Housing, 1 Circuit |
| 9 | 515176410 | Male Connector |
| 11 | 278003197 | Housing |
| 13 | 278001005 | Male Housing, 2 Circuits |
| 16 | 278000992 | Open Barrel |
| 17 | 710001169 | Housing |
| 19 | 420866716 | Tie-Rap |
